| category | parameter | Specifications |
|---|---|---|

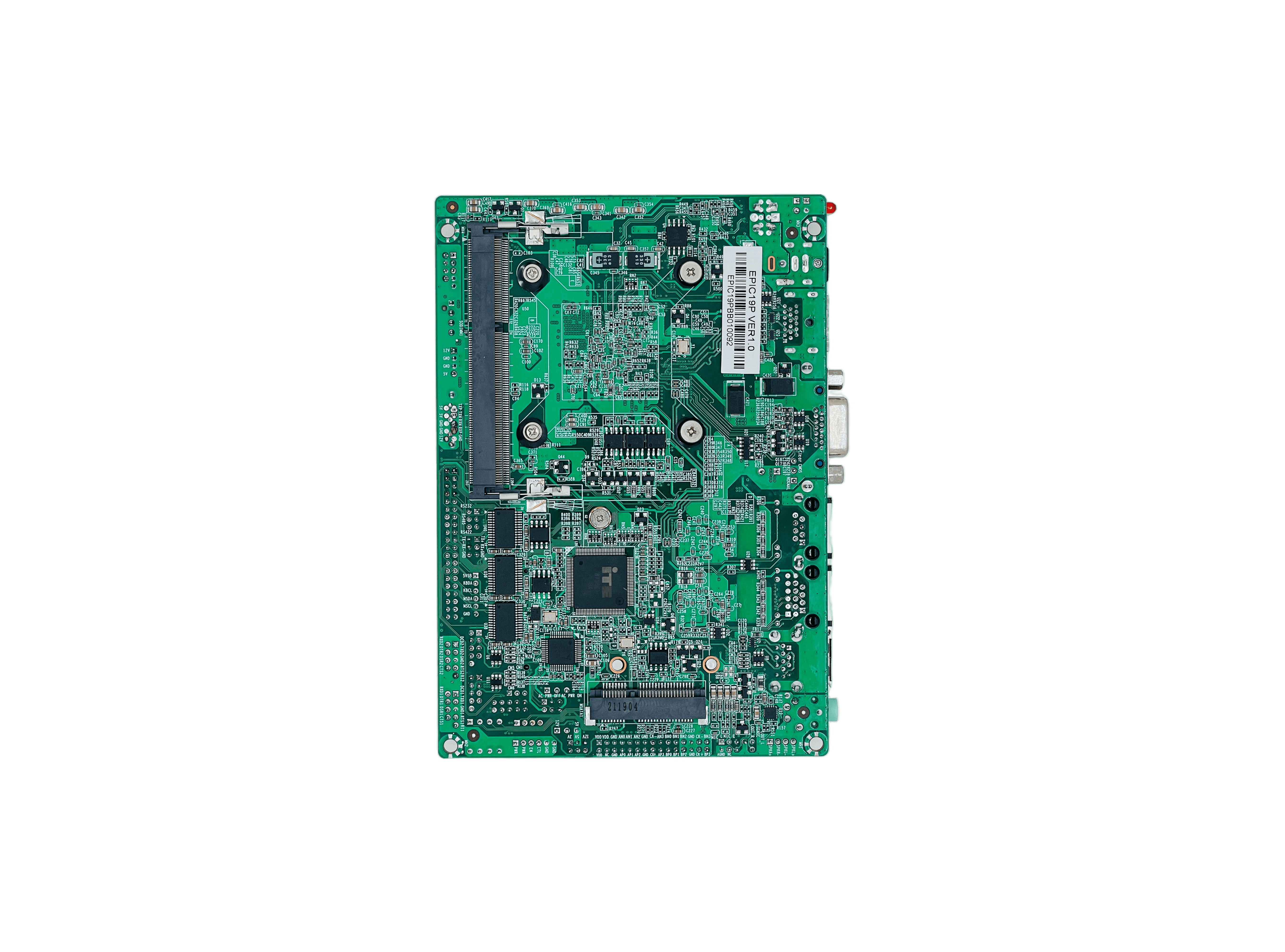

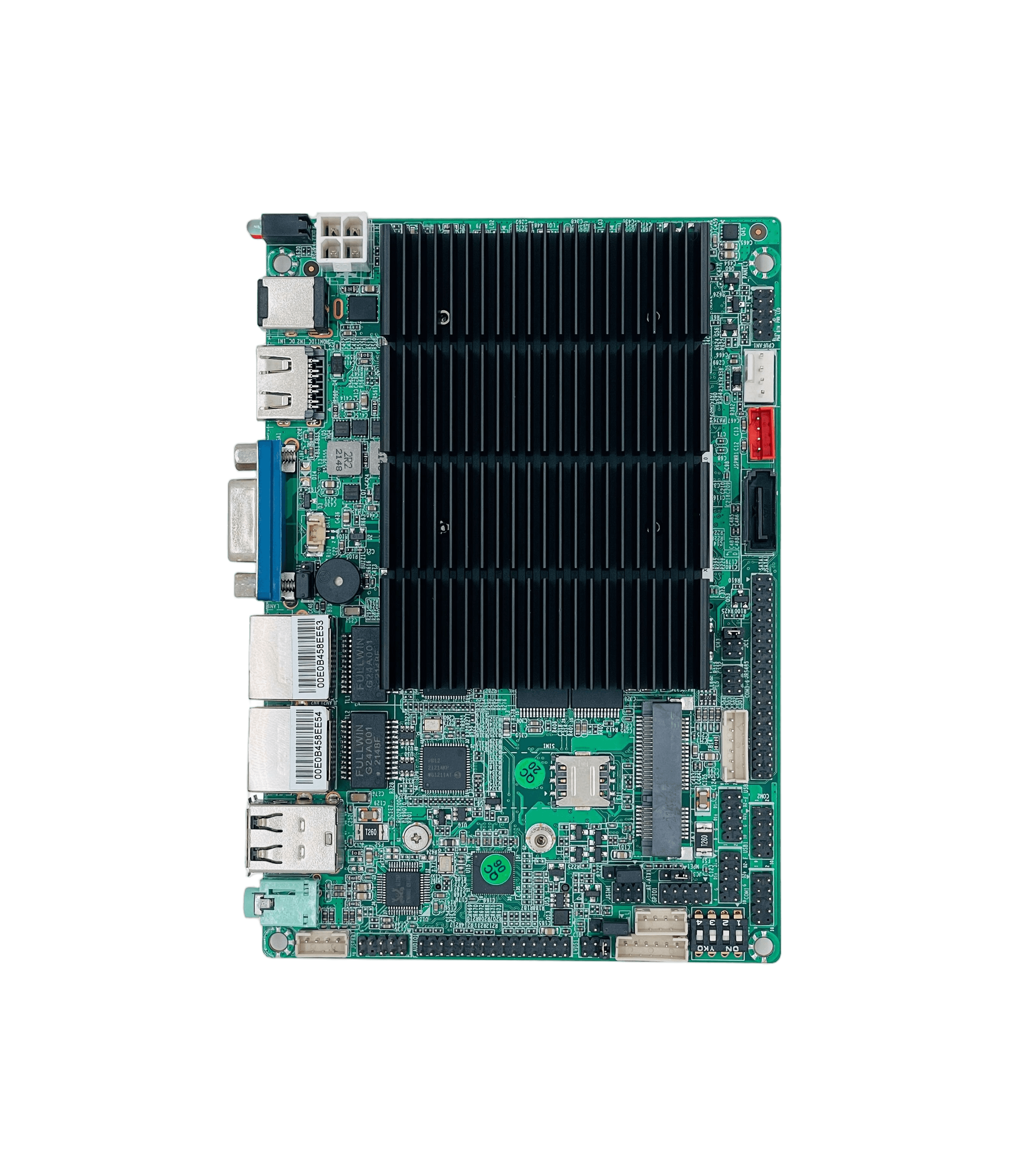

| model | Product model | ME35-J1900 VER1.0 |
| operating system | Support system | Windows 7/Windows 10/Linux |
| processor | CPU model | Integrated Intel® Celeron J1900/2.0G quad-core processor |
| compatibility | Compatible with Intel® Baytrail-I/M/D series CPUs | |
| Memory | Number of slots | 1*SO-DIMM memory slot, supports single channel |
| Specification capacity | 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB Integrated Intel® HD Graphics core graphics card | |
| show | display interface | 1*VGA interface, 1*HDMI1.2 interface, 1*LVDS interface |
| Display function | Support VGA, HDMI, LVDS synchronous/asynchronous dual display Default LVDS, optional eDP interface, please confirm in advance when placing an order | |
| network | wired network | 2* intel i211/i210 Gigabit network card, support wake-on-LAN/PXE |
| wireless extension | 1* Mini-PCIe slot (supports both half card and long card), supports WIFI/4G module | |
| storage | SATA interface | 1* SATA2.0 interface |
| mSATA interface | 1* mSATA2.0 slot | |
| Audio | audio controller | Onboard ALC662/ALC897/ALC262 6-channel high-fidelity audio controller |
| audio function | Support MIC/Line-out, power consumption 3W | |
| HDMI audio | 1* HDMI display interface | |
| VGA audio | 1* VGA display interface | |
| USB interface | Backplane USB | 1* USB3.0 interface, 1* USB 2.0 interface |
| Built-in USB | 4* USB 2.0 interface 2*5Pin | |
| Backplane I/O | network interface | 2* RJ-45 Gigabit network interface |
| audio interface | 1* Line out interface (green) | |
| indicator light | 1* Keyboard/power indicator light | |
| Power interface | 1* 12V DC power input interface | |
| Built-in I/O | LVDS interface | 1* LVDS interface 2*16pin, supports dual channel 24bit Default LVDS, optional eDP interface, please confirm in advance when placing an order |
| Screen backlight interface | 1* Screen backlight power supply interface 1*6pin | |
| Front audio | 1* Front audio interface 2*5pin | |
| Power amplifier interface | 1* Power amplifier interface 1*4pin | |
| SIM interface | 1* SIM interface 2*3Pin | |
| serial port | 6* COM interface (COM2/COM3 optionally supports RS485) | |
| PS2 interface | 1* PS2 interface 1*6Pin | |
| Keyboard powered | 1* Keyboard power supply interface 1*4Pin | |
| Front panel controls | 1* Front panel switch button and indicator light interface 2*5Pin | |
| Built-in power supply | 1* 2pin DC 12V power interface | |
| Fan interface | Thermal design | Fanless cooling design, 1*4pin CPU fan interface |
| GPIO | Digital I/O | Supports 4 input and output GPIOs |
| BIOS | Firmware storage | 64Mb Flash ROM |
| watchdog | hardware reset | Support hardware reset function (level 256, 0~255 seconds) |
| Power supply type | Power supply method | Powered by DC 12V motherboard hard source |
| environment | Storage temperature | -20℃～70℃ |
| Working humidity | 5%-95% relative humidity, no condensation | |
| working temperature | 60℃～-20℃ | |
| size | size | 146mm x 102mm |
Optimized solutions for high-reliability industrial automation and control systems.
Powerful computing performance to support AI-driven quality inspection and recognition.
Low-latency processing at the edge for IoT data aggregation and real-time analysis.
