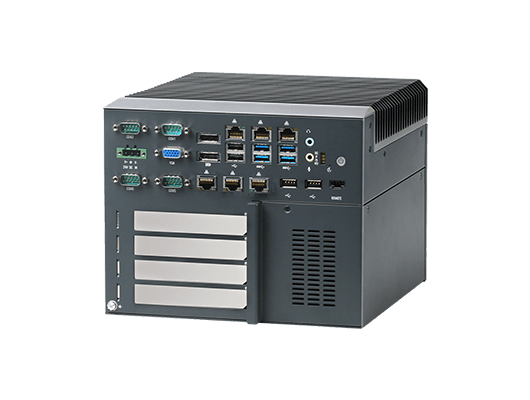

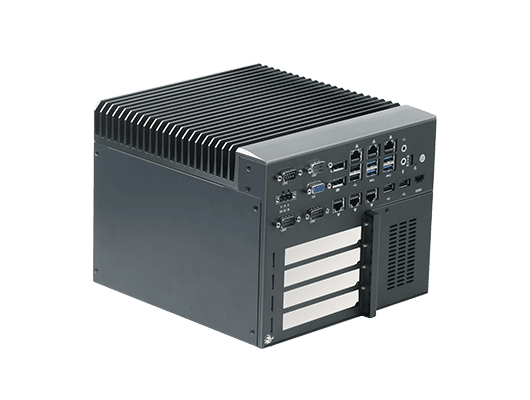

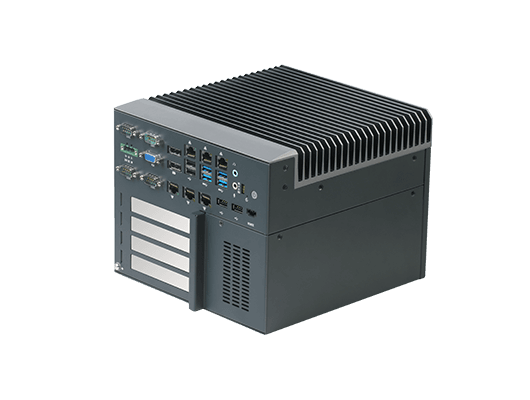

Name: YX-E522 series
Brand: Yantronic
Availability: InStock

Product Details

Specifications

Specs	Item	E522
Processor System	CPU	Intel® 6th/7th/8th/9th Gen Processors with LGA1151
	Chipset	H110
	BIOS	AMI 8MB UEFI
Memory	Sockets	Dual channel 260-pin DDR4SO-DIMM
Memory	Capacity	Max. 32GB

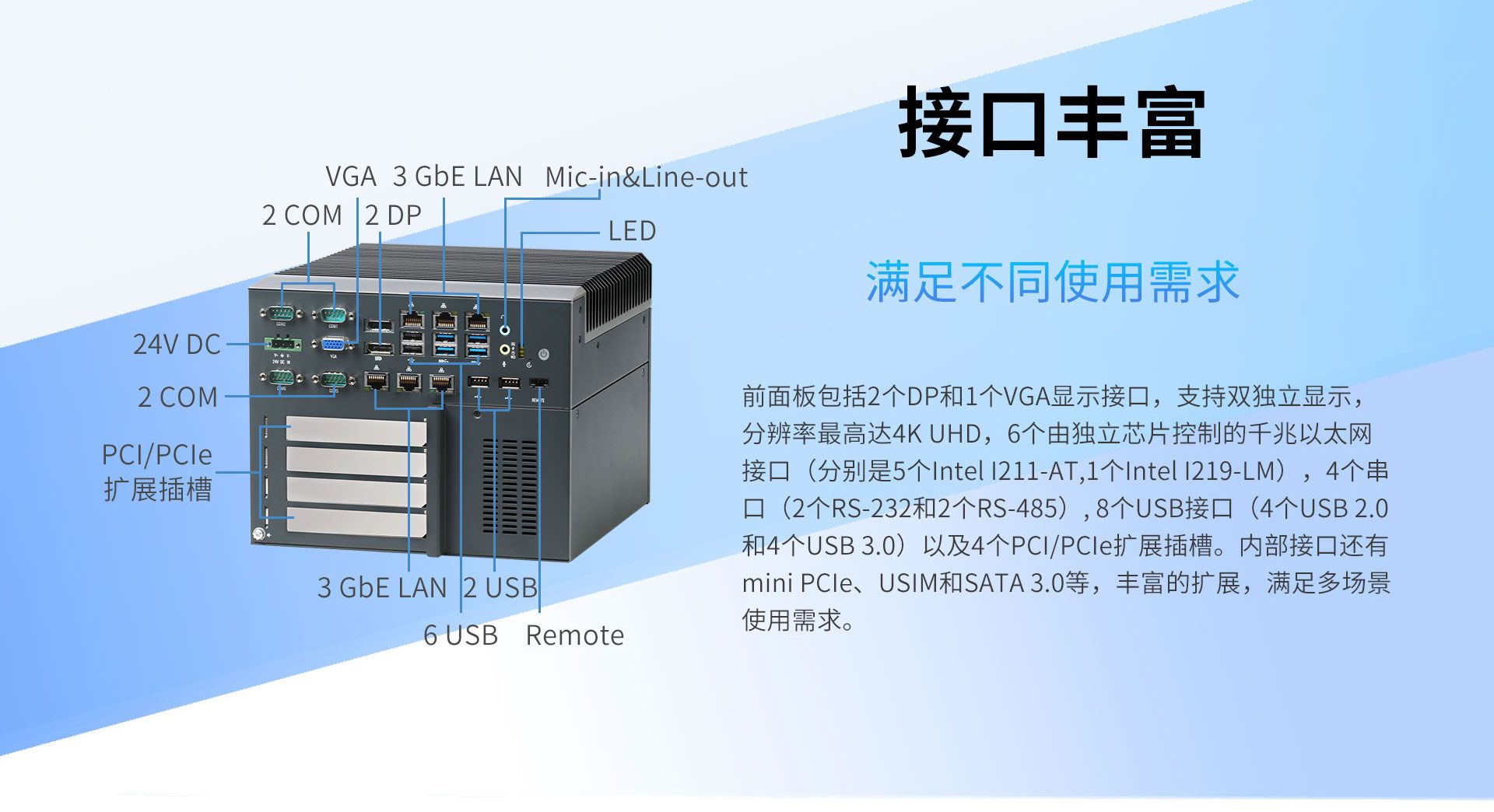

Display	DP	2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz
	VGA	1 x VGA, Max. 1920 x 1080@60Hz
	Dual Display	Yes, DP + DP or DP + VGA
Audio	Controller	Realtek ALC662, High Definition Audio. Mic-in, Line-out
Ethernet	LAN	5 x Intel® i211-AT GbE, 1 x Intel® i219-LM GbE
Peripheral Interface	USB	4 x USB2.0, 4 x USB3.0
	COM	2 x RS-232/RS-485, 2 x RS232
	LED	4 x LED(SATA/Standby/Memory/Watchdog)
	Reset	1
	Power button	1
Storage	SATA3.0	1 x SATA 3.0 for 2.5 inches storages
Storage	m.2	1 x m.2
Expansion	Mini-PCIe	1 x full-size mini-PCIe, Support WLAN/WWAN module
	USIM	1 x USIM, Support 3G/4G LTE
	Internal USB	1 x USB 2.0 internal
	PCIe/PCI	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2, 2 x PCI
Watchdog	Output/Interval	Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec
Power Supply	DC Input	24V DC
OS	Microsoft Windows	Windows 7(Intel® 6th Gen CPU Only)，Windows 10 64Bit
OS	Linux	Yes
Physical Characteristics	Construction	Aluminium Alloy
	Mounting	Desktop/Wall Mounting

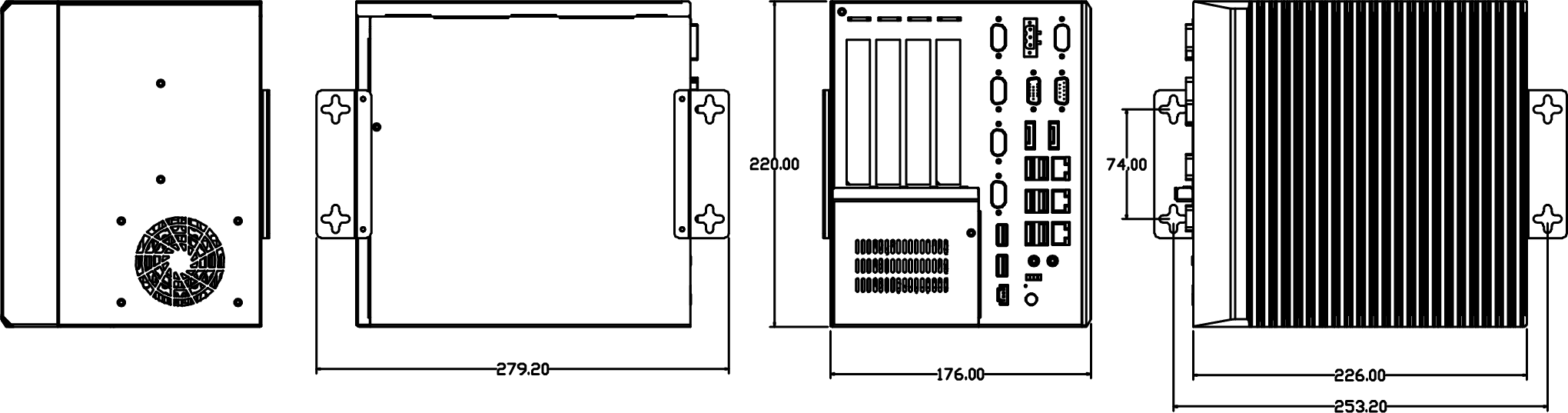

	Dimensions	220 x 226 x 176mm (LxWxH)
	Weight	4.3 Kg
Environment	Operating Temperature	0°C~50°C, airflow 0.7m / s
	Storage Temperature	-40°C~80°C
	Relative Humidity	10~95% @ 40°C ( Non-Condensing )
	Vibration During Operation	With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis
	Shock During Operation	With SSD:30 G, IEC 60068-2-27, half sine, 11m duration
	ESD	Contact +/-4 KV, Air +/-8 KV
	EMC	CE/FCC Class B
