产品详情
技术规格
| Specs | Item | E500A |
|---|---|---|
| Processor System | CPU | 10th generation Intel®Core™ i3/ i5/ i7 Processors |
| Chipset | H420E/ Q470 | |
| Socket | LGA1200 | |
| TDP | Max 65W | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | 2 x 260 PIN DDR4 SO-DIMM |
| Capacity | Max 64GB | |
| Graphics | Controller | Intel UHD Graphics supports DirectX12, OpenGL 4.5 and OpenCL 2.1 |
| Graphic Features | 3D Acceleration: Direct3D 2015, OpenGL4.5, OpenCL2.1HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8/10-bit),VP8, MPEG2,MJPEG,VC-1HW Encode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8-bit),VP8, MPEG2,MJPEG | |
| External I/O | DP | 1 x DP1.4 resolution up to 4096x2304@60Hz |
| HDMI | 1 x HDMI1.4 resolution up to 4096 x 2160@30 Hz | |
| VGA | 1 x VGA resolution up to 1920 x 1200@60Hz | |
| LAN | 2 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN | |
| Serial Ports | 1 x RS-232/422/485, 1 x RS-232 | |
| USB 3.0 | 4 (H420E)/ 6 (Q470) | |
| USB 2.0 | 2 (H420E)/ 0 (Q470) | |
| Audio | 1 x Line out, 1 x Mic in | |
| Remote | 1 x 2 PIN Remote Switch | |
| Power Input Connector | 1 x 3 PIN Power Input Connector | |
| LED & Switch | LED | HDD, Memory, User-defined 1, User-defined 2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset Button | |
| Internal Connectors | M.2 E-Key | 1 x M.2 2230 support Wi-Fi (Q470: CNVI&PCIe protocol, H420E: PCIe protocol) |
| M.2 B-Key | 1 x M.2 3052 support 4G/5G | |
| M.2 B-Key | 2 x M.2 2280 SATA3.0 | |
| SIM | 1 x Micro SIM | |
| Power Supply | Power Input | 24V DC Input |
| Power Management | AT/ATX | |
| Max. Consumption | 150W | |
| Others | Watchdog | 65536 level, 0~65535 sec |
| TPM | TPM2.0 (Optional) | |
| Physical Characteristics | Construction | Aluminium Alloy |

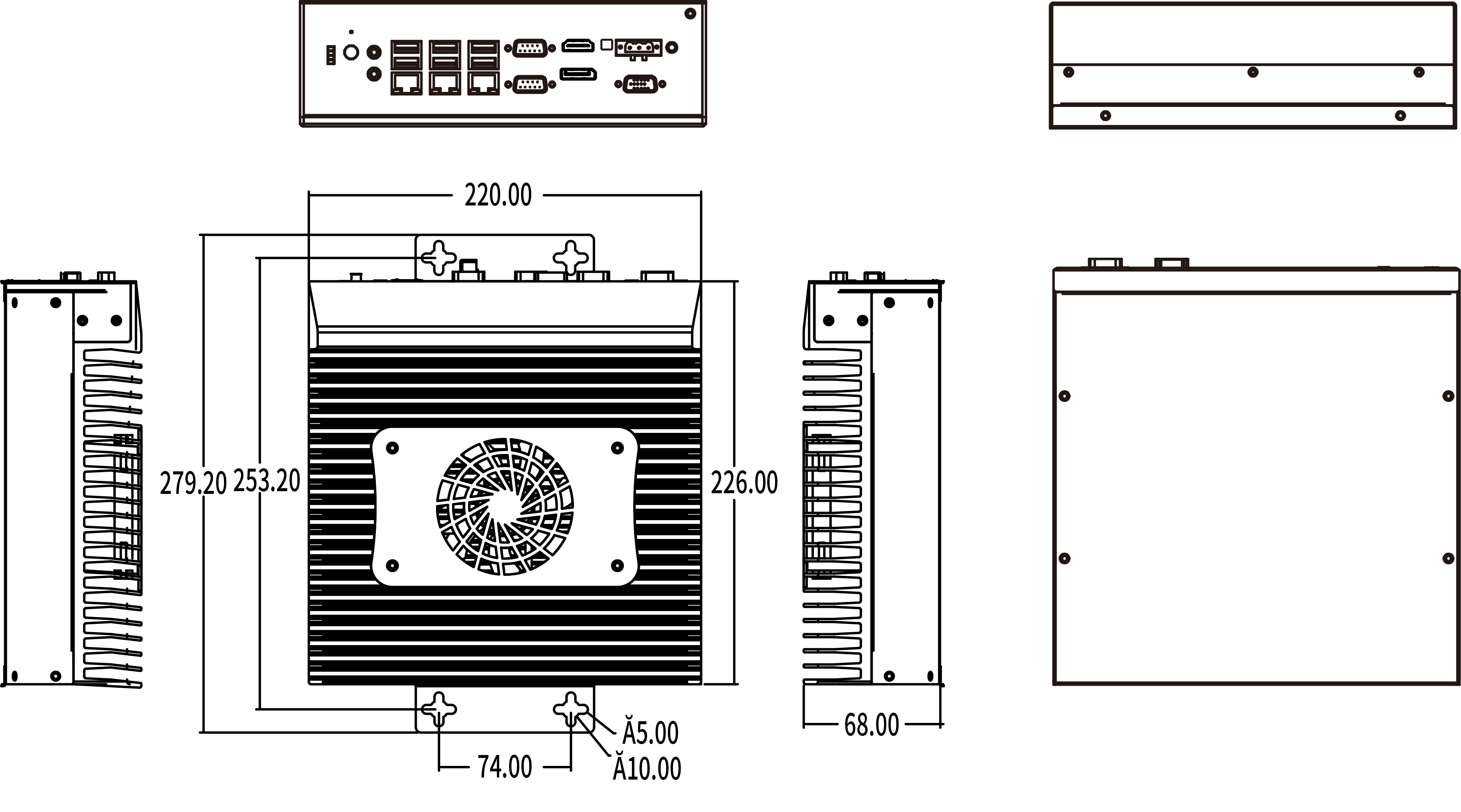

| Dimension | 220 x 226 x 68mm (L x W x H) | |
| Weight | 3.0 kg | |
| Installation | Wall Mounting | |
| Environment | Operating Temperature | 0°C~50°C (32~122℉) |
| Storage Temperature | -40°C~85°C （-40~185℉） | |
| Operating Humidity | 95%@40°C(Non-Condensing) | |
| Storage Humidity | 95% @60°C ( Non-Condensing ) | |
| Certification | EMC | CE, FCC |
| Operation System | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
应用场景
