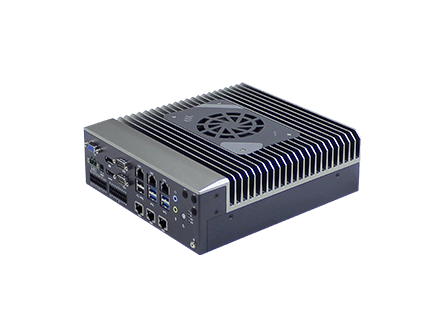

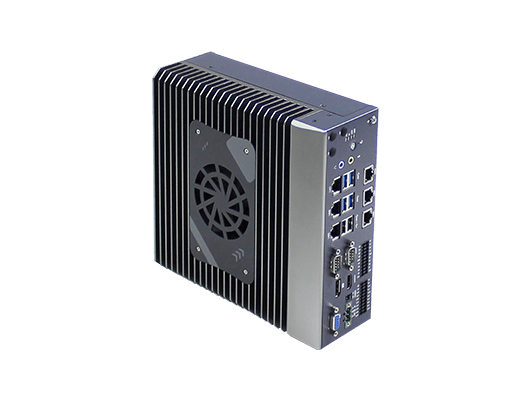

Name: E510A系列
Brand: Yantronic
Availability: InStock

产品详情

技术规格

规格参数_1

Specs	Item	E510A
Processor System	CPU	10th generation Intel®Core™ i3/ i5/ i7 Processors
	Chipset	H420E/ Q470
	Socket	LGA1200
	TDP	Max 65W
	BIOS	AMI 128Mbit SPI Flash
Memory	Technology	2 x 260 PIN DDR4 SO-DIMM
Memory	Capacity	Max 64GB
Graphics	Controller	Intel UHD Graphics supports DirectX12, OpenGL 4.5 and OpenCL 2.1
Graphics	Graphic Features	3D Acceleration: Direct3D 2015, OpenGL4.5, OpenCL2.1HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8/10-bit),VP8, MPEG2,MJPEG,VC-1HW Encode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8-bit),VP8, MPEG2,MJPEG

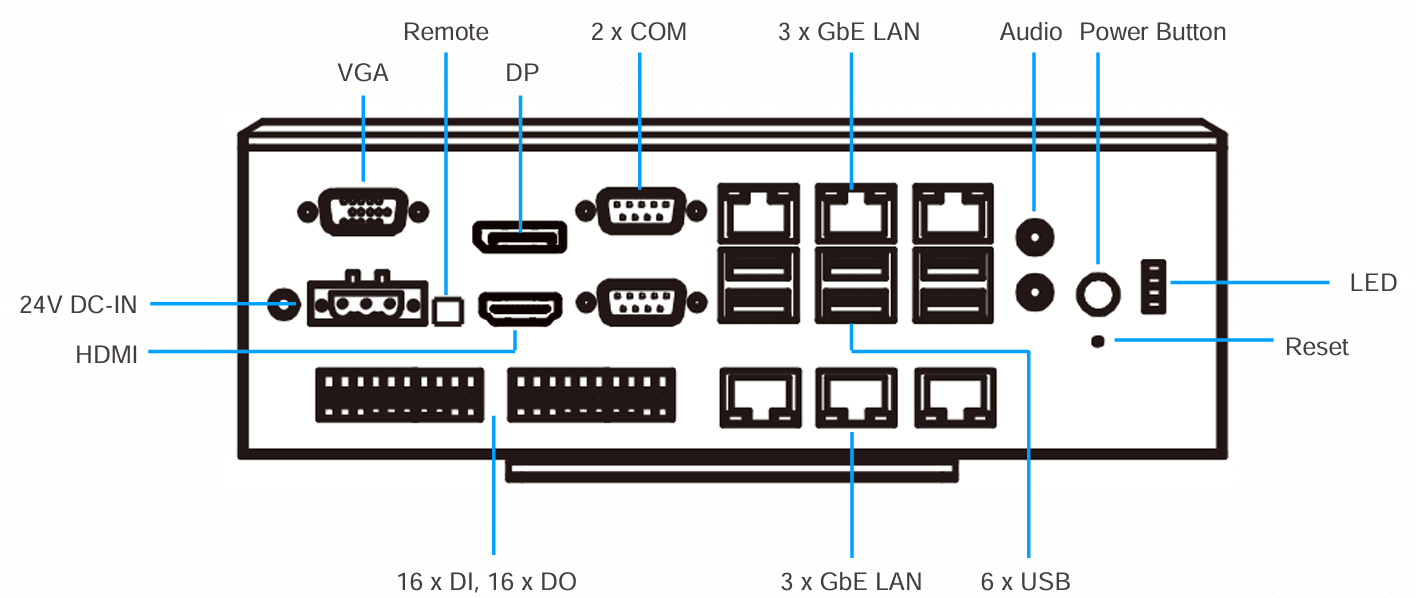

External I/O	DP	1 x DP1.4 resolution up to 4096x2304@60Hz
	HDMI	1 x HDMI1.4 resolution up to 4096 x 2160@30 Hz
	VGA	1 x VGA resolution up to 1920 x 1200@60Hz
	LAN	5 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN
	Serial Ports	1 x RS-232/422/485, 1 x RS-232
	USB 3.0	4 (H420E)/ 6 (Q470)
	USB 2.0	2 (H420E)/ 0 (Q470)
	DI	16 x DI
	DO	16 x DO
	Audio	1 x Line out, 1 x Mic in
	Remote	1 x 2 PIN Remote Switch
	Power Input Connector	1 x 3 PIN Power Input Connector
LED & Switch	LED	HDD, Memory, User-defined 1, User-defined 2
	Power Button	1 x Power Button
	Reset	1 x Reset Button
Internal Connectors	USB2.0	1 x Internal USB2.0 support Dongle
	M.2 E-Key	1 x M.2 2230 support Wi-Fi (Q470: CNVI&PCIe protocol, H420E: PCIe protocol)
	M.2 B-Key	1 x M.2 3052 support 4G/5G
	M.2 B-Key	2 x M.2 2280 SATA3.0
	SIM	1 x Micro SIM
Power Supply	Power Input	24V DC Input
	Power Management	AT/ATX
	Max. Consumption	150W
Others	Watchdog	65536 level, 0~65535 sec
Others	TPM	TPM2.0 (Optional)
Physical Characteristics	Construction	Aluminium Alloy
	Dimension	220 x 226 x 75mm (L x W x H)
	Weight	3.4 kg
	Installation	Wall Mounting
Environment	Operating Temperature	0°C~50°C (32~122℉)
	Storage Temperature	-40°C~85°C (-40~185℉)
	Operating Humidity	95%@40°C (Non-Condensing)
	Storage Humidity	95% @60°C (Non-Condensing)
Certification	EMC	CE, FCC
Operation System	OS	Windows 10/11, centos 8, ubuntu 20.04/22.04
