产品详情
技术规格
规格参数_1
| Specs | Item | E201 Series |
|---|---|---|

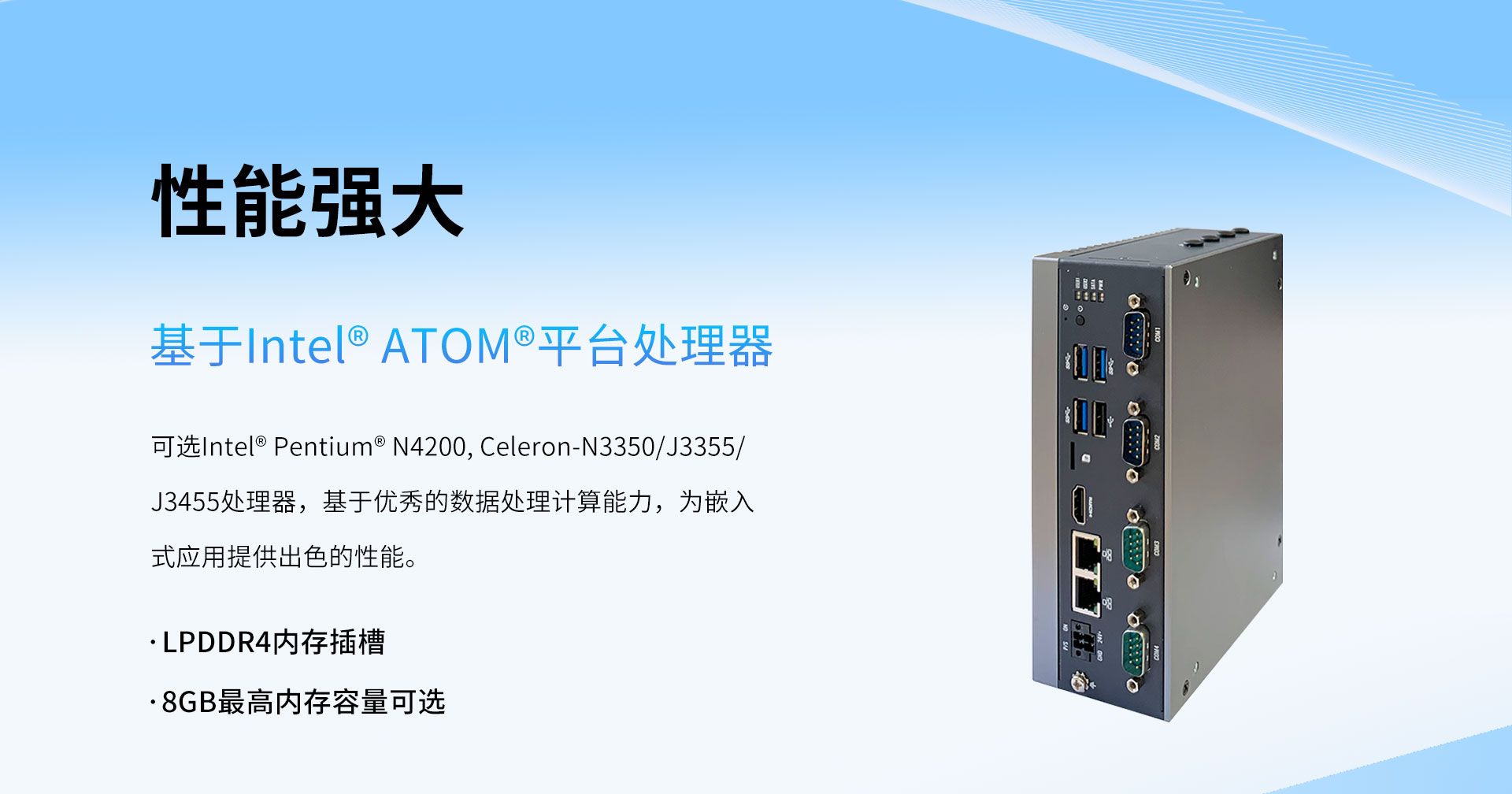

| Processor System | CPU | Intel® Pentium-N4200, Celeron-N3350/J3355/ J3455 |
| BIOS | AMI UEFI BIOS at 64 Mb | |
| Memory | Sockets | LPDDR4 |
| Capacity | Max. 8 GB | |
| Graphics | Controller | Intel Gen9 Graphic engine |
| Features | DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: H.264, MPEG2, VC-1, WMV9, H.265/HEVC, VP8, JPEG/MJPEG | |

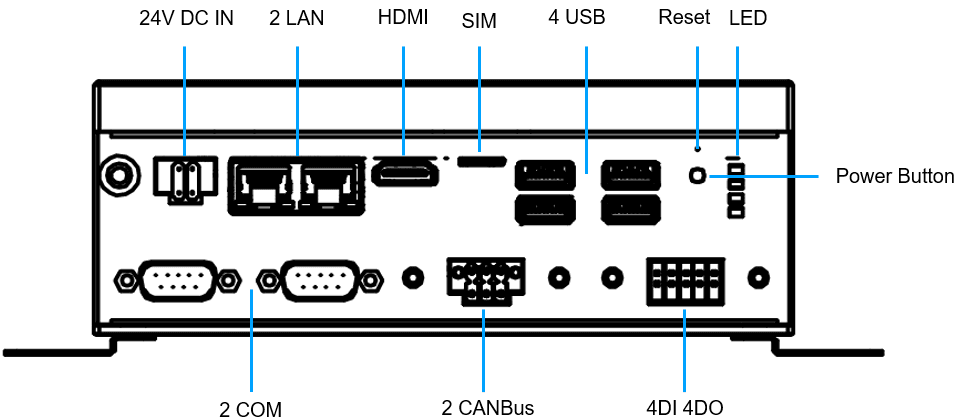

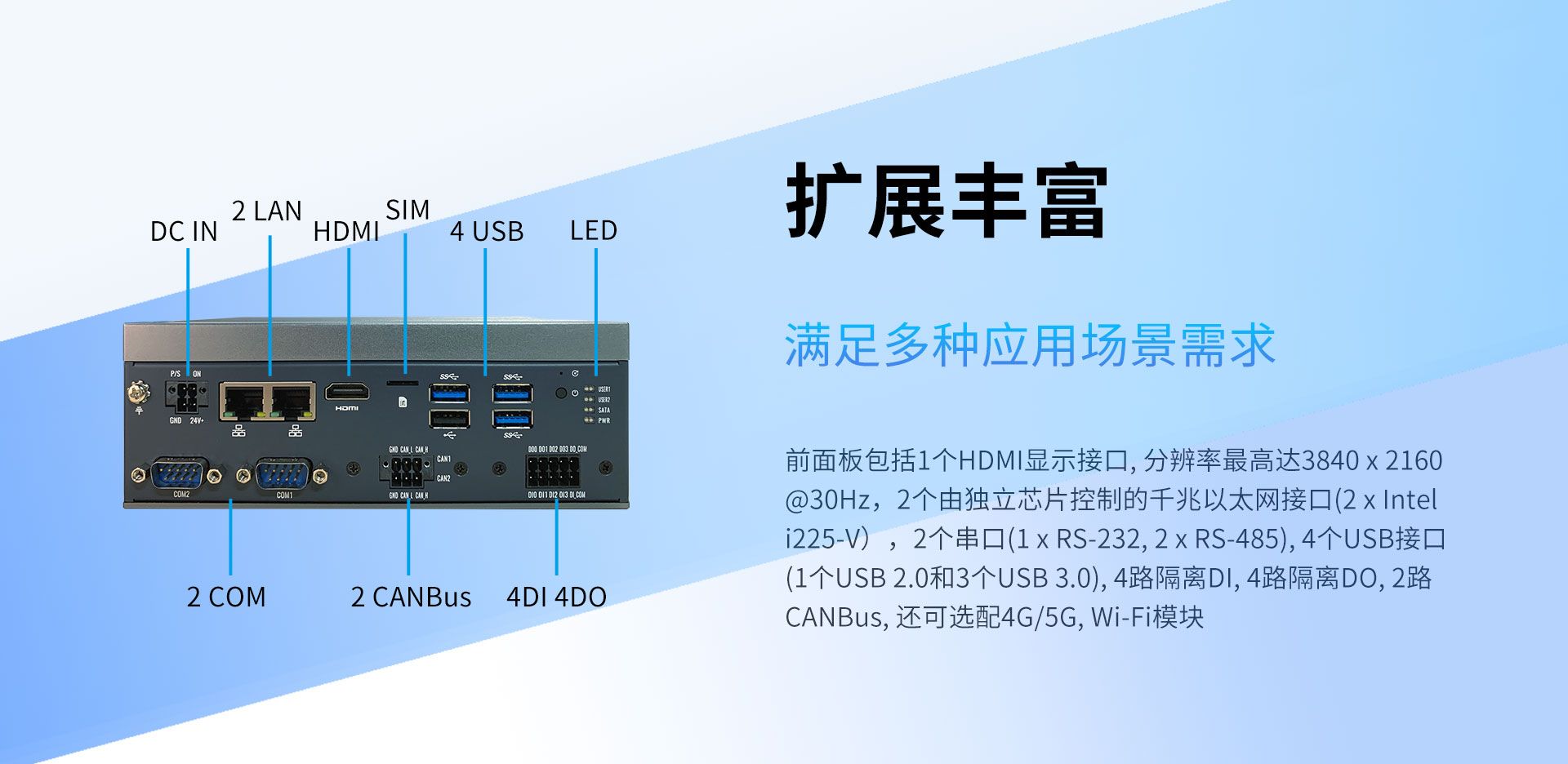

| External IO | HDMI | 1 x HDMI, resolution up to 3840 x 2160 @ 30Hz |
| Ethernet | 2 x Intel i225-V 2.5GbE LAN | |
| COM | 1 x RS-232, 1 x RS-485 | |
| USB | 3x USB3.0, 1 x USB2.0 | |
| SIM | 1 x Micro SIM | |
| CAN | 2 x CANBus | |
| DIO | 4 x DI, 4 x DO | |
| Power DC Jack | Phoenix 4pin terminal | |
| Expansion | M.2 E-Key | 1 x M.2 2242Support Wi-Fi |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | |
| SATA 3.0 | 1 | |
| LED | LED Lights | Power, SATA, USER1, USER2 |
| Power | Power Type | 24V/2.5ADC Input |
| Others | Watchdog | 255-level timer, resettable |
| OS | Operation system | Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04 |
| Physical Characteristics | Dimensions | 172 x 125 x 62.5 mm |
| Construction | AluminiumAlloy | |

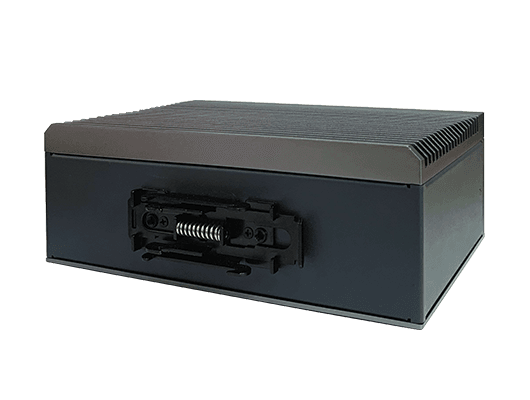

| Mounting | Wall Mounting/ Din Rail Clip | |
| Certification | EMC | CE, FCC |
| Environment | Operating Temperature | 0 ~ 60 °C(32~140°F) |
| Storage Temperature | -40°C ~ 85°C(-40~185°F) | |
| Relative Humidity (Operating) | 95% @ 40 °C (non-condensing) | |
| Relative Humidity(Storage) | 95% @ 60 °C (non-condensing) |
应用场景
