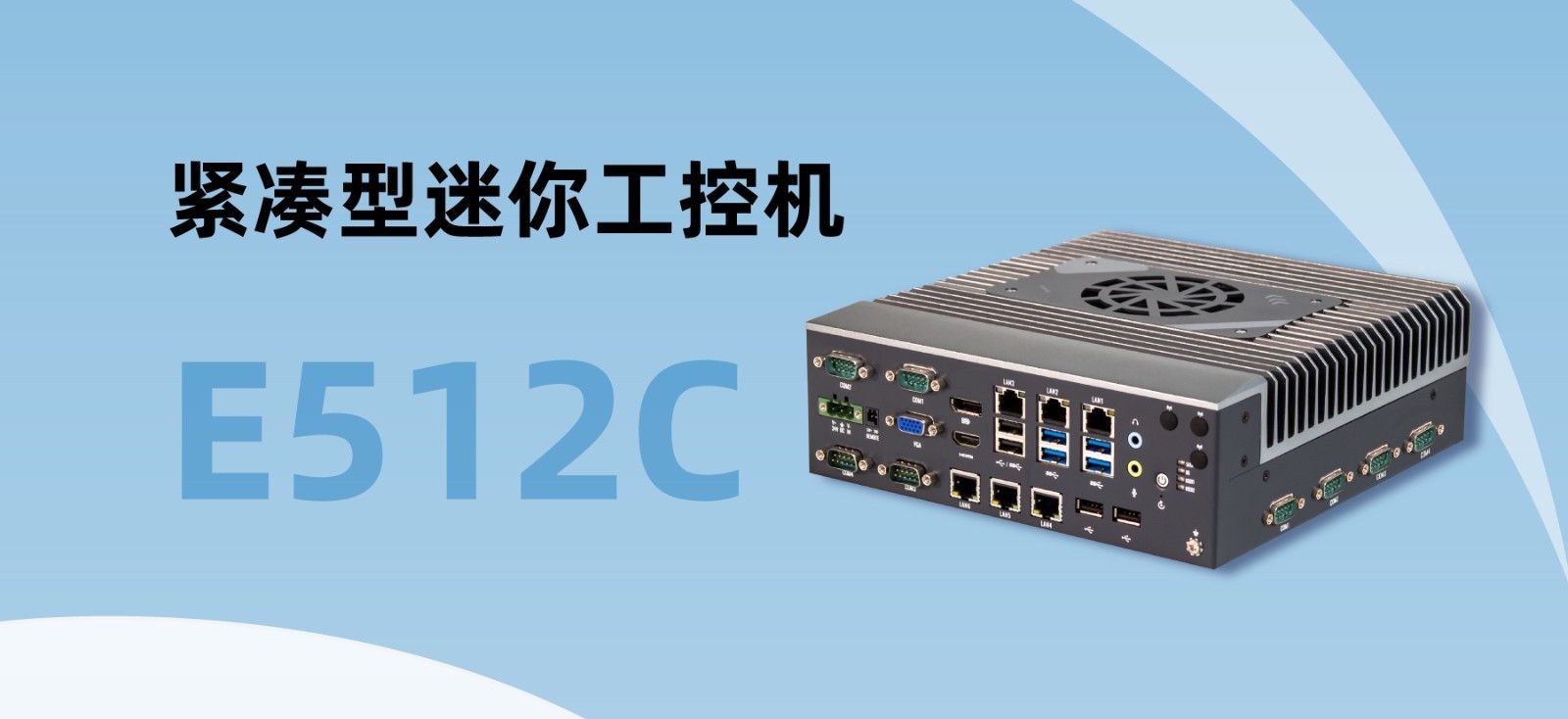

Name: E512系列
Brand: Yantronic
Availability: InStock

产品详情

技术规格

Specs	Item	E512
Processor System	CPU	Intel® 6th/7th/8th/9th Gen Processors with LGA1151
	Chipset	H110
	BIOS	AMI 8MB UEFI
Memory	Sockets	2xDDR4 SO-DIMM
Memory	Capacity	4GB (Max. 32GB)
Display	DP	2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz
	VGA	1 x VGA, Max. 1920 x 1080@60Hz
	Dual Display	Yes, DP + DP or DP + VGA
Audio	I/O	1xMic-in, 1xLine-out

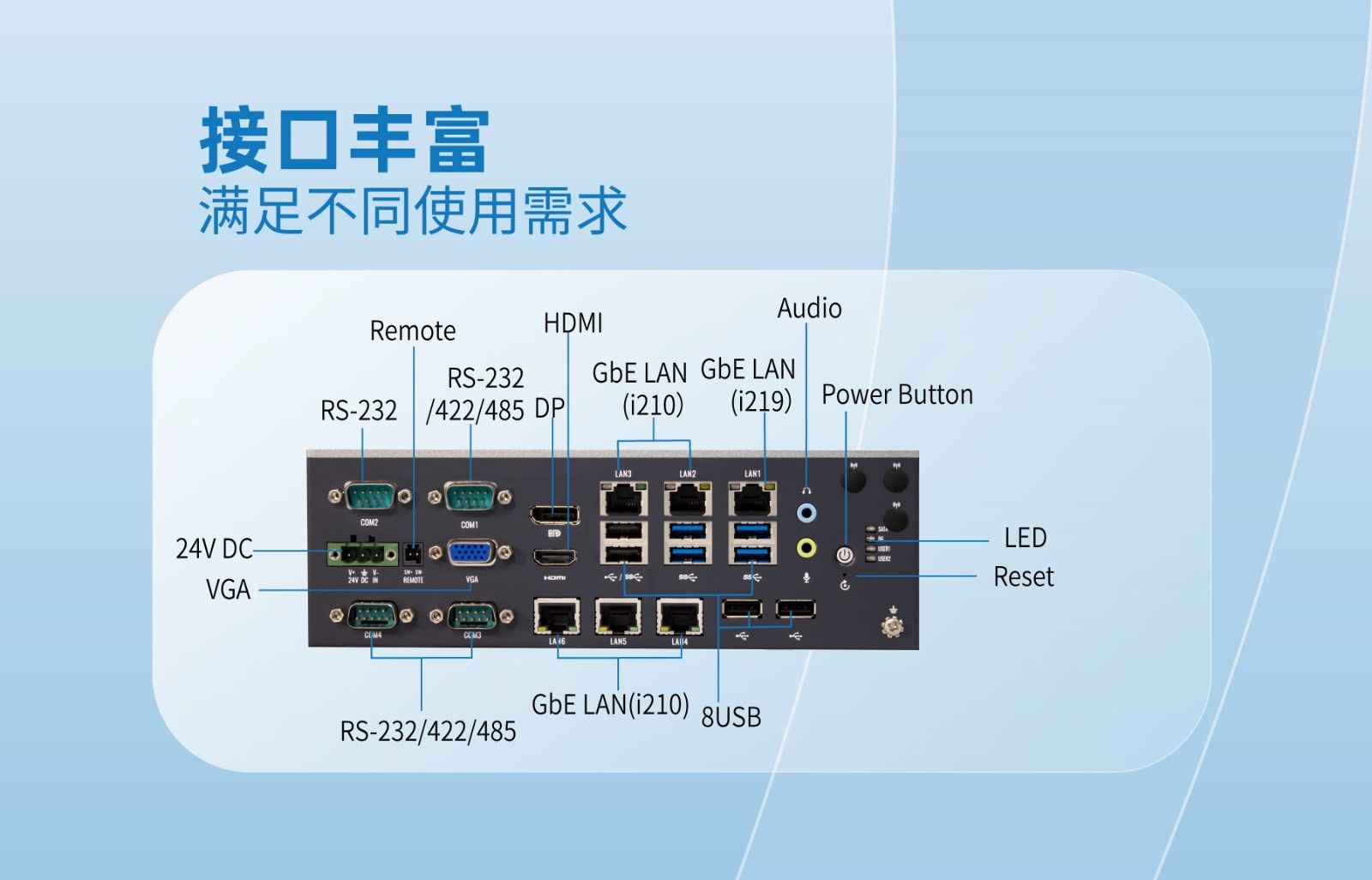

Ethernet	LAN	5 x Intel® i211-AT / i210-AT GbE
Ethernet	LAN	1 x Intel® i219-LM GbE

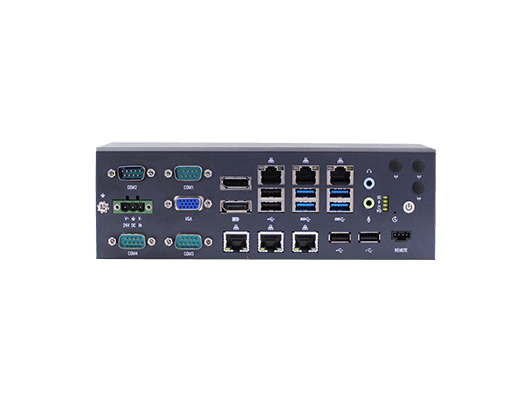

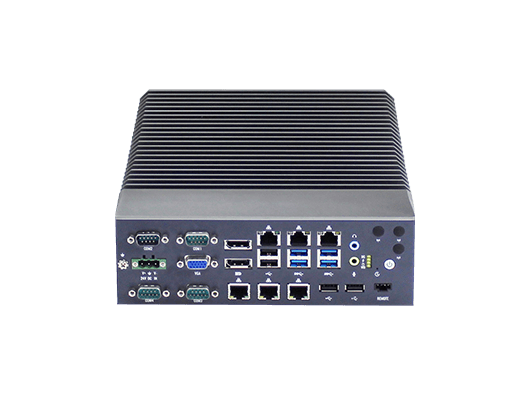

I/O Interface	USB	4xUSB2.0, 4xUSB3.0
	COM	2 x RS232, 2 x RS485
	Remote	4-pin remote power on/off switch and LED on the front
Expansion	Mini-PCIe	1 x full-size mini-PCIe, Support WLAN/WWAN module
Expansion	USIM	1xUSIM, Support 3G/4G LTE
Storage	M.2	1 x M.2
Storage	SATA3.0	1 x SATA3.0, For 2.5" SATA storage device
Watchdog	Output/Interval	Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec
Power Supply	DC input	24V DC IN
OS	MicrosoftWindows	Windows 7(Intel® 6th Gen CPU only), Windows 10 64Bit
OS	Linux	Yes

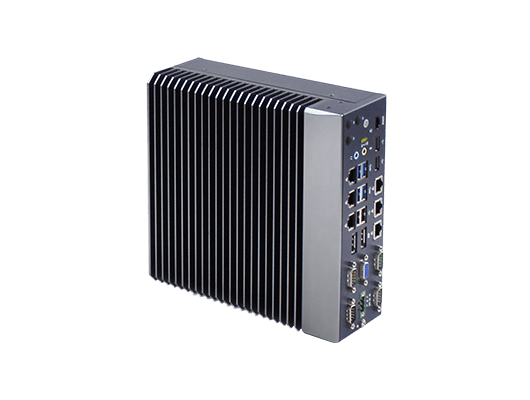

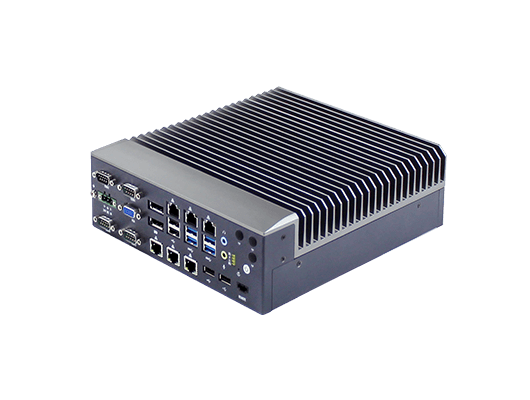

Physical Characteristics	Construction	Aluminium Alloy
	Mounting	Wall Mounting

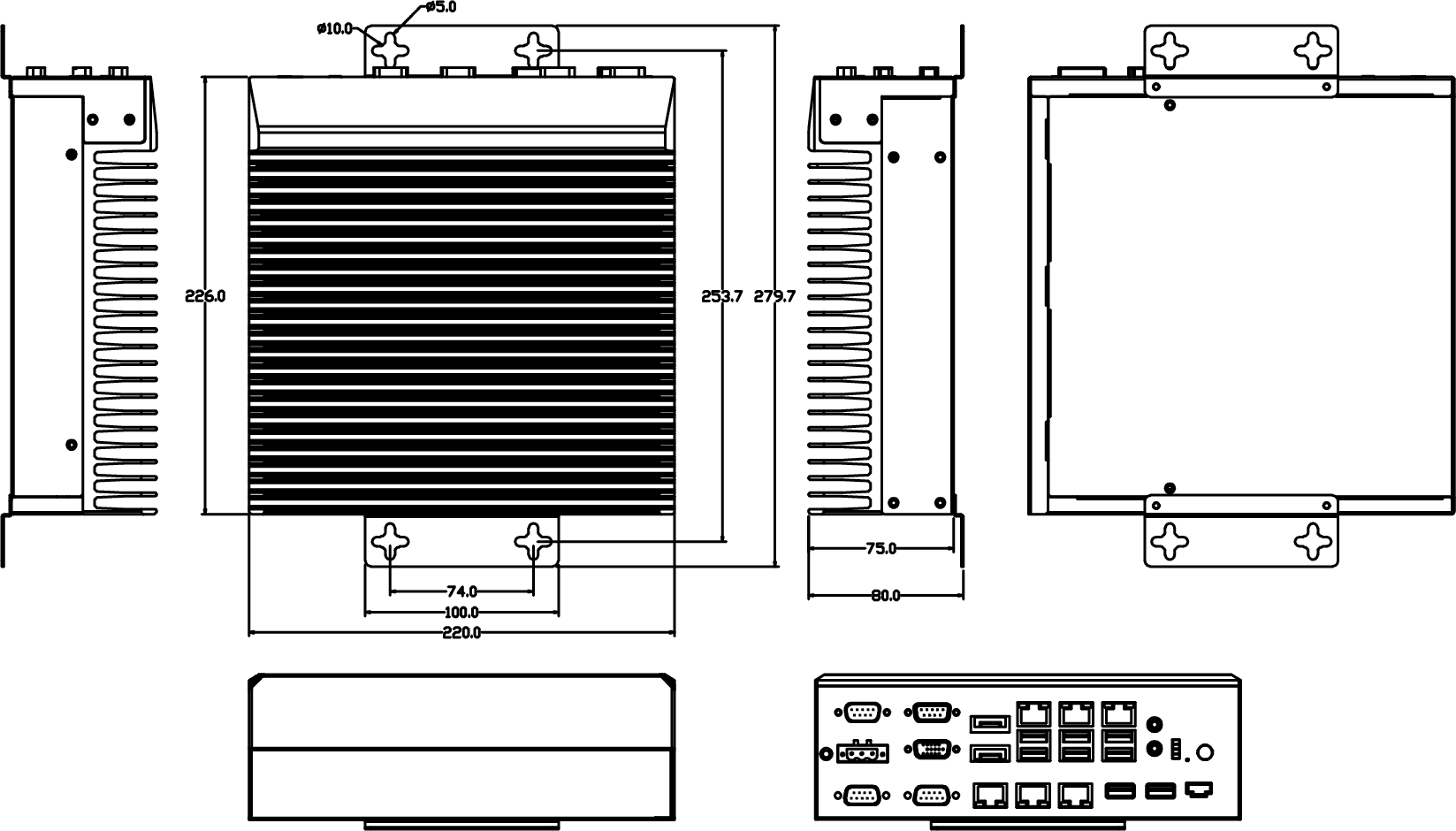

	Dimensions	220x226x75mm(LxWxH)
	Weight	3.3Kg
Environment	Operating Temperature	0°C~50°C, Airflow 0.7m / s
	Storage Temperature	-40°C~80°C
	Relative Humidity	95%@40°C(Non-Condensing)
	Vibration During Operation	With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis
	Shock During Operation	With SSD:30 G, IEC 60068-2-27, half sine, 11m duration
	ESD	Contact +/-4 KV, Air +/-8 KV
	EMC	CE/FCCClassB
