产品详情
技术规格
| Specs | Item | E551 Series |
|---|---|---|
| Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
| Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | Dual channel 260-PIN DDR4SO-DIMM |
| Capacity | Max. 32GB | |
| Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
| VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
| Dual Display | Yes, DP + DP or DP + VGA | |
| Audio | Controller | Realtek ALC662, High Definition Audio. Mic-in, Line-out |
| Ethernet | LAN | 2 x Intel® i211-AT GbE, 1 x Intel® i219-LM GbE |

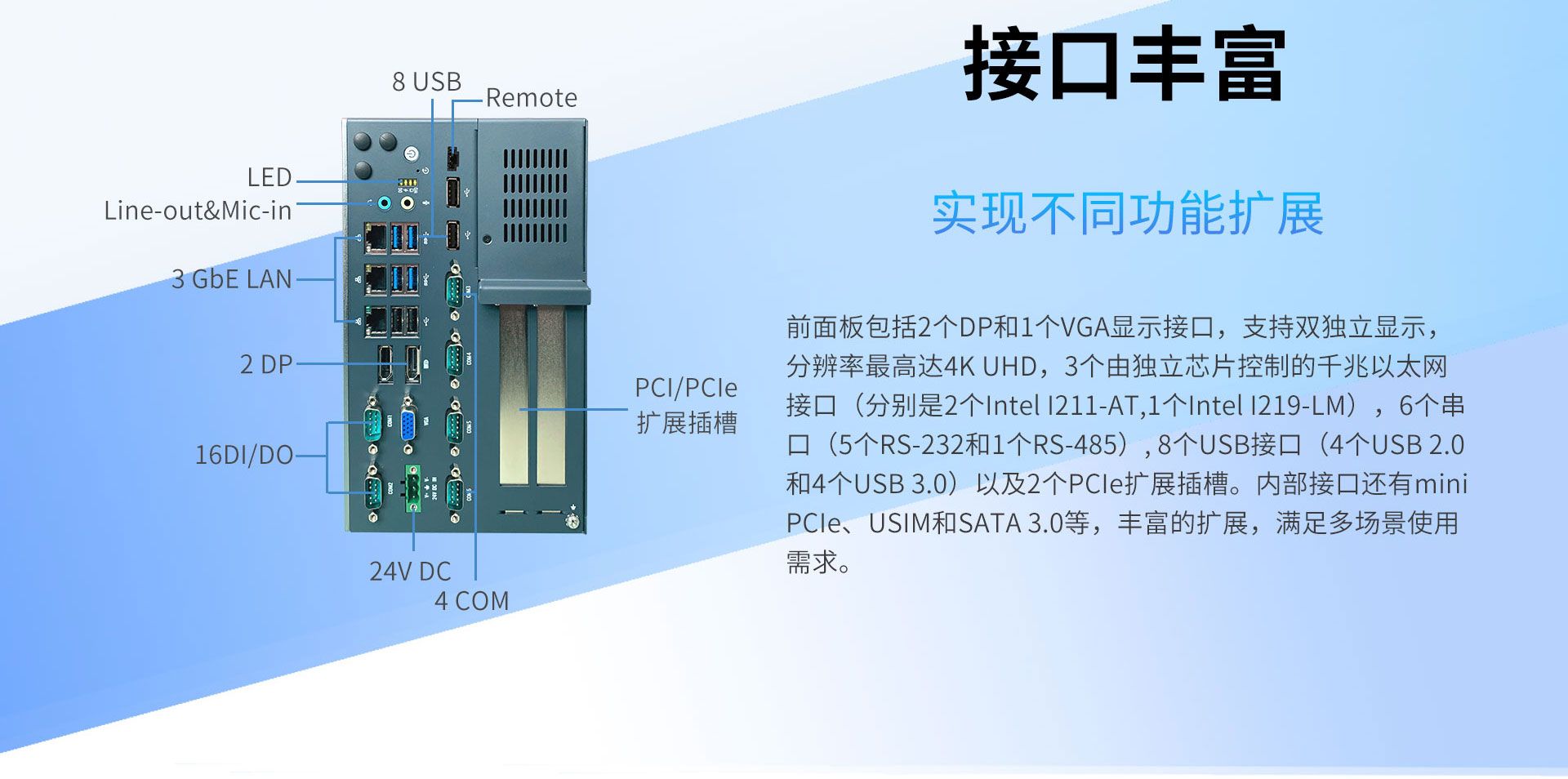

| Peripheral Interface | USB | 4 x USB 2.0, 4 x USB 3.0 |
| COM | 3 x RS-232/RS-485, 3 x RS232 | |
| LED | 4 x LED(SATA/待机/内存/Watchdog） | |
| Reset | 1 x Reset Button | |
| Power Button | 1 | |
| Storage | SATA3.0 | 1 x SATA 3.0 for 2.5 inches storages |
| m.2 | 1 x m.2 | |
| Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
| USIM | 1 x USIM, Support 3G/4G LTE | |
| Internal USB | 1 x USB 2.0 internal | |
| PCIe/PCI | 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2/PCI | |
| Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval,from 1 to 255 sec |
| Power Supply | DC Input | 24V DC |
| OS | Microsoft Windows | Windows 7(Intel® 6th Gen CPU Only)，Windows 10 64Bit |
| Linux | Yes | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Desktop/Wall Mounting | |

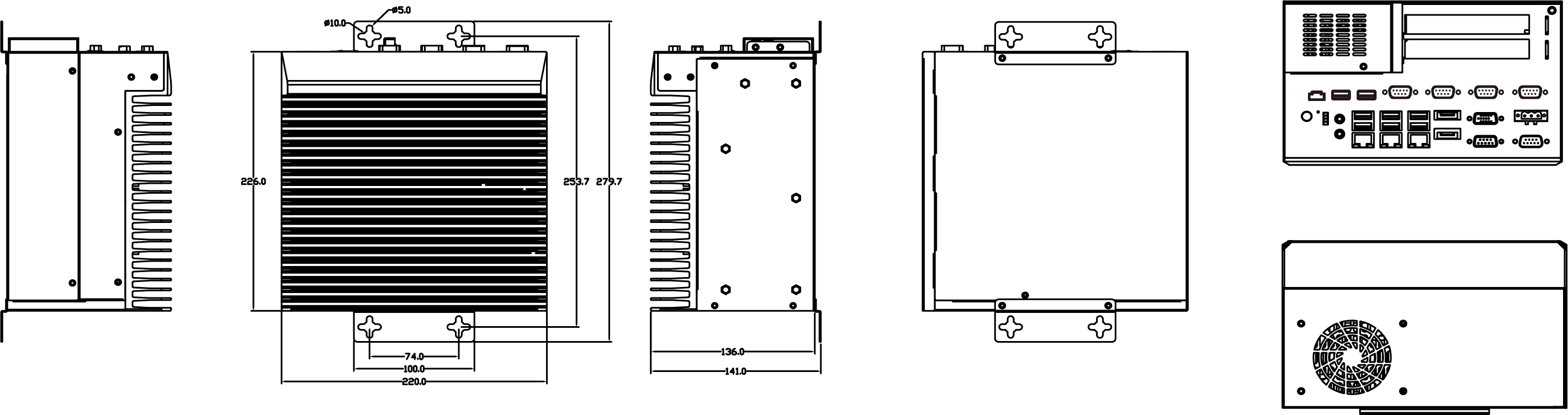

| Dimensions | 220 x 226 x 136mm (LxWxH) | |
| Weight | 4.0 Kg | |
| Environment | Operating Temperature | 0°C~50°C, airflow 0.7m / s |
| Storage Temperature | -40°C~80°C | |
| Relative Humidity | 10~95% @ 40°C ( Non-Condensing ) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration,5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCC Class B |
应用场景
智能制造
为高可靠性工业自动化和控制系统提供优化解决方案。
机器视觉
强大的计算性能支持AI驱动的质量检测和识别。
边缘计算
边缘低延迟处理，用于物联网数据聚合和实时分析。
