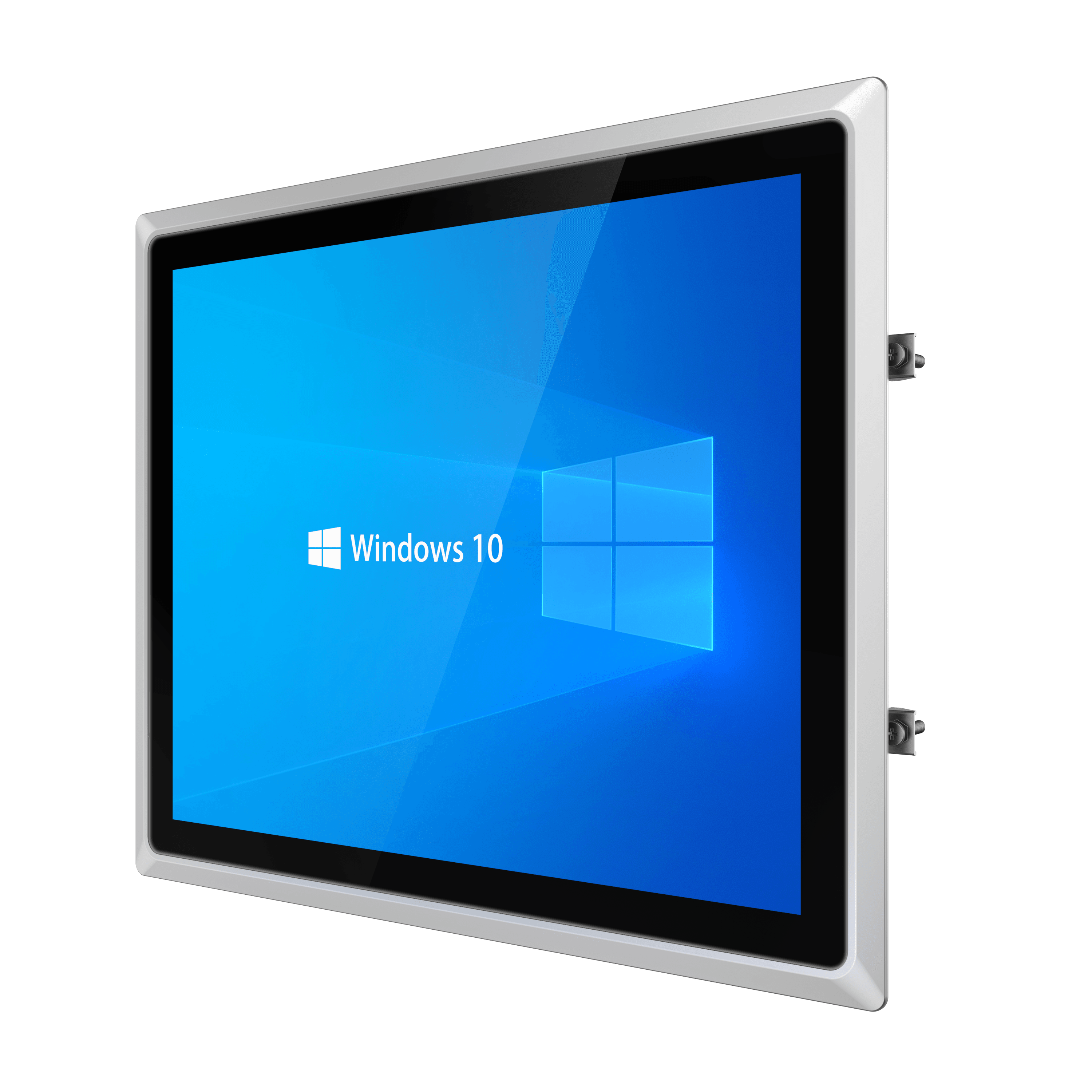

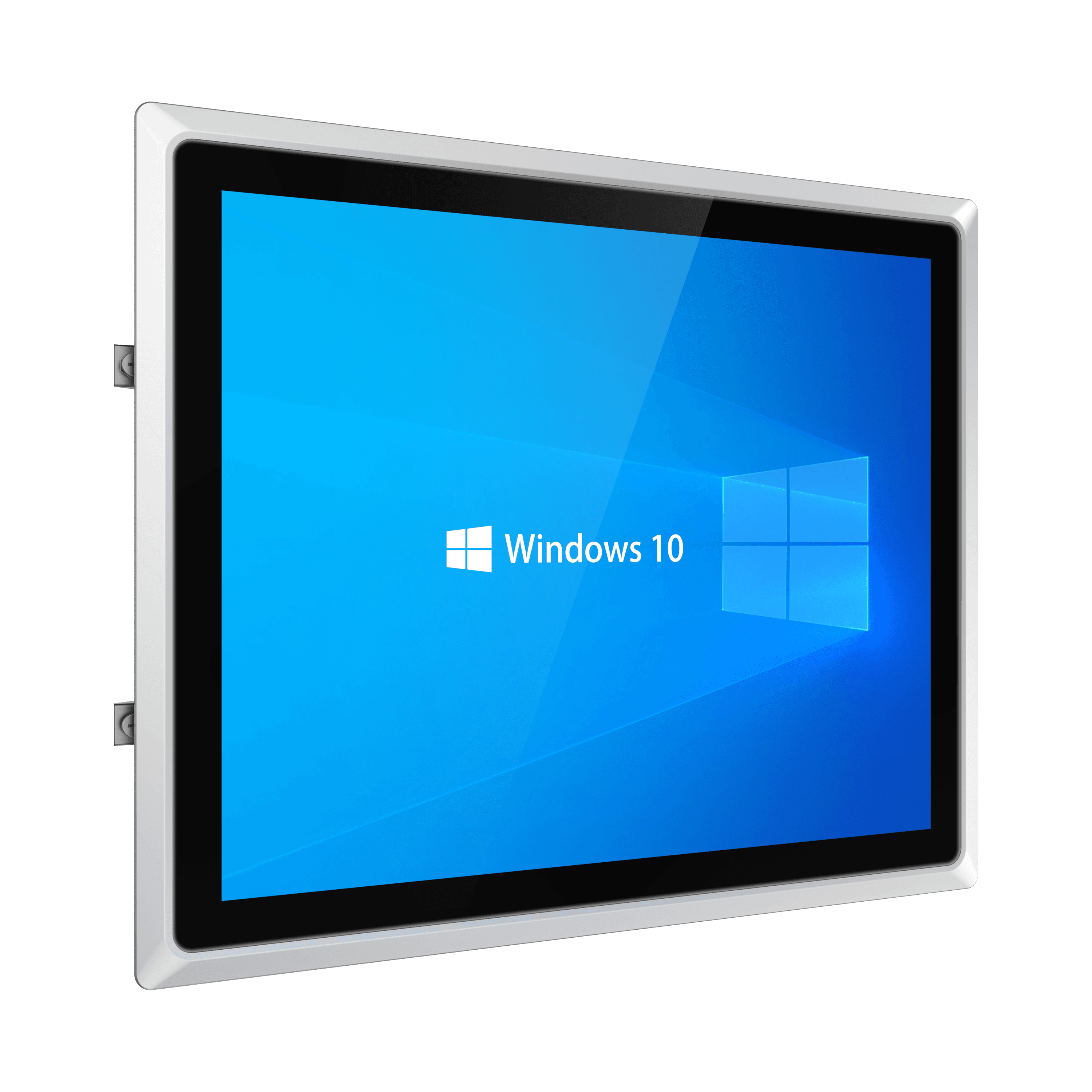

17" Standard Aspect HMI. The LPC-FR170-W is a rugged 17-inch industrial panel PC with a 1280x1024 resolution. It is designed to replace traditional controls, offering a customizable Intel® CPU platform (6th-13th Gen). With a 10-point capacitive touch screen, fanless aluminum cooling, and 9-36V wide voltage support, it delivers consistent performance in manufacturing and automation.
The LPC-FR170-W is a 17-inch industrial panel PC with a standard 4:3 aspect ratio (1280x1024 resolution), making it an excellent choice for retrofitting legacy industrial systems. It combines a robust aluminum alloy enclosure with scalable Intel® processing power (6th to 13th Gen). Its fanless, IP65-rated design ensures reliable performance in environments with dust, vibration, and temperature fluctuations.
| Parameter | Specification |
|---|---|
| Processor | Intel® Core™ / Celeron® (Customizable 6th-13th Gen) |
| Memory | Customizable (4GB - 16GB Optional) |
| Display | 17" TFT LCD (1280 x 1024 Resolution, 4:3 Aspect Ratio) |
| Touch Screen | Capacitive Touch (10-point) / Resistive Optional |
| Storage | 1x M.2 SSD, 1x 2.5" HDD/SSD (Customizable) |
| Network | 2x Gigabit Ethernet (RJ45) |
| I/O Interface | 2x USB 3.0, 2x COM (Optional 6x COM), 1x HDMI |
| Expansion | 1x MiniPCIe (WiFi/BT), GPIO Optional |
| Power Input | DC 12V / 9V-36V (5A) |
| Dimensions | Refer to Size Chart (Approx 65.5mm thickness) |
| OS Support | Windows 10/11, Linux |

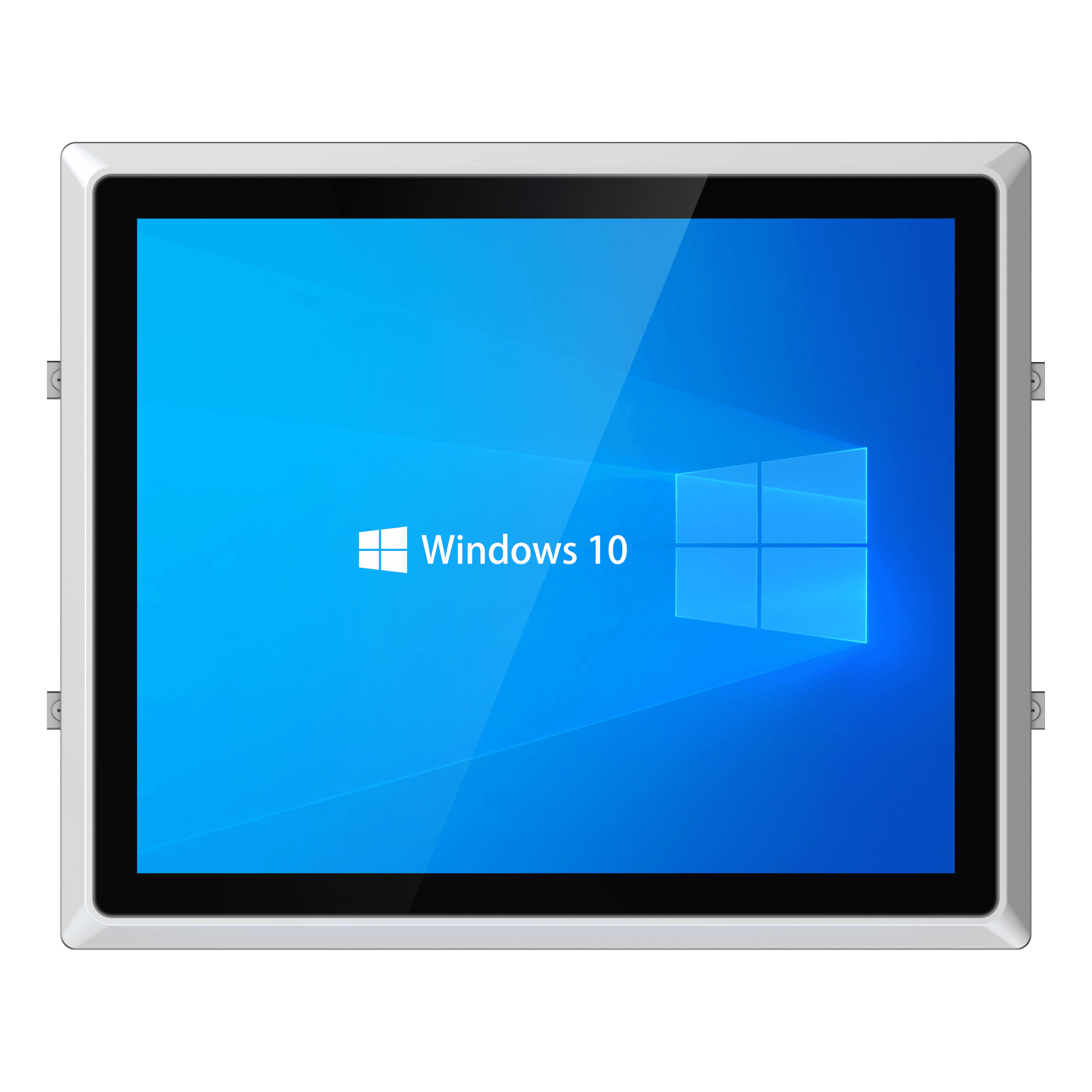

Equipped with a 17-inch 1280x1024 LCD (4:3 ratio), ideal for upgrading legacy industrial interfaces.
Compatible with a wide range of Intel® Core™ and Celeron® processors (6th to 13th Gen) to meet specific performance needs.

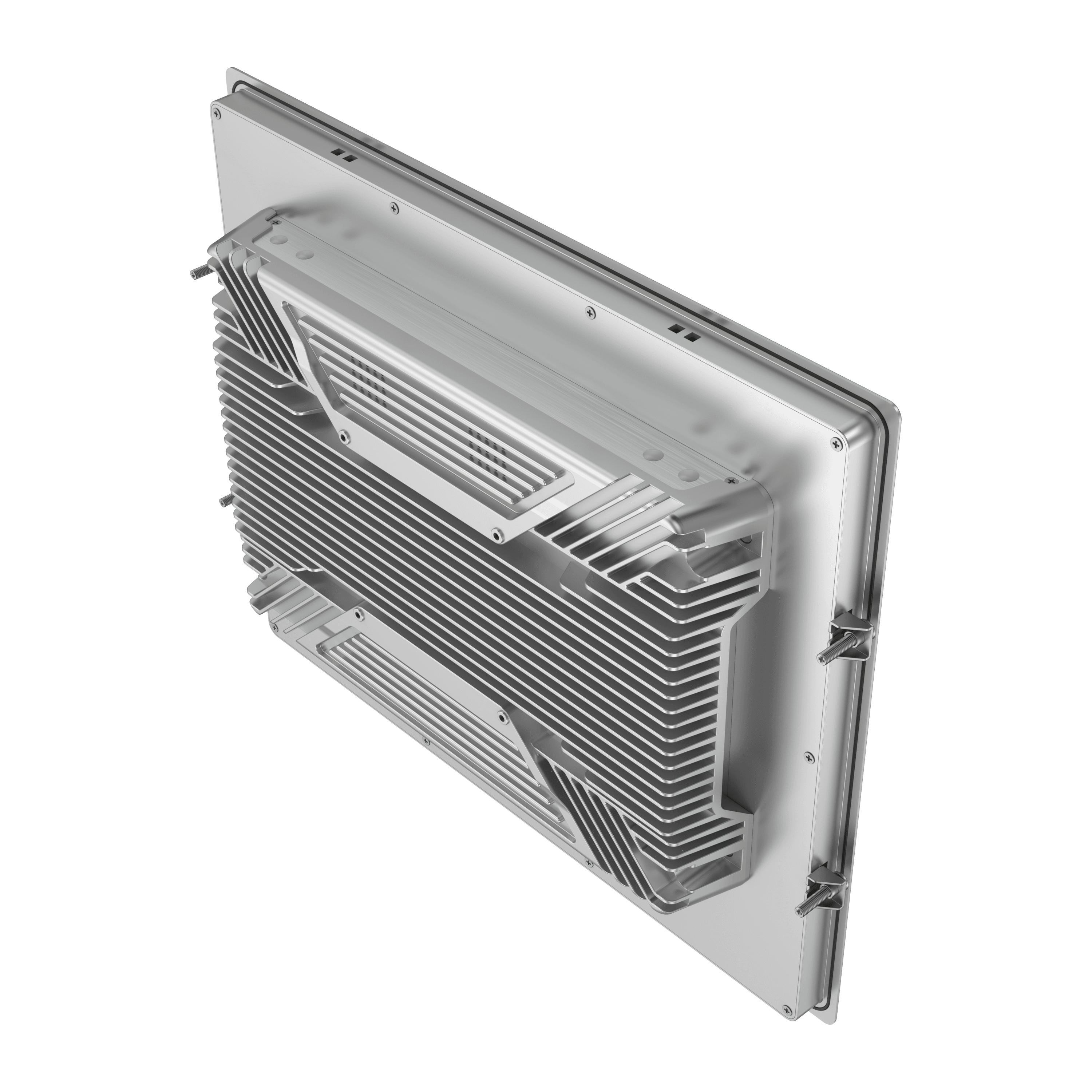

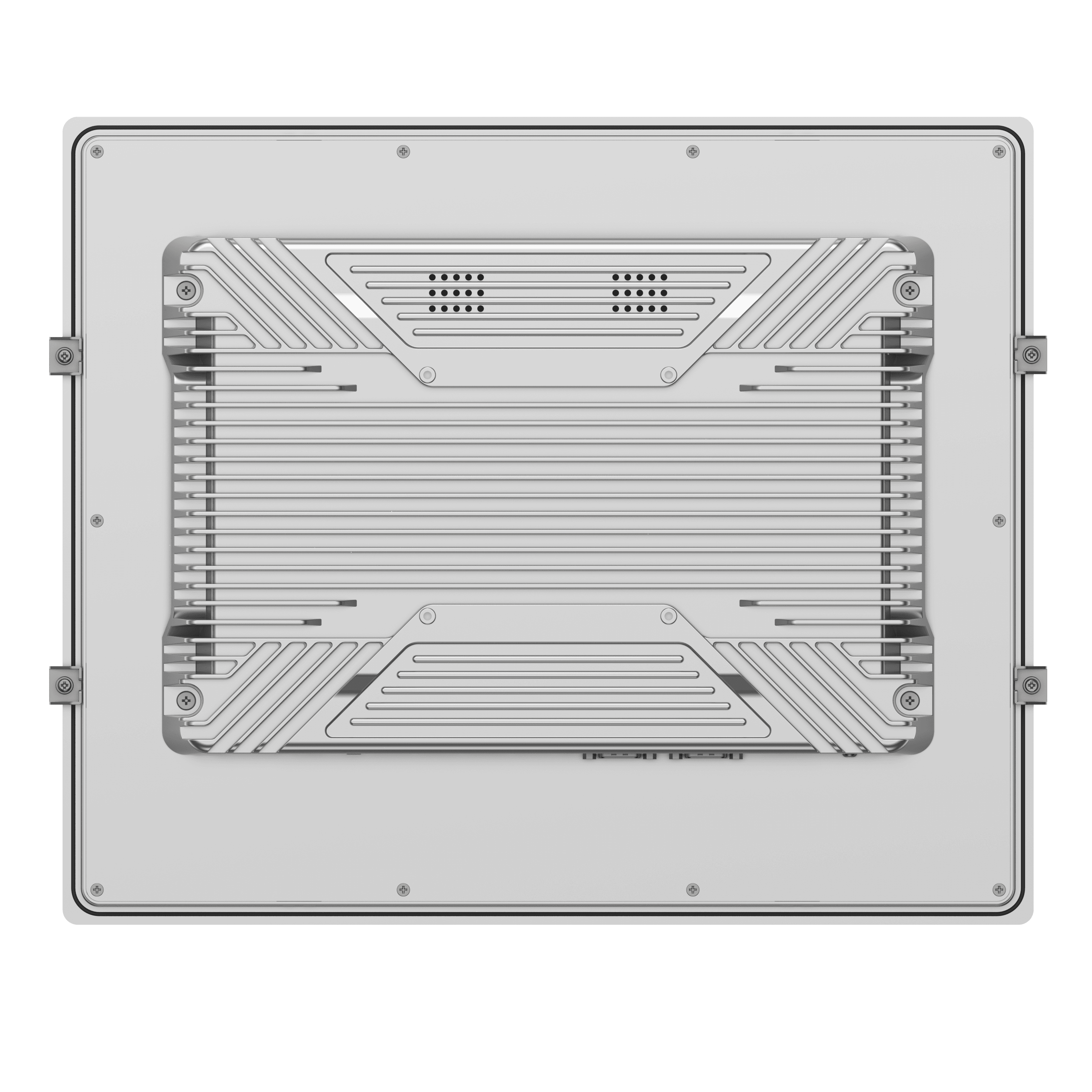

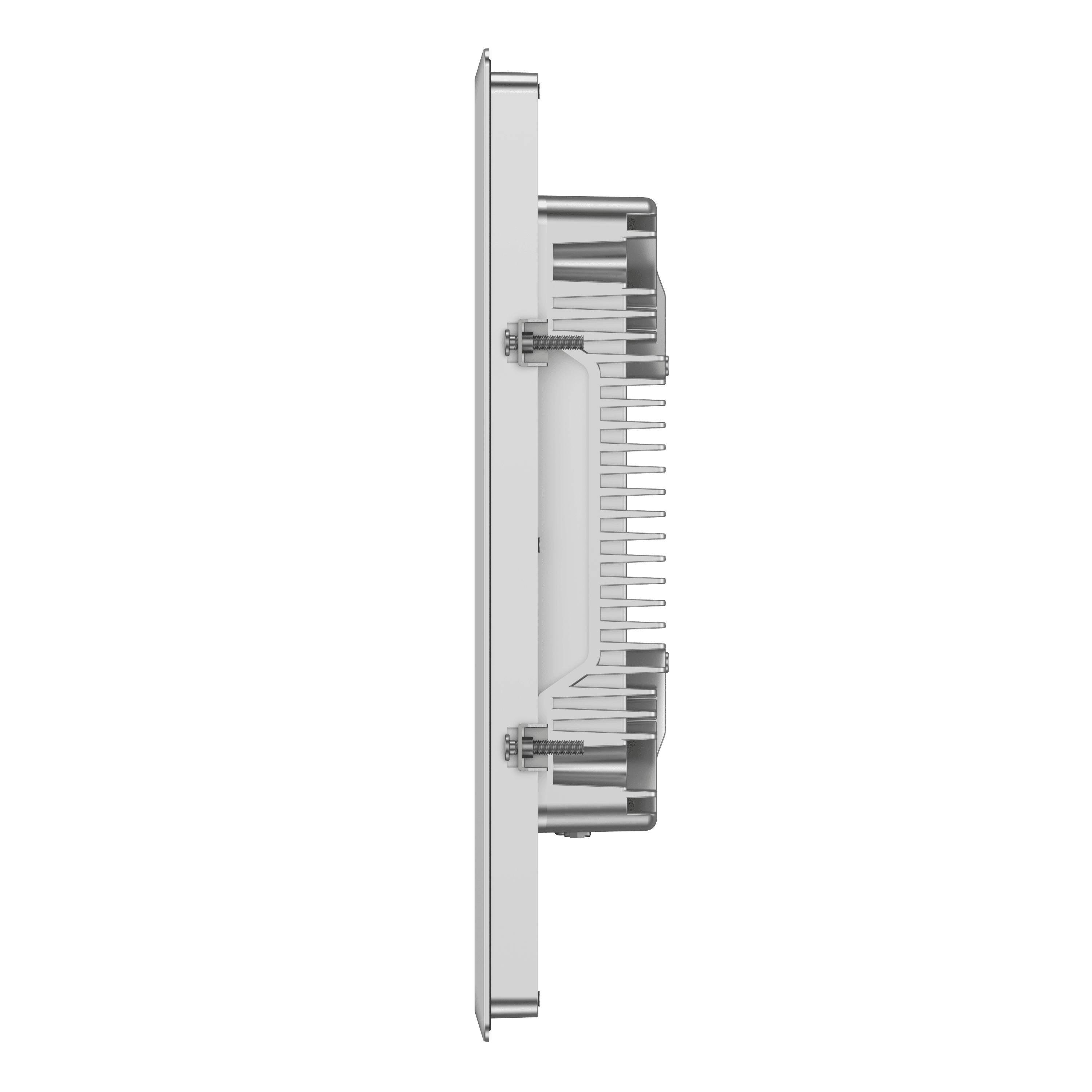

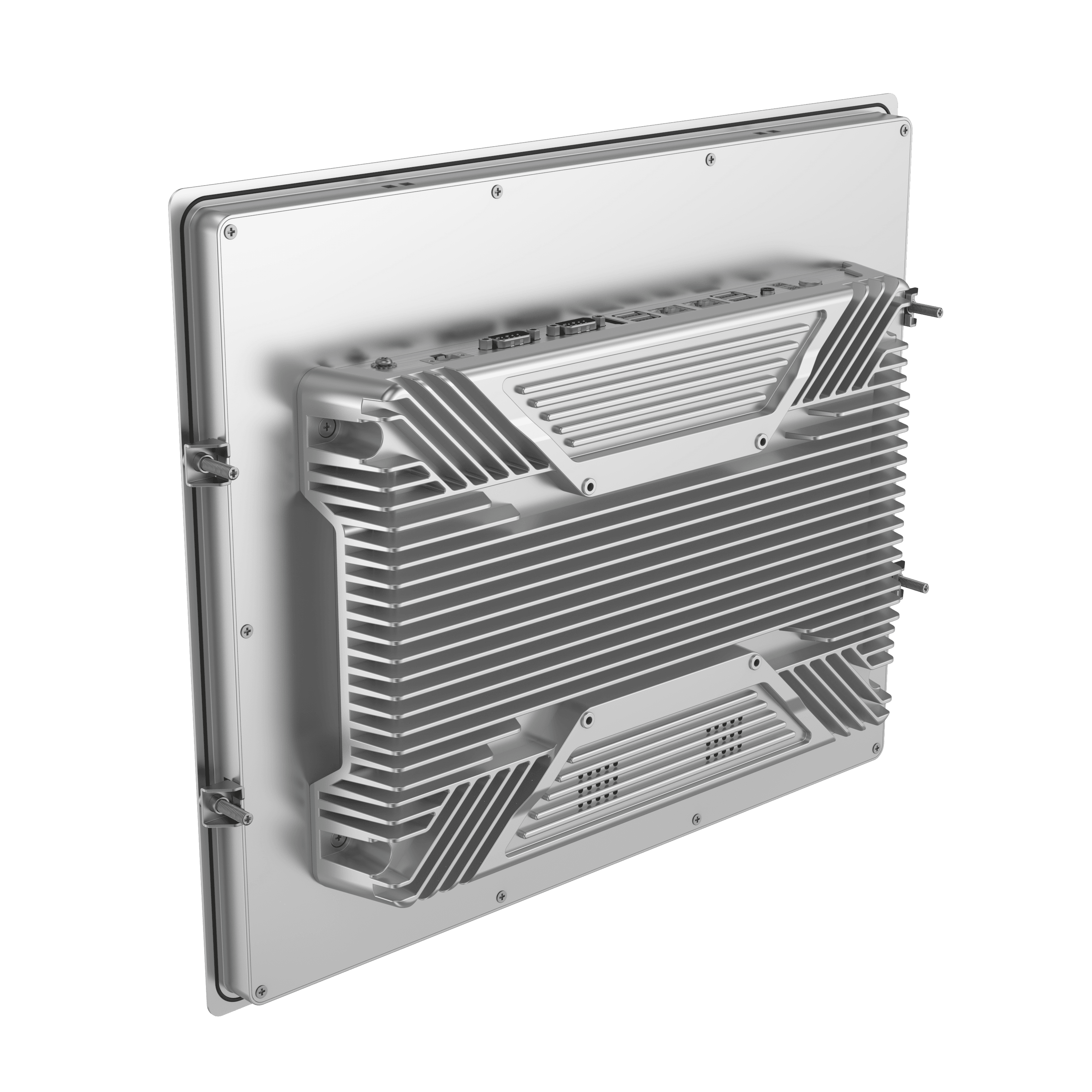

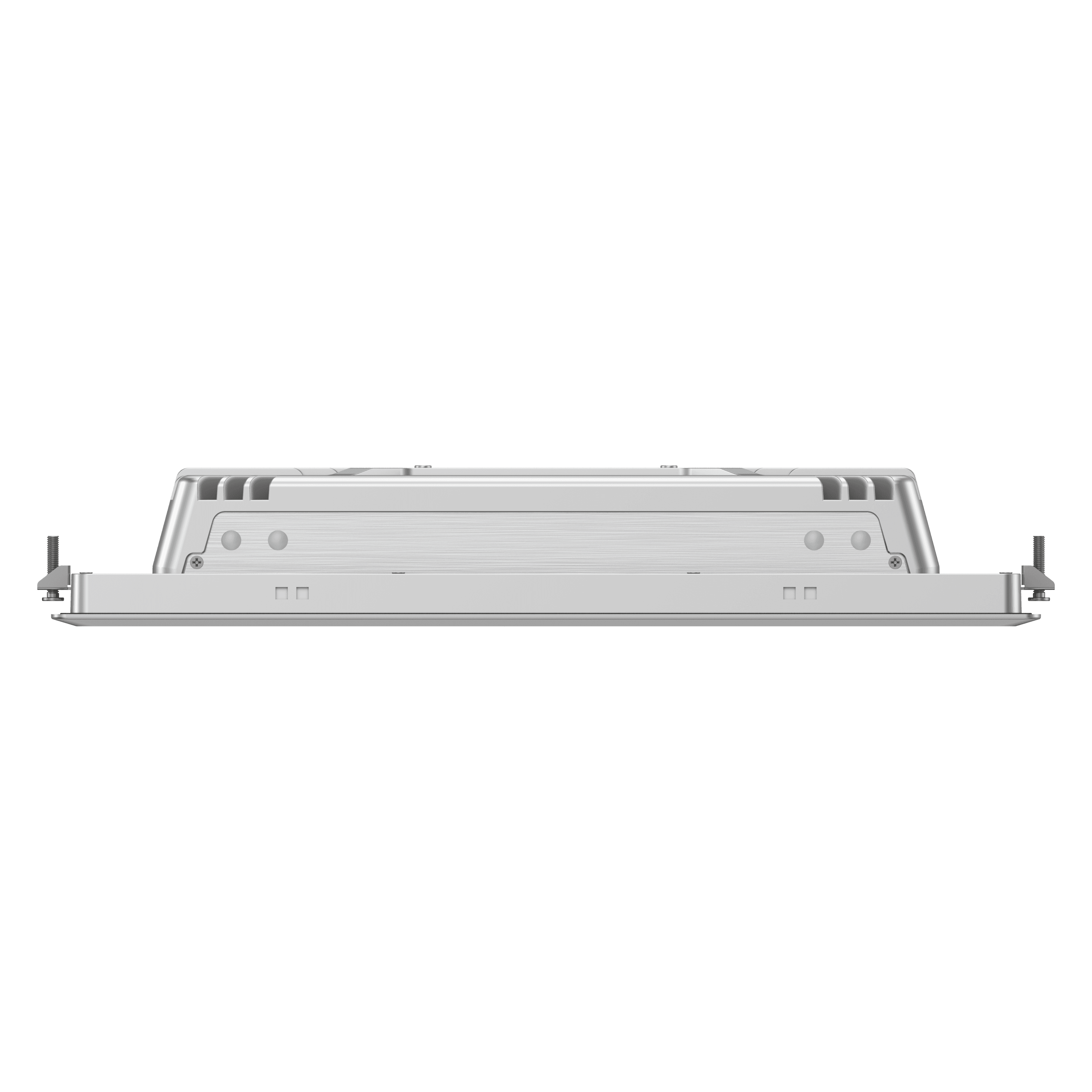

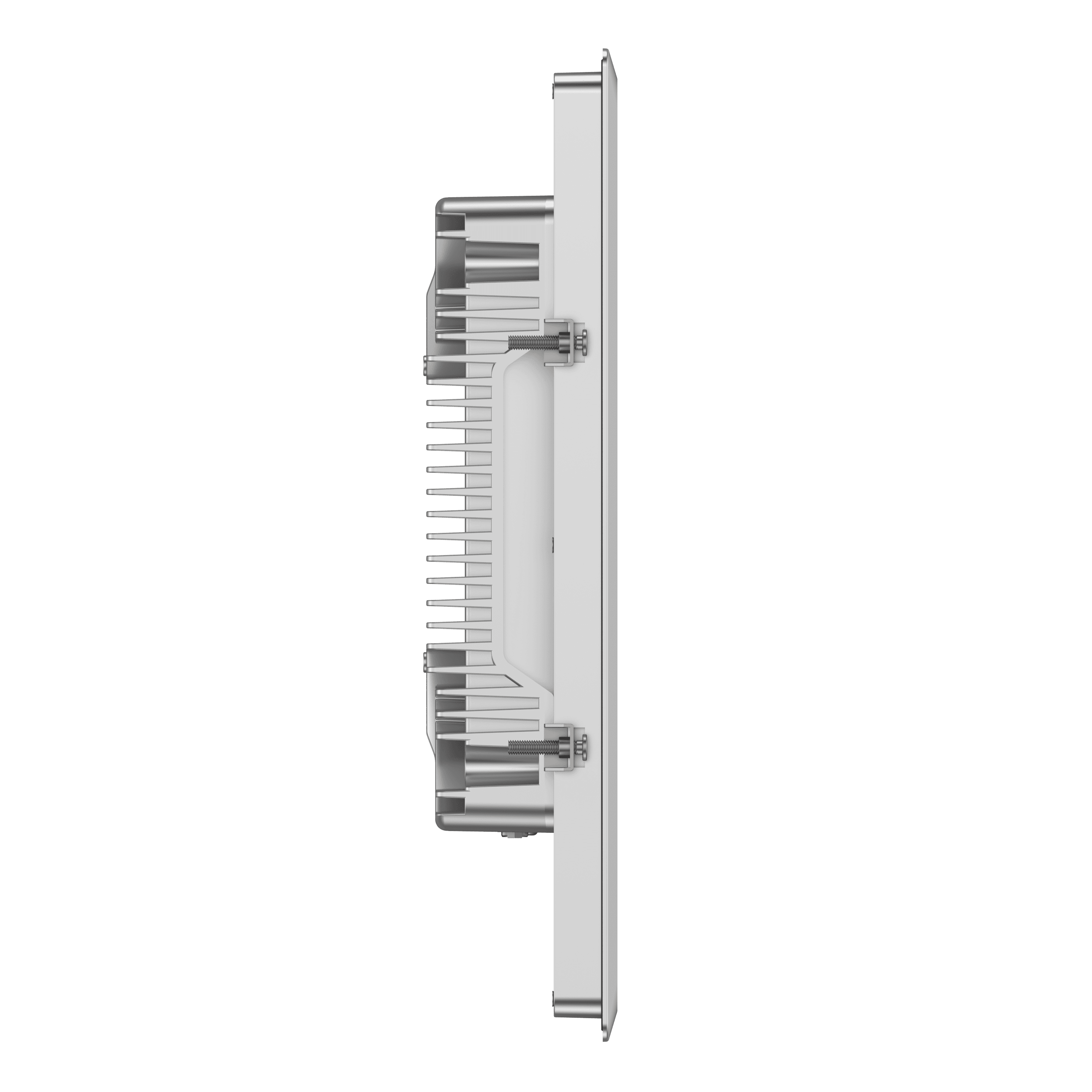

Fully enclosed die-cast aluminum alloy body (~65.5mm thick) provides excellent heat dissipation, dust protection, and vibration resistance.

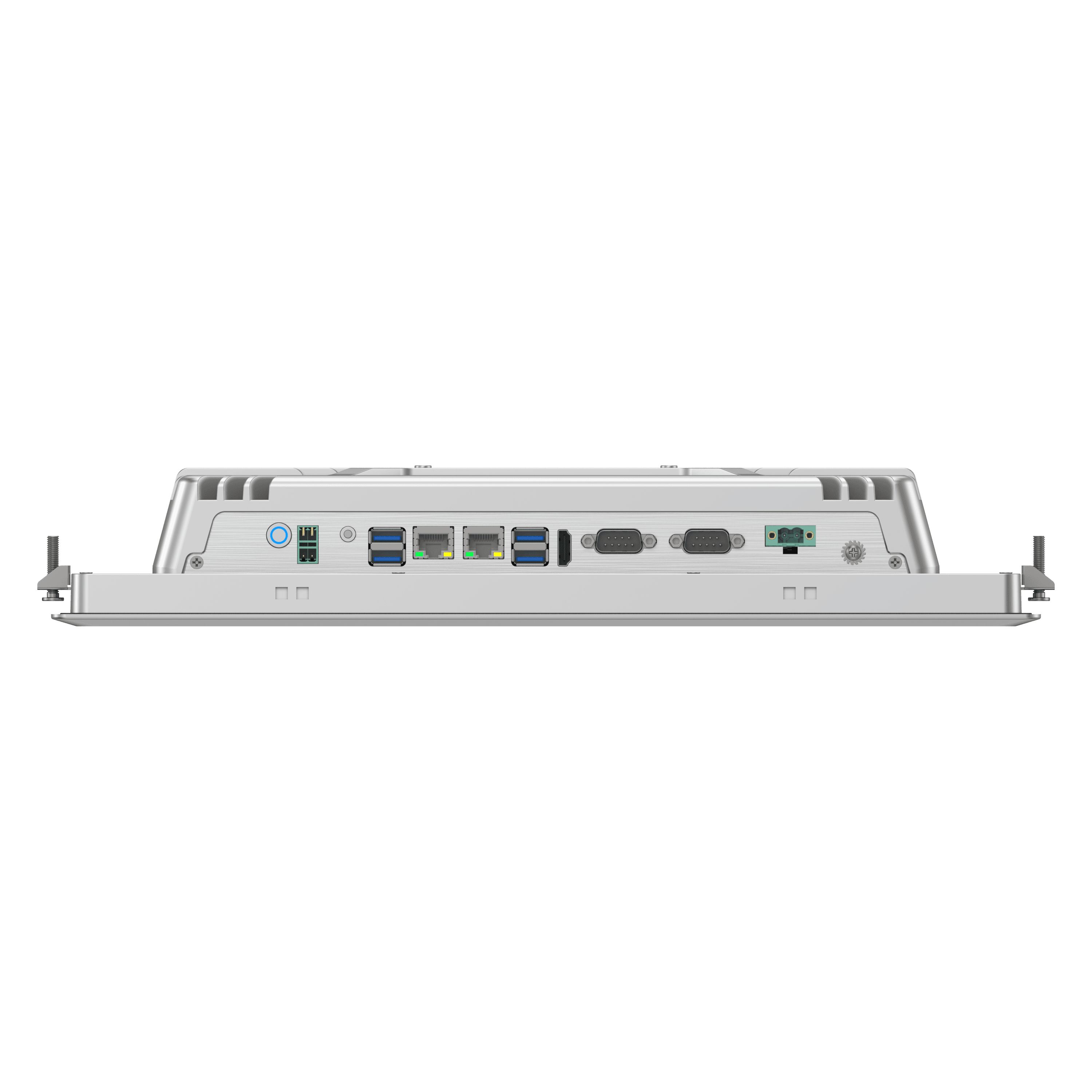

Equipped with 2x COM (Optional 6x), 2x Gigabit LAN, and 2x USB 3.0 ports for seamless device integration.
Supports DC 12V input with an option for 9-36V wide voltage, ensuring stability in fluctuating power conditions.
面向工业自动化与控制系统的高可靠解决方案。
以高性能计算能力支撑 AI 质检与识别场景。
在网络边缘实现低延迟数据聚合与实时分析。
PDF | 0.01 MB
该产品适用于智能制造、机器视觉、边缘数据采集与网关控制等场景。根据当前规格，可在 -20°C ~ 60°C 条件下承载 7x24 小时持续运行任务，并支持 Windows 10, Windows 11, Linux 软件环境。
产品分类：工业一体机；处理器：Intel® Core™ / Celeron® (Customizable 6th-13th Gen)；内存：Customizable (4GB - 16GB Optional)；网络：N/A；环境温度：-20°C ~ 60°C。以上参数可用于项目初筛与兼容性评估。
当前产品提供 1 项可下载资料（如驱动、手册或相关文件），可用于缩短评估与集成周期。
LPC-FR170-W 17" Industrial Panel PC 主要用于 工业一体机 相关项目，适合对稳定性和持续运行能力要求较高的工业场景。
通常可支持 Windows 10, Windows 11, Linux。具体以项目镜像、驱动与外设适配要求为准。
支持。可按项目需求提供接口扩展、外观标识与方案级定制。
