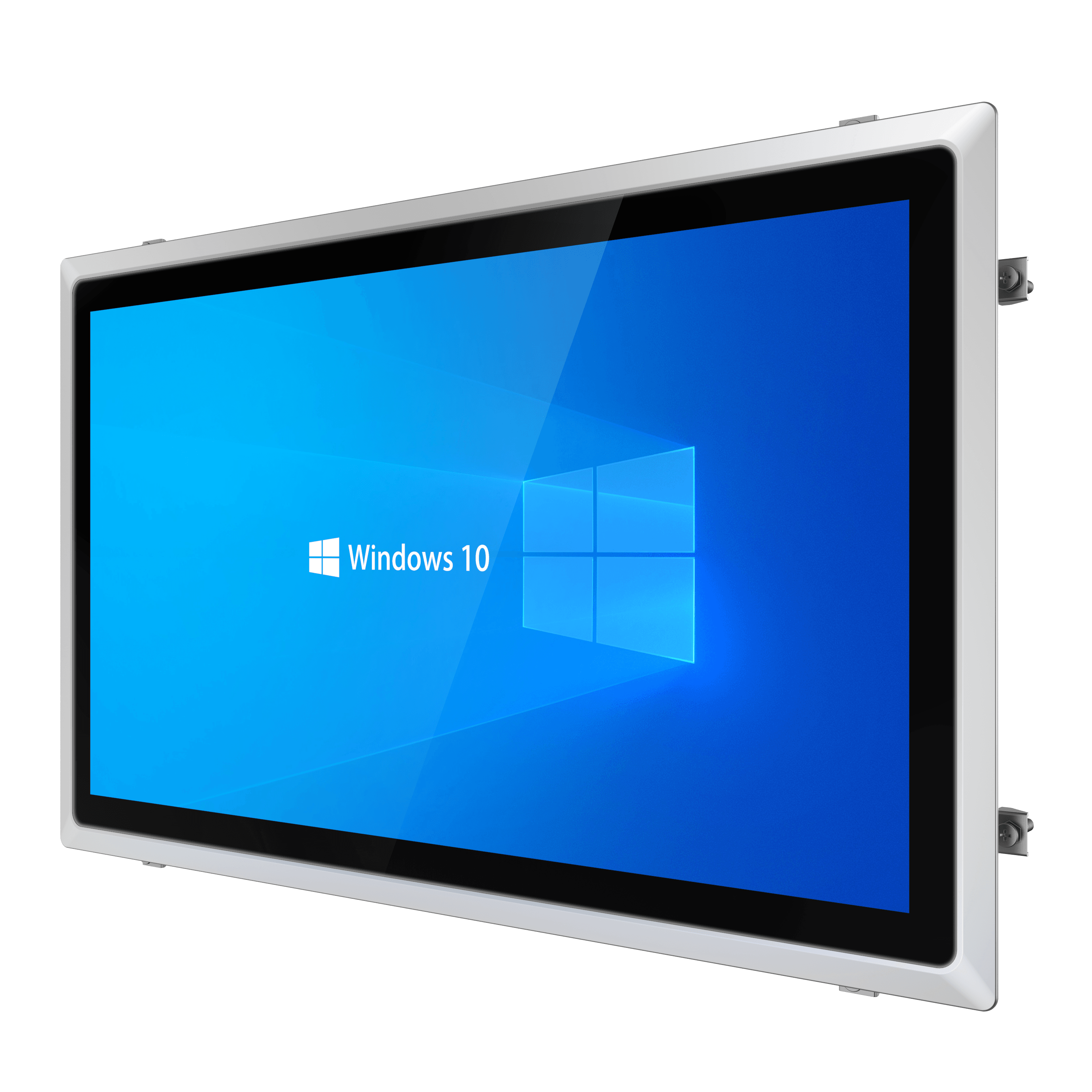

Massive 21.5" FHD Widescreen HMI. The LPC-KR215-W stands out with its expansive 1920x1080 display and enhanced connectivity (4x USB 3.0). Supporting Intel® 6th-13th Gen processors, this fanless industrial panel PC is built for high-end visualization tasks. Its rugged aluminum housing and wide voltage support ensure reliable 24/7 operation in harsh environments.
The LPC-KR215-W is a massive 21.5-inch industrial panel PC designed for operators who need a large, high-definition workspace. Featuring a 1920x1080 FHD screen and an upgraded interface with 4x USB 3.0 ports, it handles complex data visualization with ease. Powered by customizable Intel® processors (6th-13th Gen) and protected by a rugged aluminum chassis, it is the ultimate HMI solution for smart factories.
| Parameter | Specification |
|---|---|
| Processor | Intel® Core™ / Celeron® (Customizable 6th-13th Gen) |
| Memory | Customizable (4GB - 16GB Optional) |
| Display | 21.5" TFT LCD (1920 x 1080 FHD Resolution) |
| Touch Screen | Capacitive Touch (10-point) / Resistive Optional |
| Storage | 1x M.2 SSD, 1x 2.5" HDD/SSD (Customizable) |
| Network | 2x Gigabit Ethernet (RJ45) |
| I/O Interface | 4x USB 3.0, 2x COM (Optional 6x COM), 1x HDMI |
| Expansion | 1x MiniPCIe (WiFi/BT), GPIO Optional |
| Power Input | DC 12V / 9V-36V (5A) |
| Dimensions | Refer to Size Chart (Approx 68mm thickness) |
| OS Support | Windows 10/11, Linux |

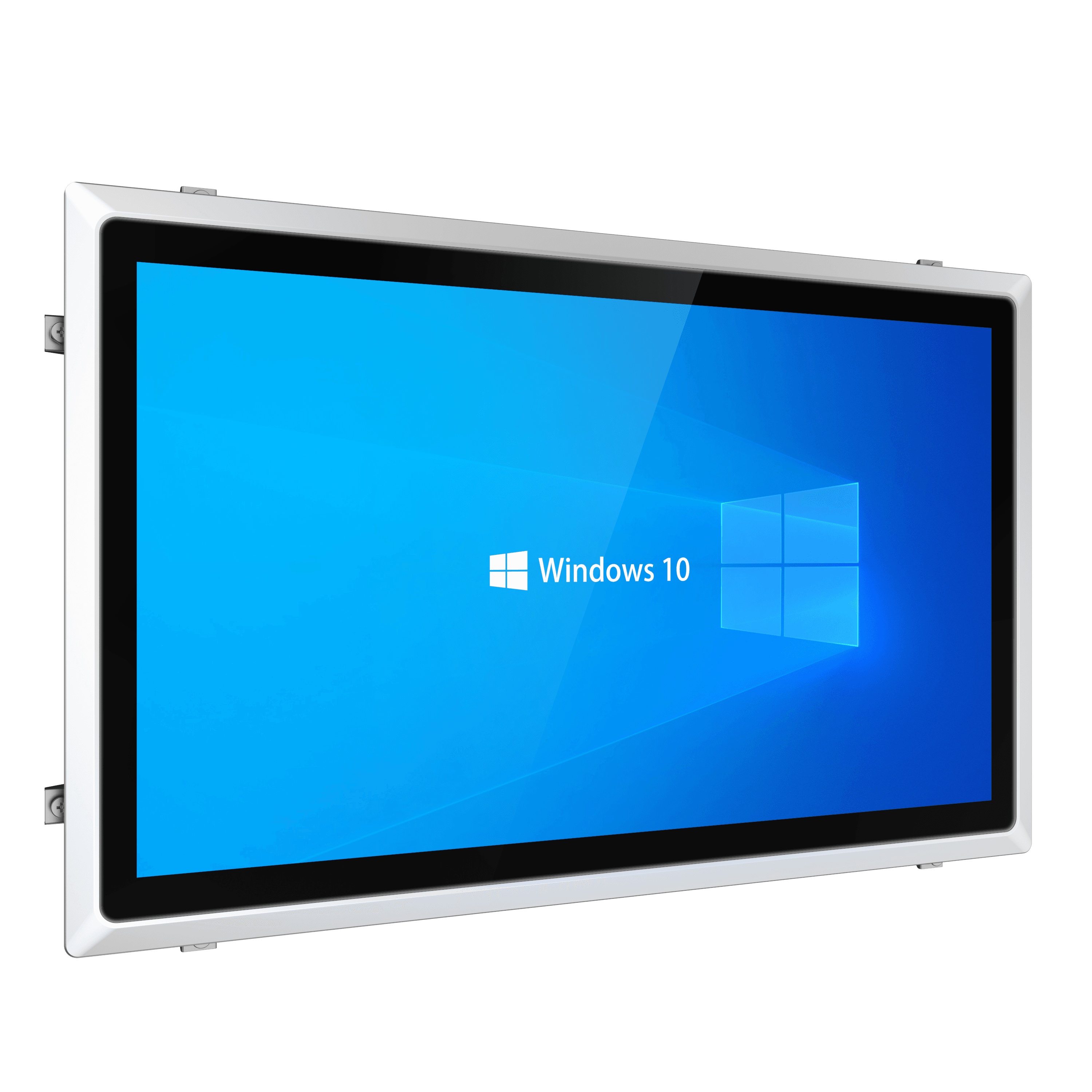

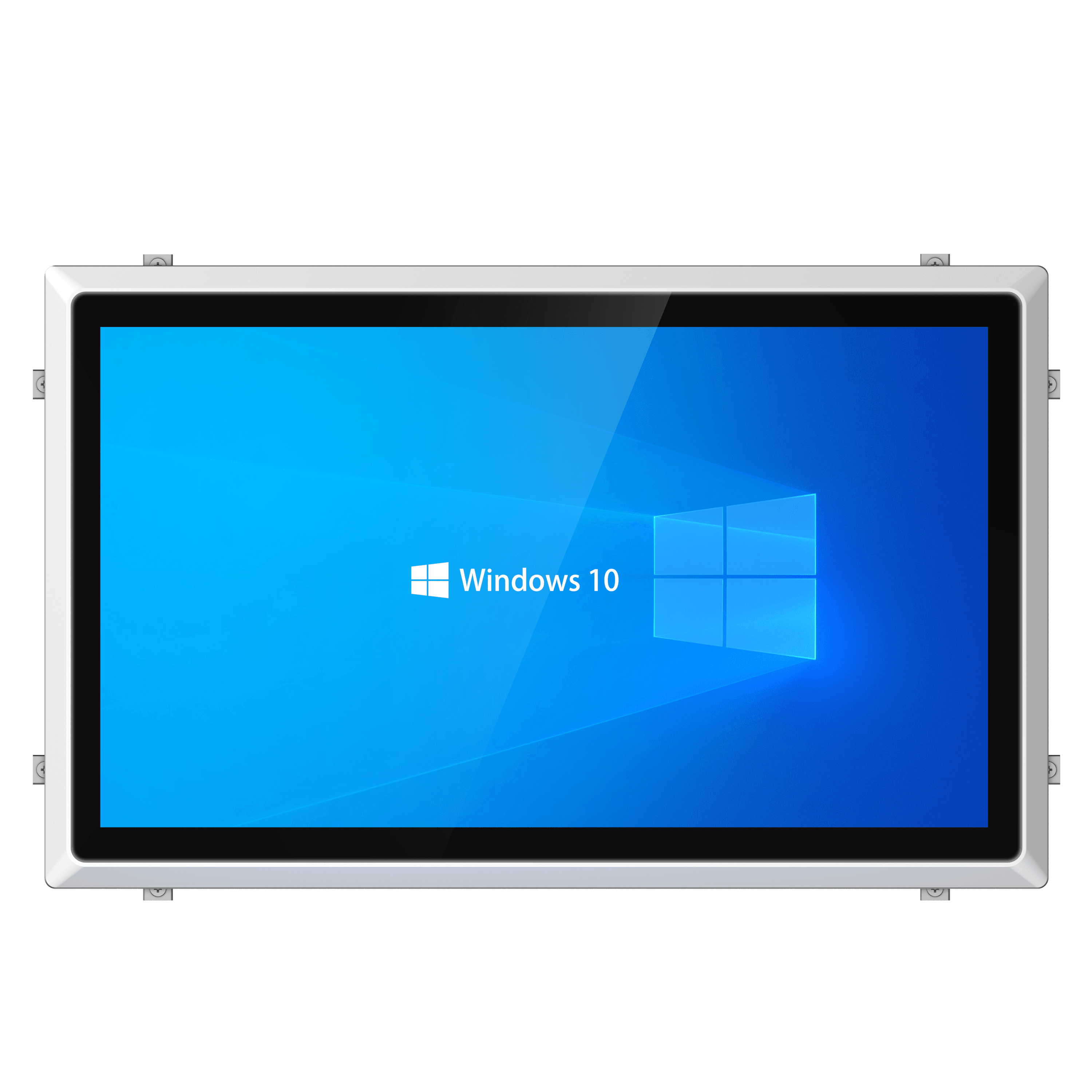

Large 21.5-inch 1920x1080 display provides maximum screen real estate for SCADA and monitoring applications.
Compatible with a wide range of Intel® Core™ and Celeron® processors (6th to 13th Gen) to meet specific performance needs.

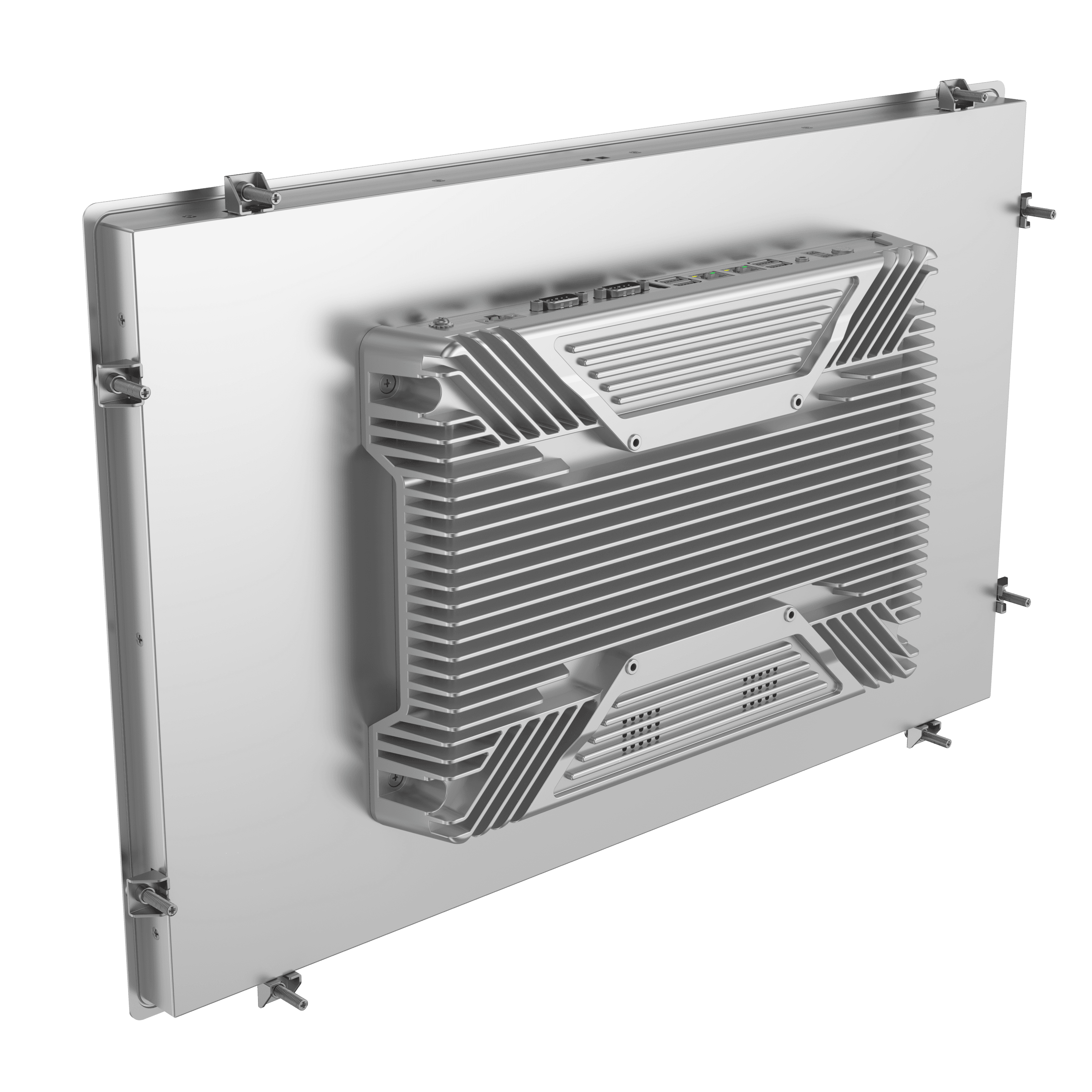

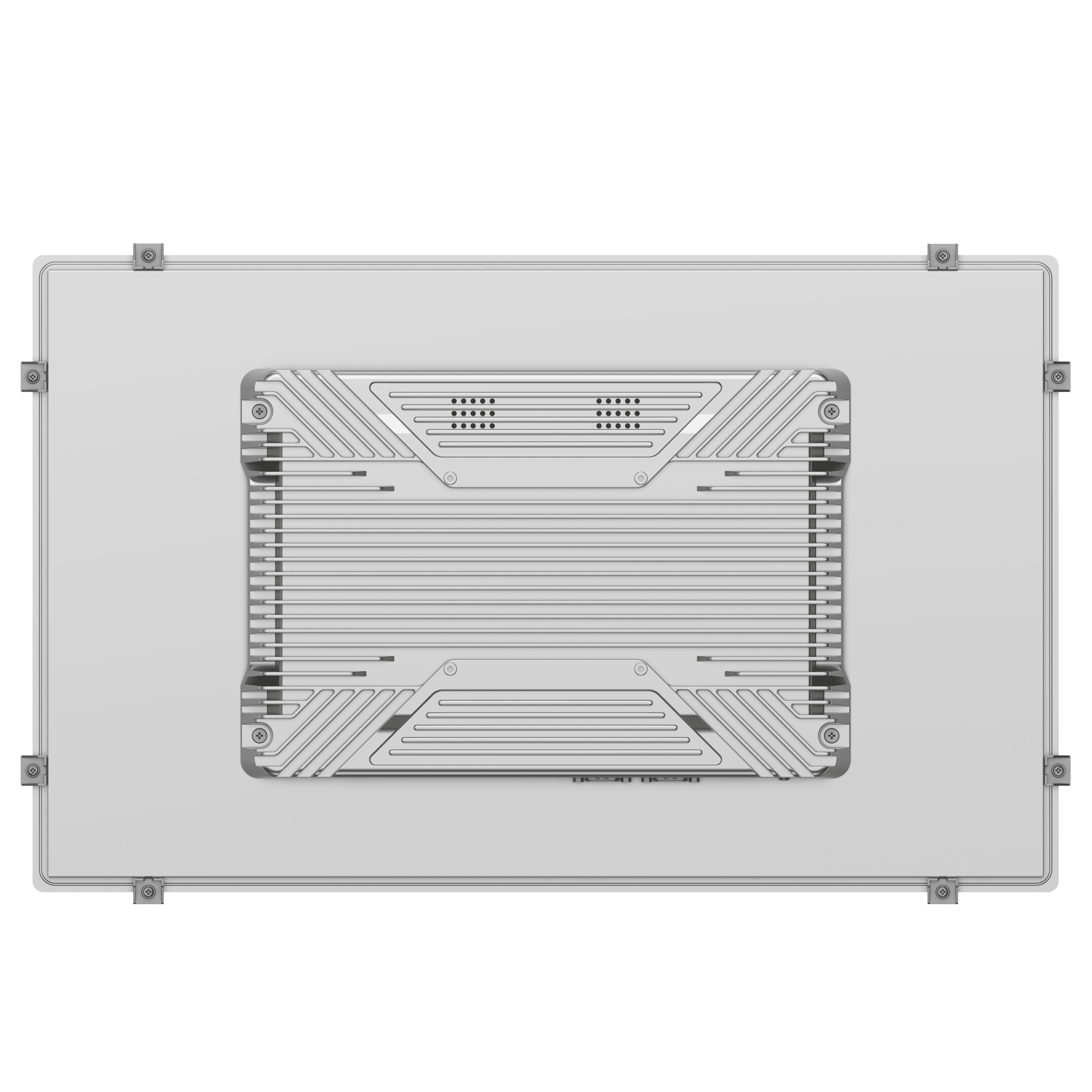

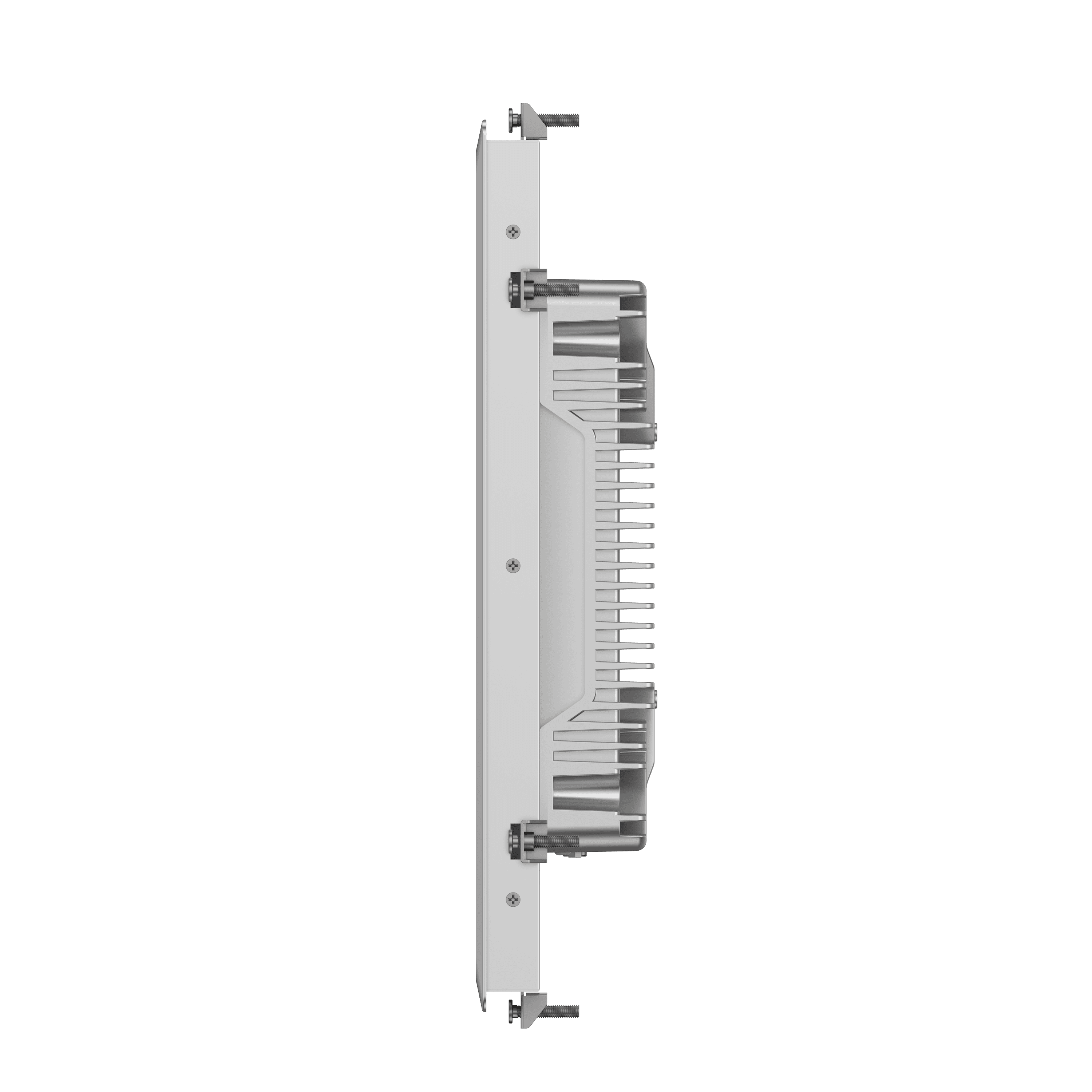

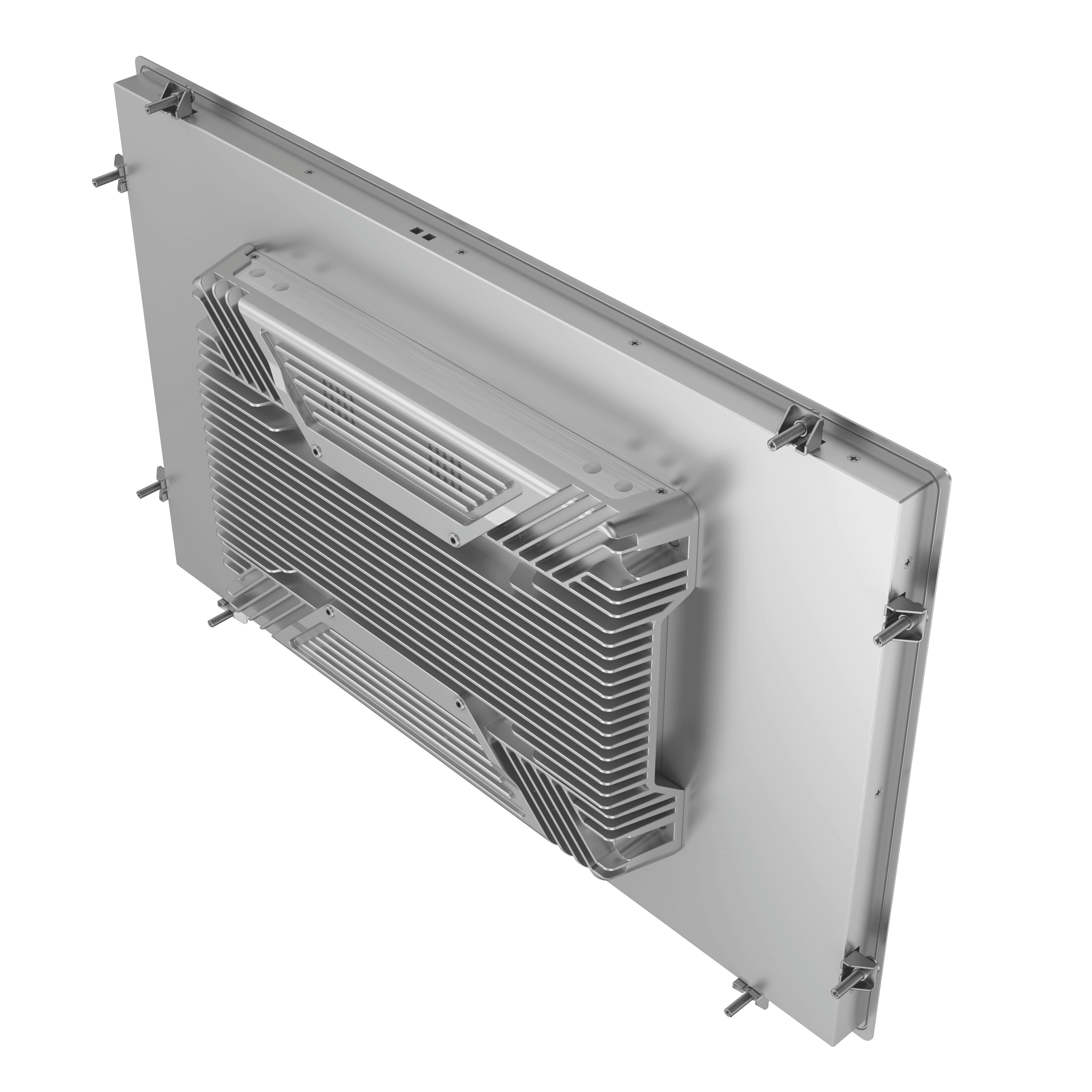

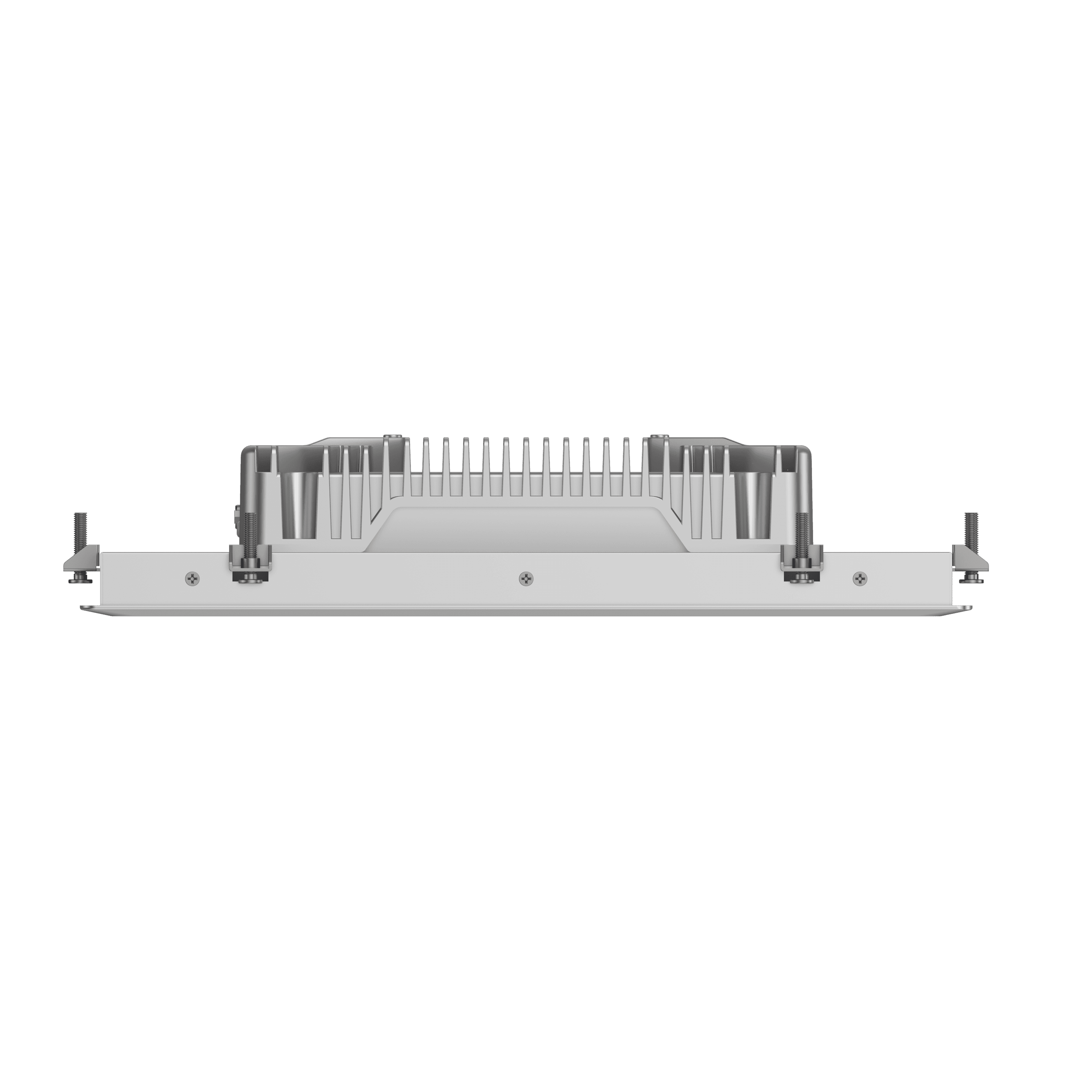

Fully enclosed die-cast aluminum alloy body (~68mm thick) provides excellent heat dissipation, dust protection, and vibration resistance.

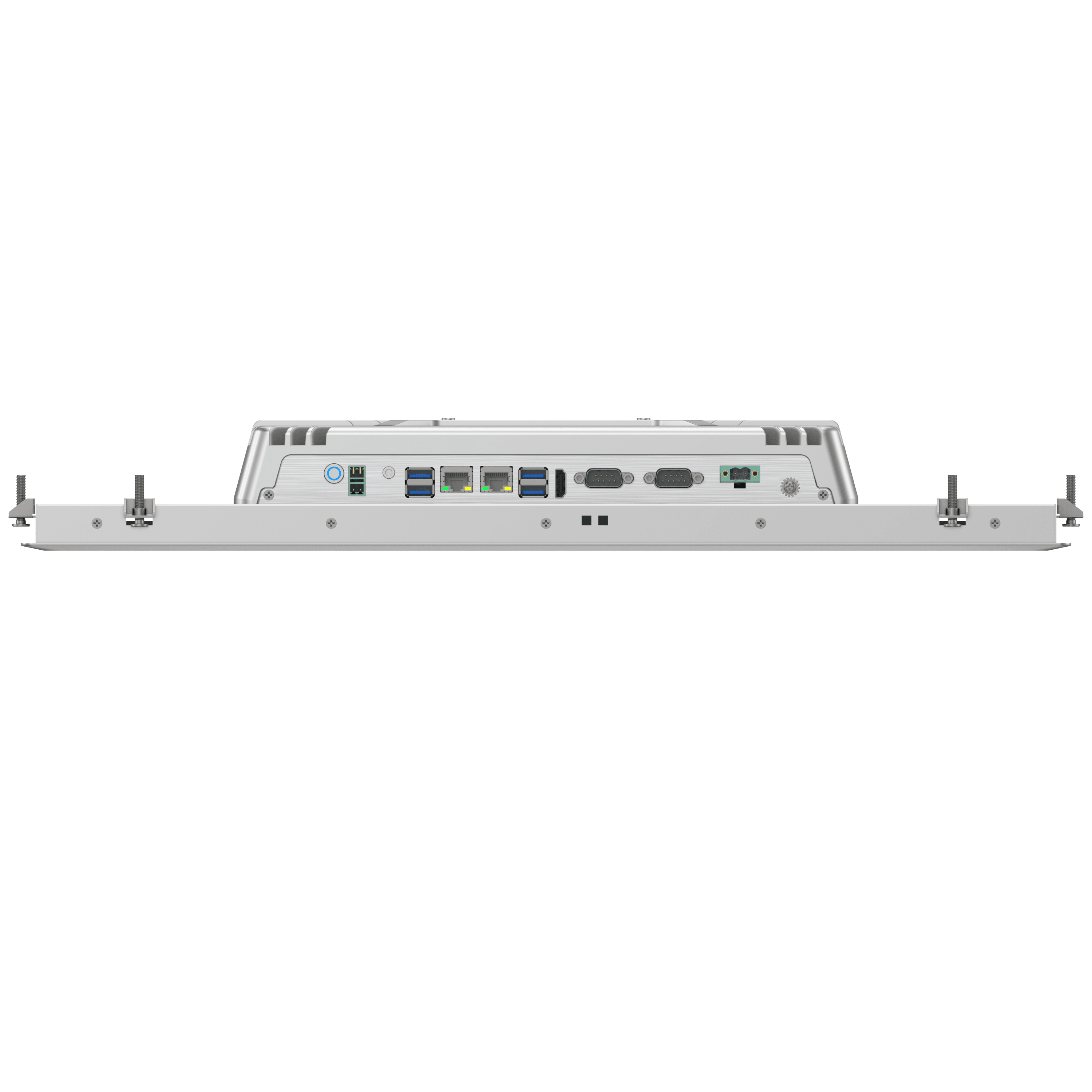

Upgraded with 4x USB 3.0 ports for faster data transfer with peripherals, plus 2x COM and 2x Gigabit LAN.
Supports DC 12V input with an option for 9-36V wide voltage, ensuring stability in fluctuating power conditions.
面向工业自动化与控制系统的高可靠解决方案。
以高性能计算能力支撑 AI 质检与识别场景。
在网络边缘实现低延迟数据聚合与实时分析。
PDF | 0.01 MB
该产品适用于智能制造、机器视觉、边缘数据采集与网关控制等场景。根据当前规格,可在 -20°C ~ 60°C 条件下承载 7x24 小时持续运行任务,并支持 Windows 10, Windows 11, Linux 软件环境。
产品分类:工业一体机;处理器:Intel® Core™ / Celeron® (Customizable 6th-13th Gen);内存:Customizable (4GB - 16GB Optional);网络:N/A;环境温度:-20°C ~ 60°C。以上参数可用于项目初筛与兼容性评估。
当前产品提供 1 项可下载资料(如驱动、手册或相关文件),可用于缩短评估与集成周期。
LPC-KR215-W 21.5" FHD Industrial Panel PC 主要用于 工业一体机 相关项目,适合对稳定性和持续运行能力要求较高的工业场景。
通常可支持 Windows 10, Windows 11, Linux。具体以项目镜像、驱动与外设适配要求为准。
支持。可按项目需求提供接口扩展、外观标识与方案级定制。
