| Specs | Item | E512 |
|---|---|---|
| Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
| Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | 2xDDR4 SO-DIMM |
| Capacity | 4GB (Max. 32GB) | |
| Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
| VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
| Dual Display | Yes, DP + DP or DP + VGA | |

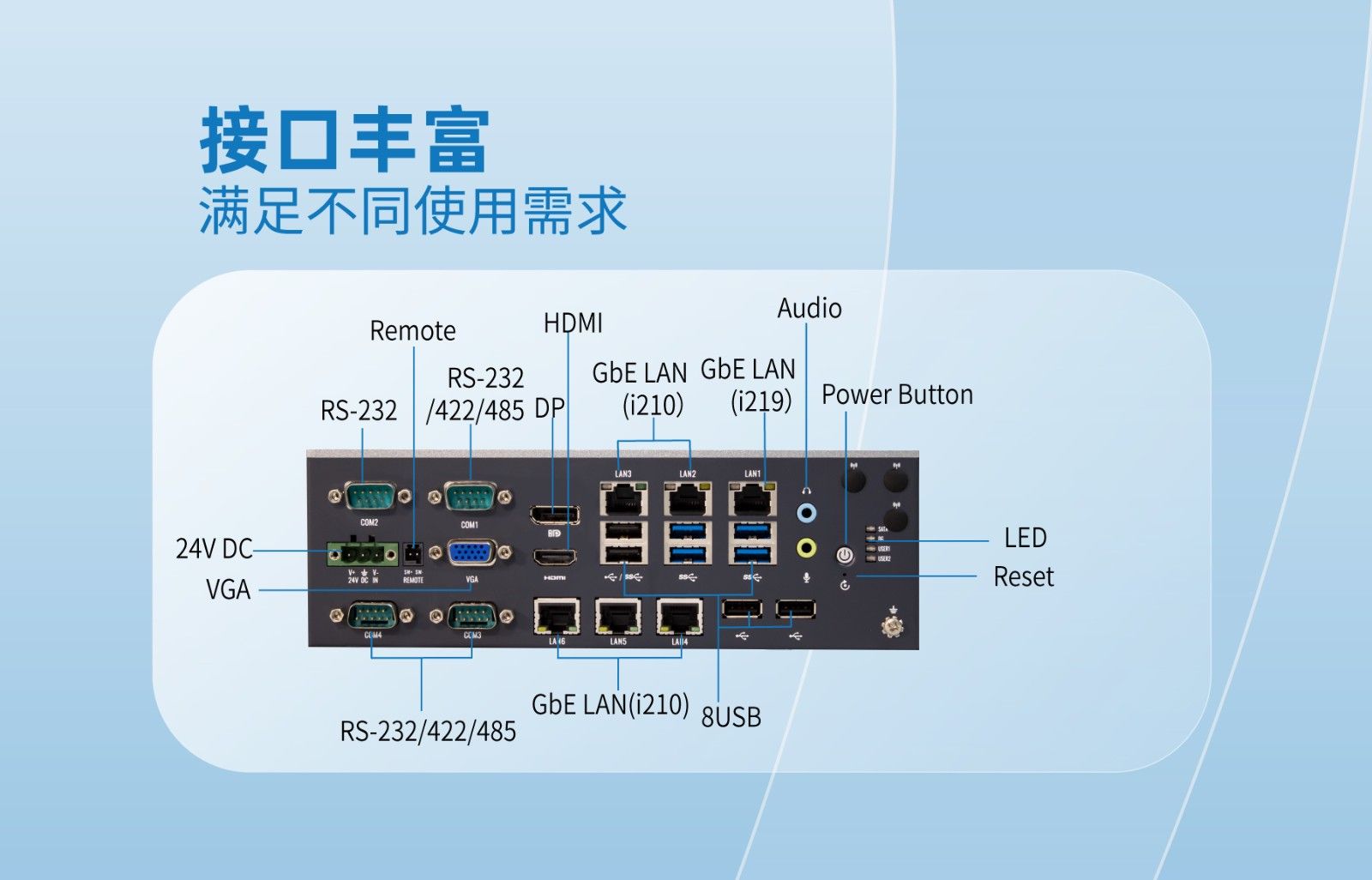

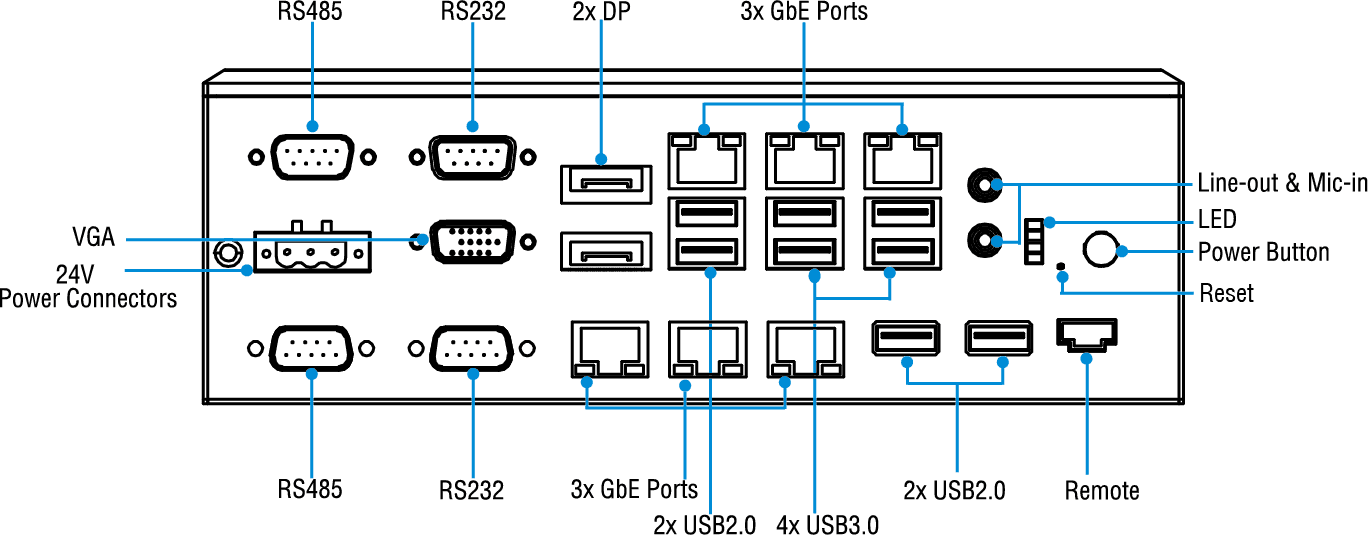

| Audio | I/O | 1xMic-in, 1xLine-out |
| Ethernet | LAN | 5 x Intel® i211-AT / i210-AT GbE |
| LAN | 1 x Intel® i219-LM GbE | |
| I/O Interface | USB | 4xUSB2.0, 4xUSB3.0 |
| COM | 2 x RS232, 2 x RS485 | |
| Remote | 4-pin remote power on/off switch and LED on the front | |
| Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
| USIM | 1xUSIM, Support 3G/4G LTE | |
| Storage | M.2 | 1 x M.2 |
| SATA3.0 | 1 x SATA3.0, For 2.5" SATA storage device | |
| Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Power Supply | DC input | 24V DC IN |
| OS | MicrosoftWindows | Windows 7(Intel® 6th Gen CPU only), Windows 10 64Bit |
| Linux | Yes | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Wall Mounting | |

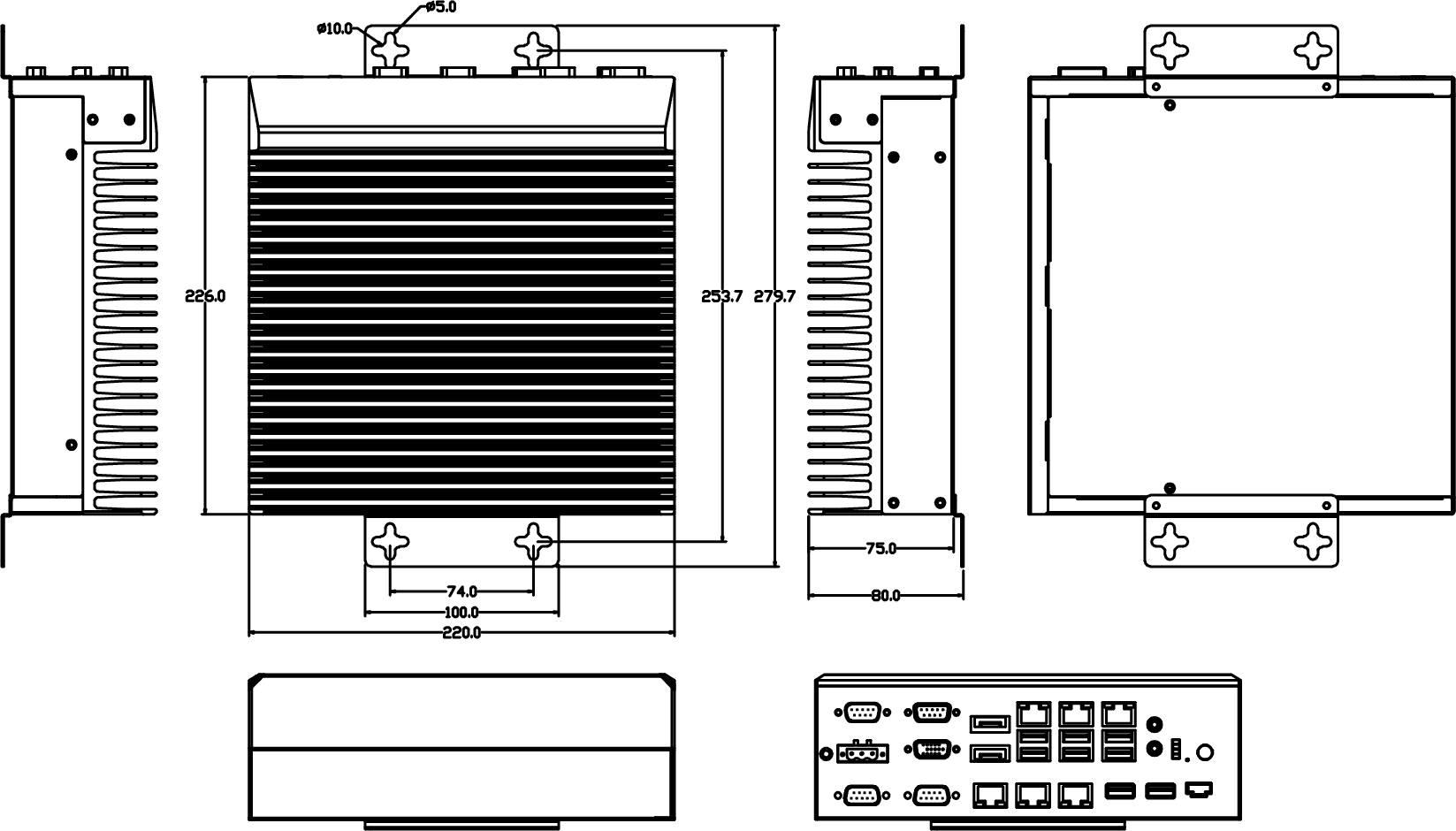

| Dimensions | 220x226x75mm(LxWxH) | |
| Weight | 3.3Kg | |
| Environment | Operating Temperature | 0°C~50°C, Airflow 0.7m / s |
| Storage Temperature | -40°C~80°C | |
| Relative Humidity | 95%@40°C(Non-Condensing) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCCClassB |
面向工业自动化与控制系统的高可靠解决方案。
以高性能计算能力支撑 AI 质检与识别场景。
在网络边缘实现低延迟数据聚合与实时分析。
该产品适用于智能制造、机器视觉、边缘数据采集与网关控制等场景。根据当前规格，可在 Industrial range 条件下承载 7x24 小时持续运行任务，并支持 Windows 7(仅第六代支持)，Windows 10, centos 7/8, ubuntu 18.04~24.04 软件环境。
产品分类：通用；处理器：Intel 第六至九代台式机处理器（LGA1151）；内存：2x DDR4 SO-DIMM（Max.32GB）；网络：N/A；环境温度：Industrial range。以上参数可用于项目初筛与兼容性评估。
当前页面未列出可下载资料，如需驱动、手册或集成文档，请联系技术支持。
E512系列 主要用于 通用 相关项目，适合对稳定性和持续运行能力要求较高的工业场景。
通常可支持 Windows 7(仅第六代支持)，Windows 10, centos 7/8, ubuntu 18.04~24.04。具体以项目镜像、驱动与外设适配要求为准。
支持。可按项目需求提供接口扩展、外观标识与方案级定制。
