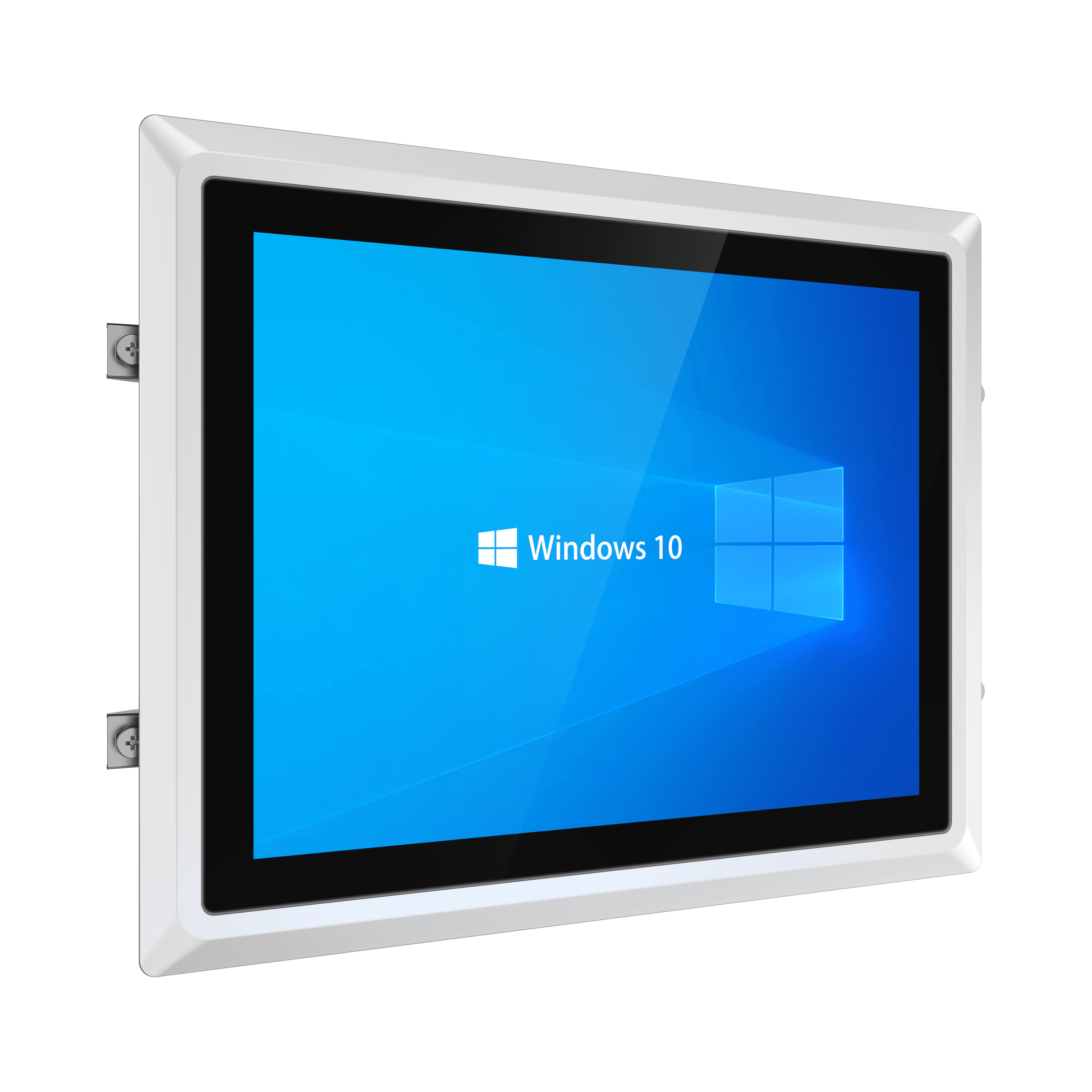

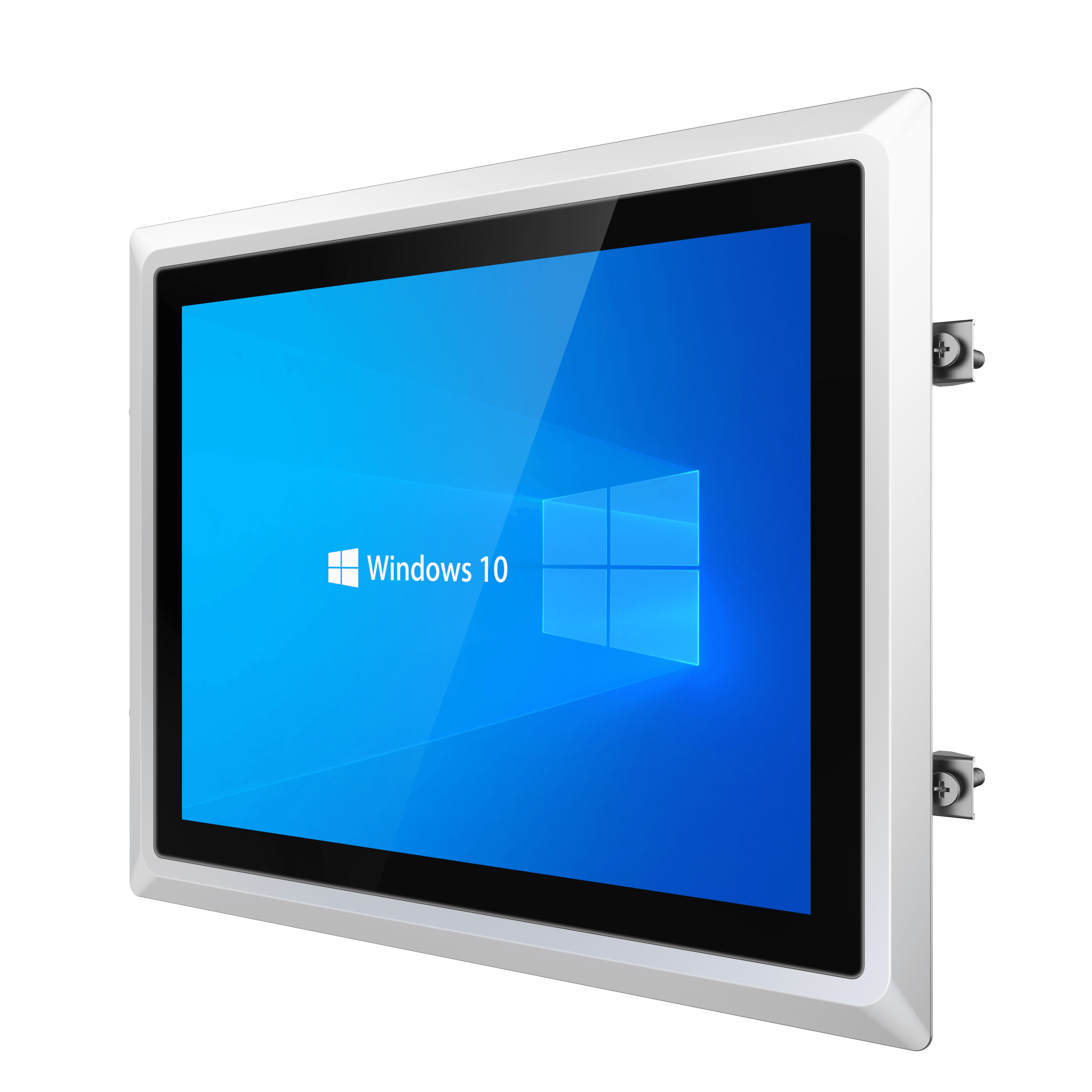

Versatile 12.1" HMI Solution. The LPC-FR121-W is a rugged industrial tablet PC featuring a 12.1-inch LCD with a high-sensitivity capacitive touch screen. Powered by customizable Intel® processors (6th-13th Gen), it offers flexible performance for diverse applications. Its fully enclosed aluminum alloy chassis ensures durability, while the 9-36V wide voltage support makes it reliable for factory automation and smart control systems.
The LPC-FR121-W is a premium 12.1-inch industrial panel PC designed for human-machine interface (HMI) applications. Its fanless design and IP65-rated front panel make it suitable for harsh environments involving dust and moisture. With customizable processing power spanning from Intel 6th to 13th generation, it offers unparalleled flexibility for system integrators.
| Parameter | Specification |
|---|---|
| Processor | Intel® Core™ / Celeron® (Customizable 6th-13th Gen) |
| Memory | Customizable (4GB - 16GB Optional) |
| Display | 12.1" TFT LCD (1024 x 768 Resolution) |
| Touch Screen | Capacitive Touch (10-point) / Resistive Optional |
| Storage | 1x M.2 SSD, 1x 2.5" HDD/SSD (Customizable) |
| Network | 2x Gigabit Ethernet (RJ45) |
| I/O Interface | 2x USB 3.0, 2x COM (Optional 6x COM), 1x HDMI |
| Expansion | 1x MiniPCIe (WiFi/BT), GPIO Optional |
| Power Input | DC 12V / 9V-36V (5A) |

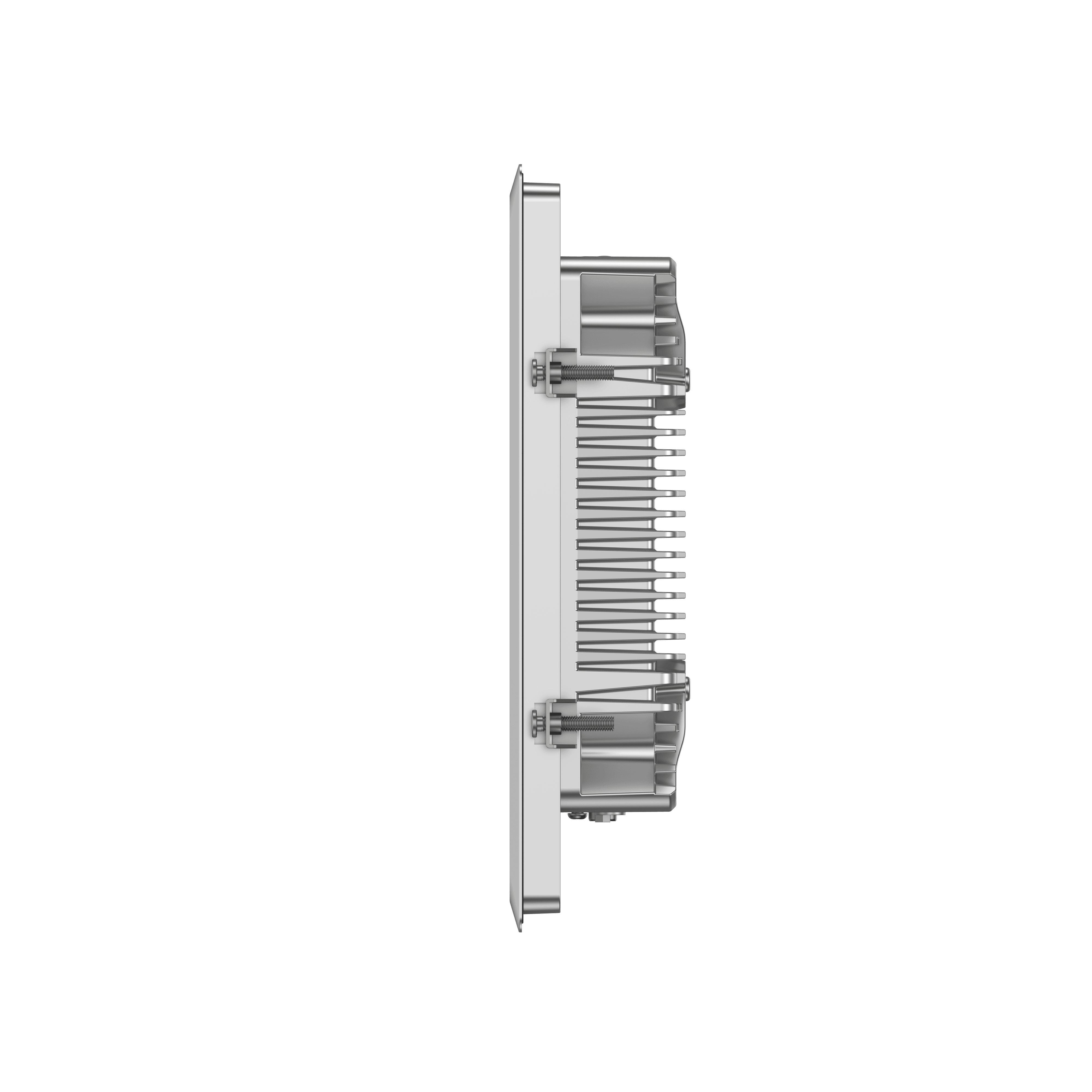

| Dimensions | Refer to Size Chart (Approx 58.5mm thickness) |
| OS Support | Windows 10/11, Linux |

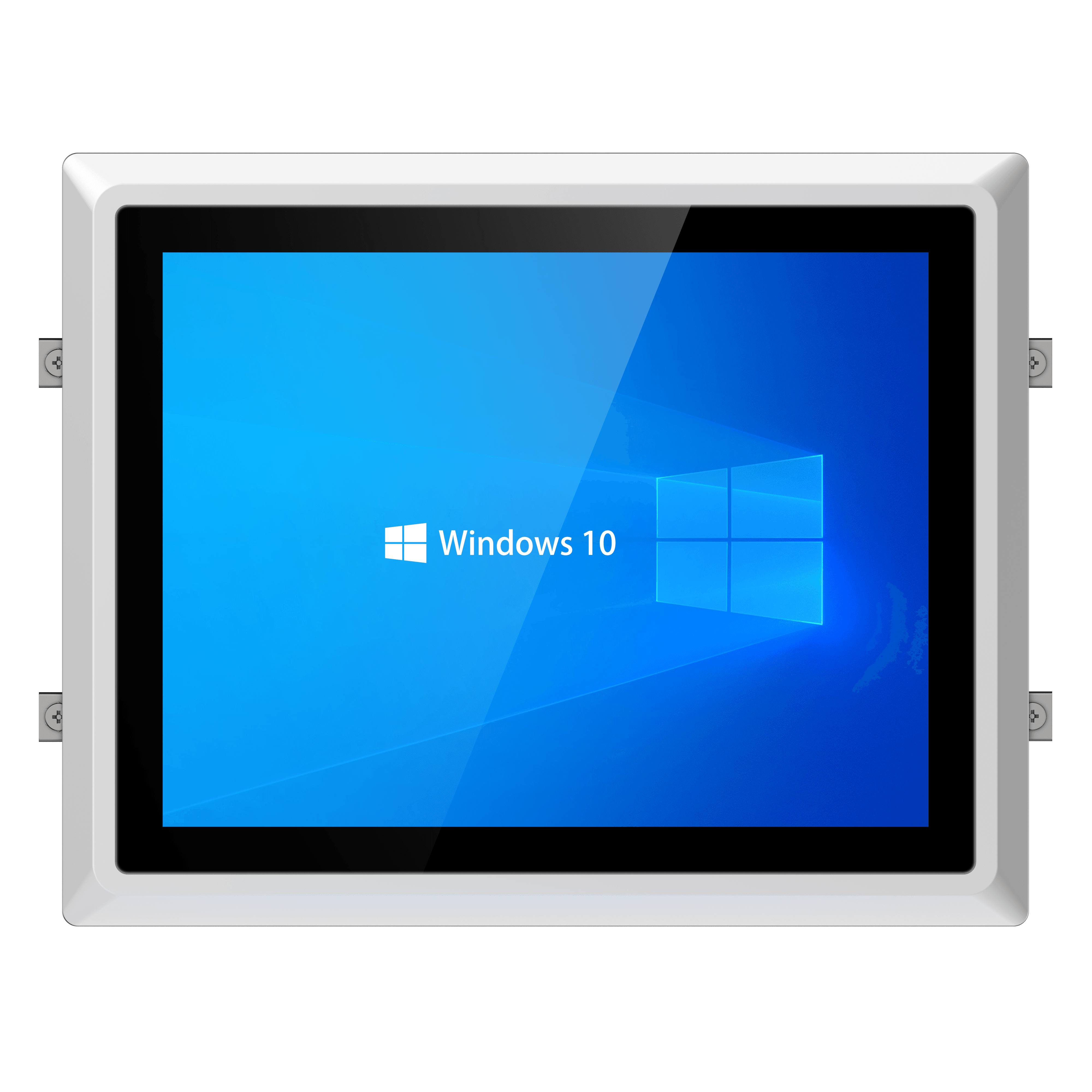

Features a 12.1-inch TFT LCD (1024x768) with a precise 10-point capacitive touch screen (Resistive optional).
Compatible with a wide range of Intel® Core™ and Celeron® processors (6th to 13th Gen) to meet specific performance needs.

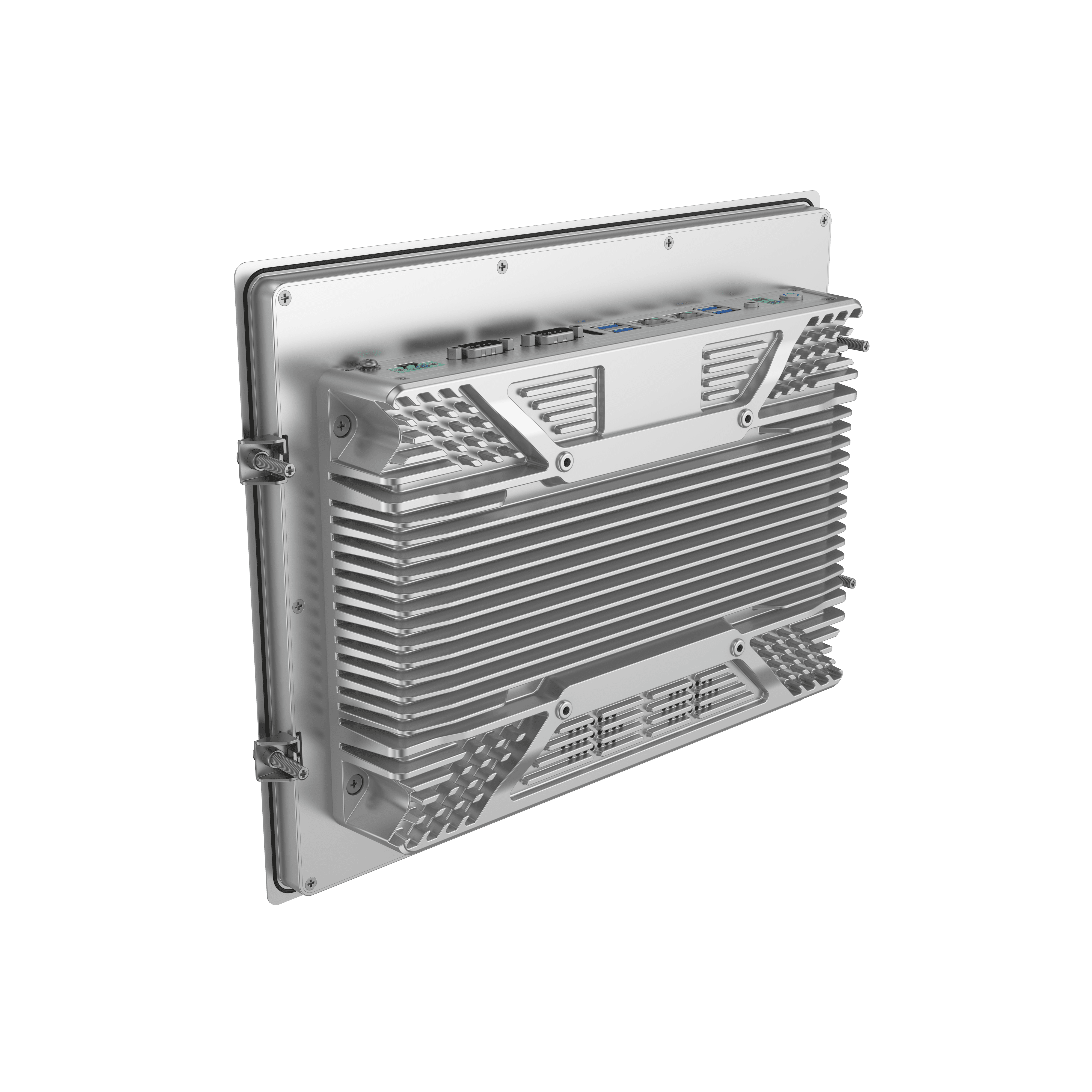

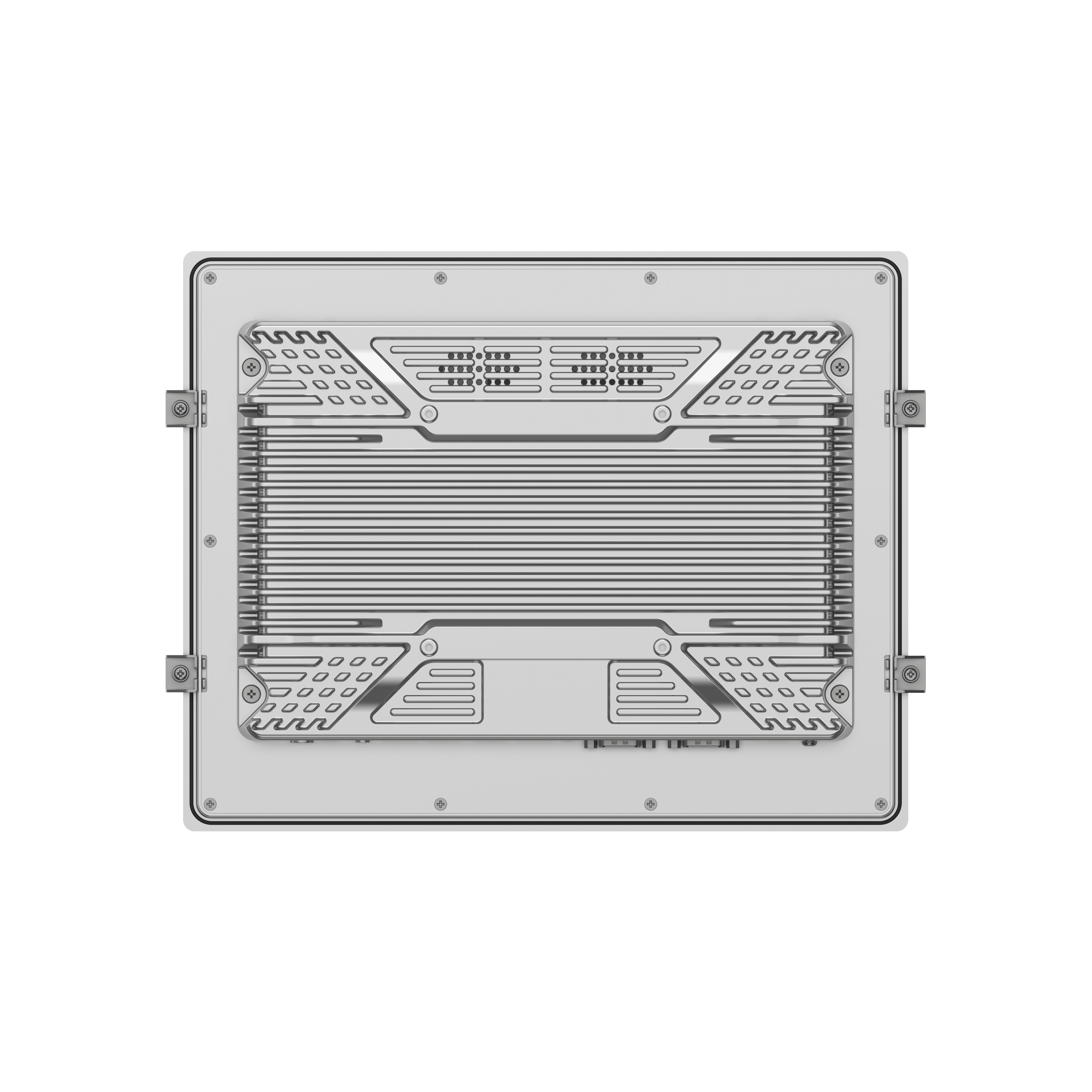

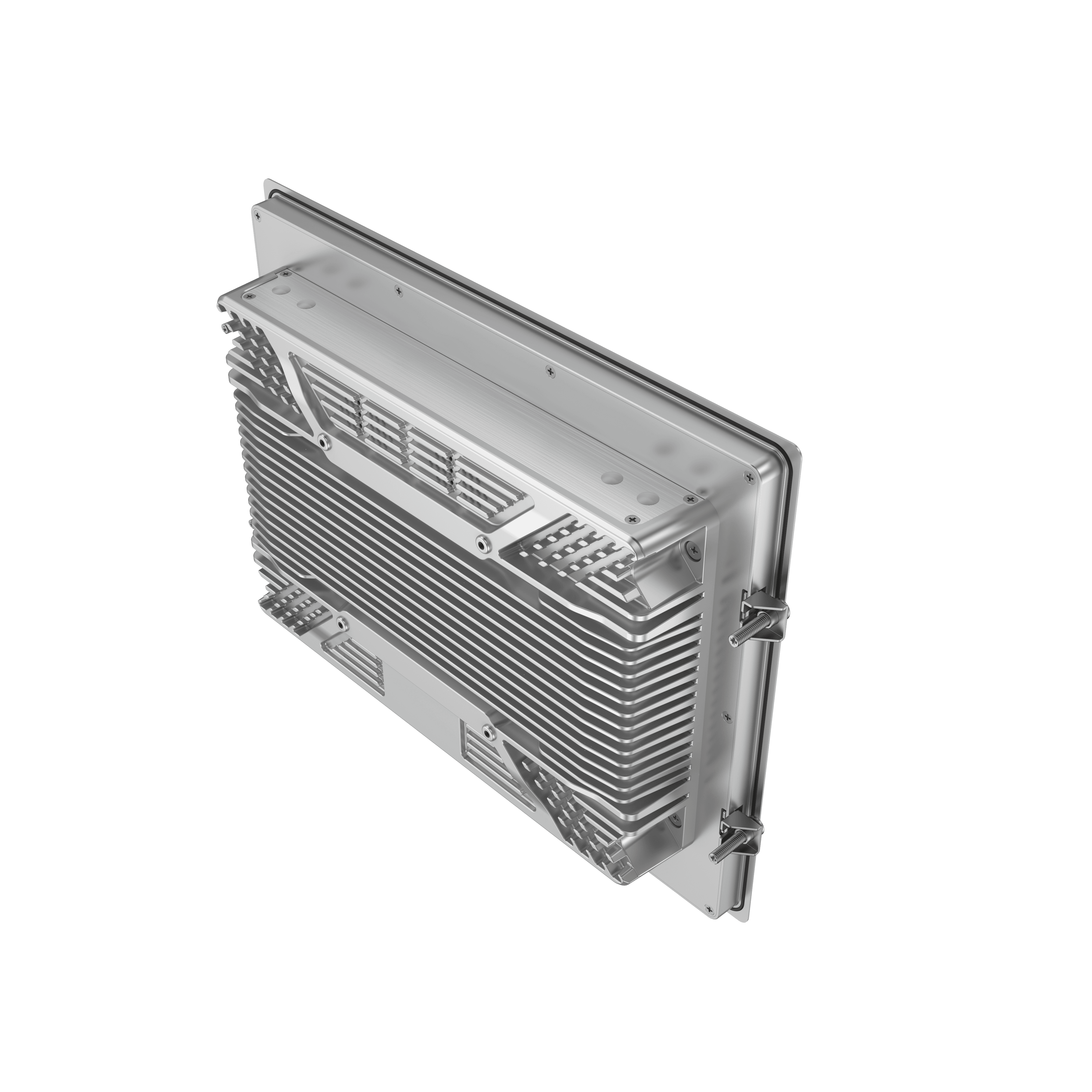

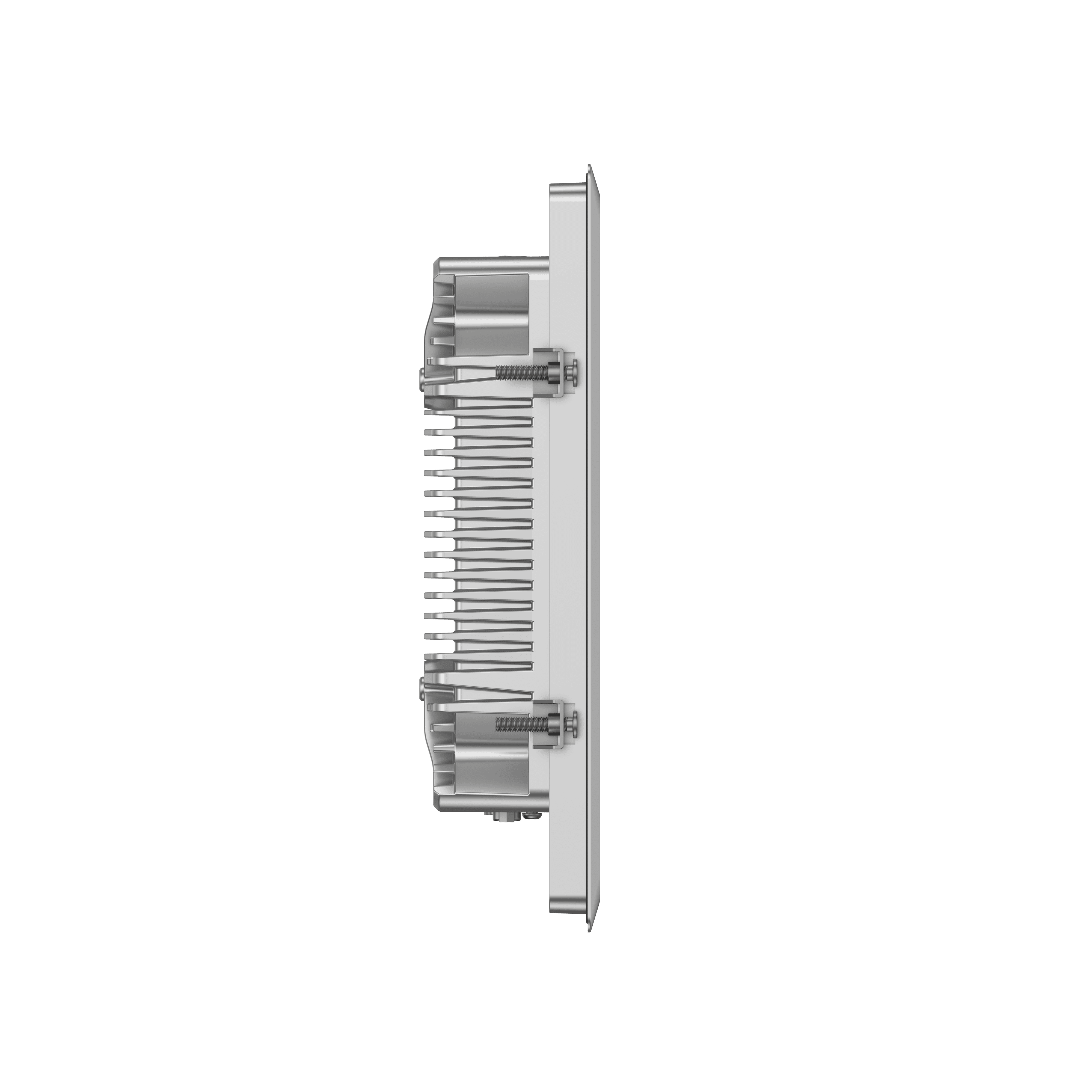

Fully enclosed die-cast aluminum alloy body provides excellent heat dissipation, dust protection, and vibration resistance.

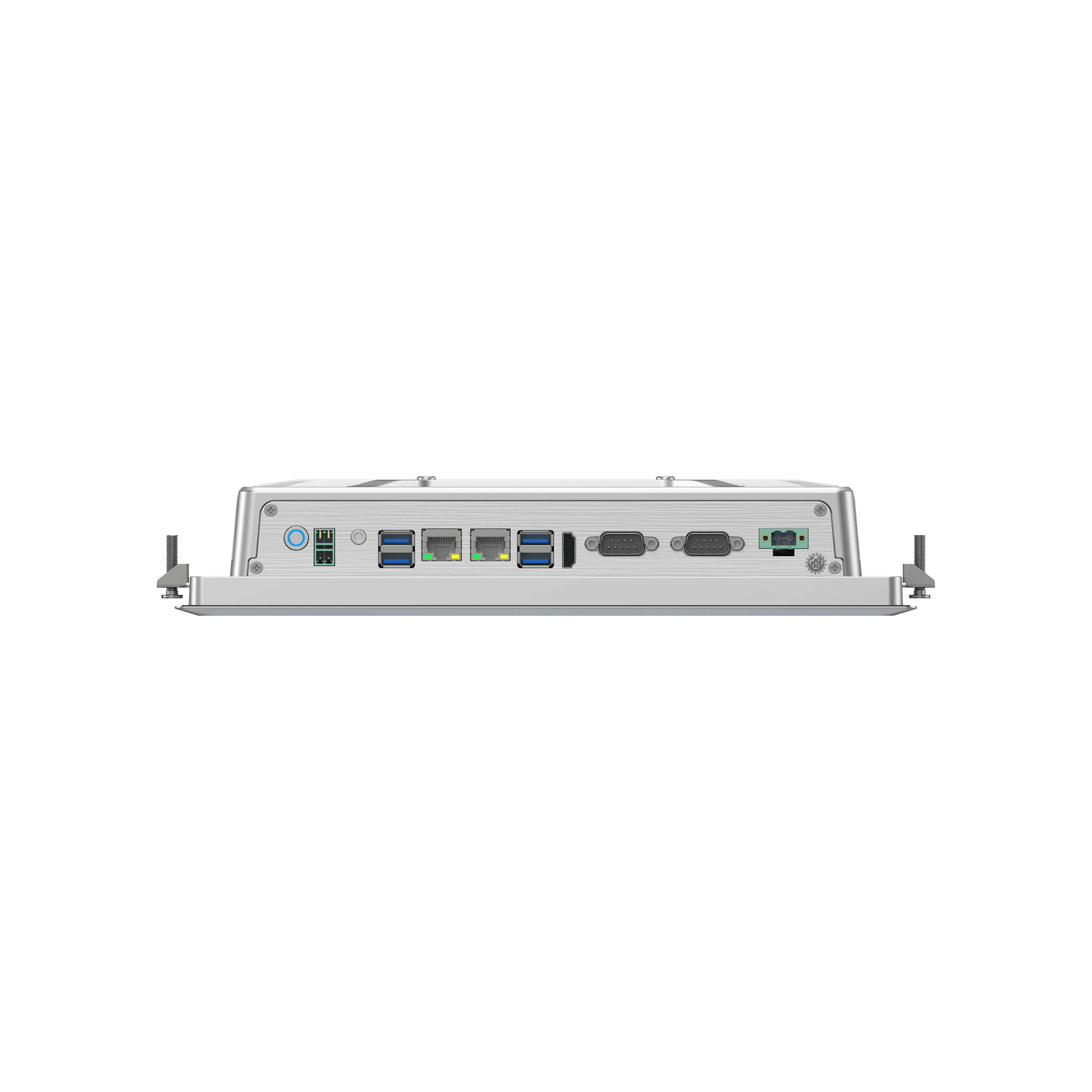

Equipped with 2x COM, 2x Gigabit LAN, and 2x USB 3.0 ports, with options to expand up to 6x COM ports.
Supports DC 12V input with an option for 9-36V wide voltage, ensuring stability in industrial power environments.
Optimized solutions for high-reliability industrial automation and control systems.
Powerful computing performance to support AI-driven quality inspection and recognition.
Low-latency processing at the edge for IoT data aggregation and real-time analysis.
PDF | 0.01 MB
This model is suitable for factory automation, machine vision, edge data collection, and gateway control. Based on the current specification set, it can be deployed in continuous 24/7 workloads under -20°C ~ 60°C conditions with Windows 10, Windows 11, Linux software stacks.
Category: All-in-one IPC. CPU: Intel® Core™ / Celeron® (Customizable 6th-13th Gen). Memory: Customizable (4GB - 16GB Optional). Network: 2x Gigabit Ethernet. Operating environment: -20°C ~ 60°C. These parameters make it easier to evaluate compatibility during industrial project selection.
This product currently provides 1 downloadable resources (drivers, manuals, or related files). Use these files for faster evaluation and integration.
LPC-FR121-W 12.1" Industrial Panel PC is mainly used for All-in-one IPC projects requiring reliable industrial computing and stable long-term operation.
Typical environments include Windows 10, Windows 11, Linux. Final support depends on the project image, driver stack, and peripheral requirements.
Yes. Interface expansion, branding, and project-specific customization are available for industrial deployments.
