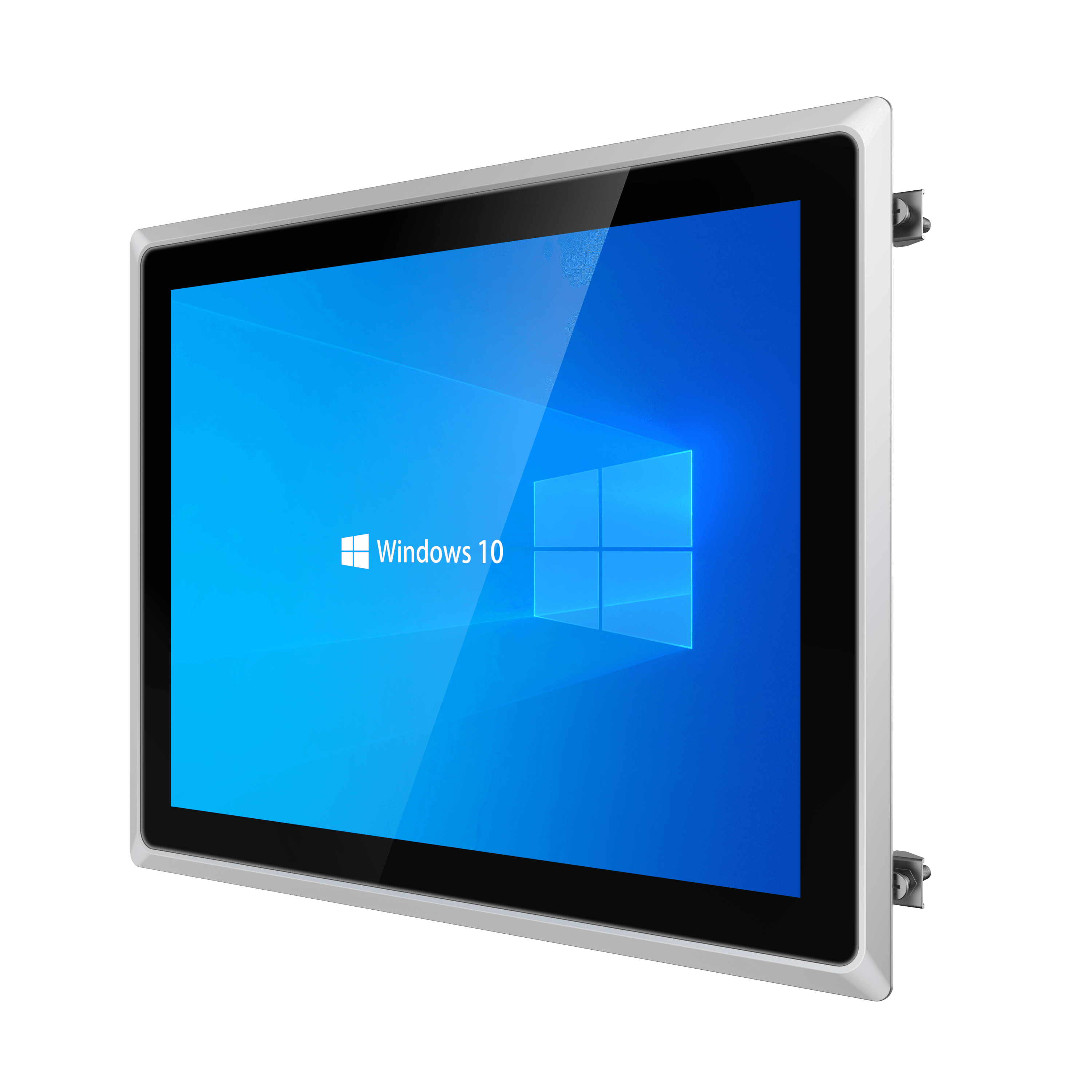

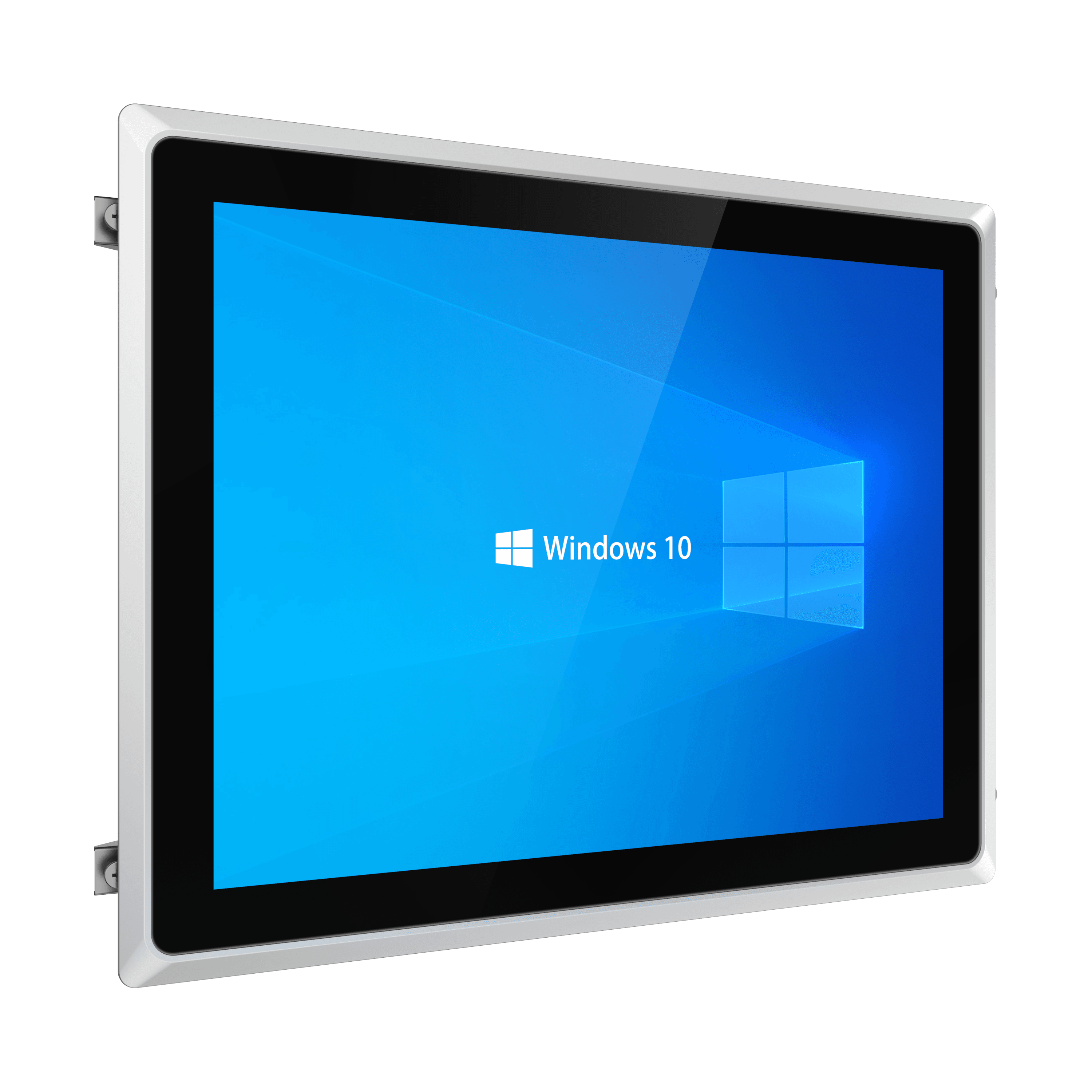

Robust 15" HMI Workstation. The LPC-FR150-W is a high-performance industrial panel PC featuring a large 15-inch TFT LCD (1024x768) with a responsive 10-point capacitive touch screen. Powered by customizable Intel® processors (6th-13th Gen), it ensures seamless operation for complex industrial tasks. Its fully enclosed aluminum alloy chassis (~64mm thick) and 9-36V wide voltage support make it reliable for factory automation and monitoring.
The LPC-FR150-W is a robust 15-inch industrial panel PC designed for demanding HMI and control applications. Featuring a fanless design and a sturdy aluminum enclosure, it delivers reliable operation in harsh environments. With customizable processing power spanning from Intel 6th to 13th generation, it offers the performance required for modern smart factories.
| Parameter | Specification |
|---|---|
| Processor | Intel® Core™ / Celeron® (Customizable 6th-13th Gen) |
| Memory | Customizable (4GB - 16GB Optional) |
| Display | 15" TFT LCD (1024 x 768 Resolution) |
| Touch Screen | Capacitive Touch (10-point) / Resistive Optional |
| Storage | 1x M.2 SSD, 1x 2.5" HDD/SSD (Customizable) |
| Network | 2x Gigabit Ethernet (RJ45) |
| I/O Interface | 2x USB 3.0, 2x COM (Optional 6x COM), 1x HDMI |
| Expansion | 1x MiniPCIe (WiFi/BT), GPIO Optional |
| Power Input | DC 12V / 9V-36V (5A) |
| Dimensions | Refer to Size Chart (Approx 64mm thickness) |
| OS Support | Windows 10/11, Linux |

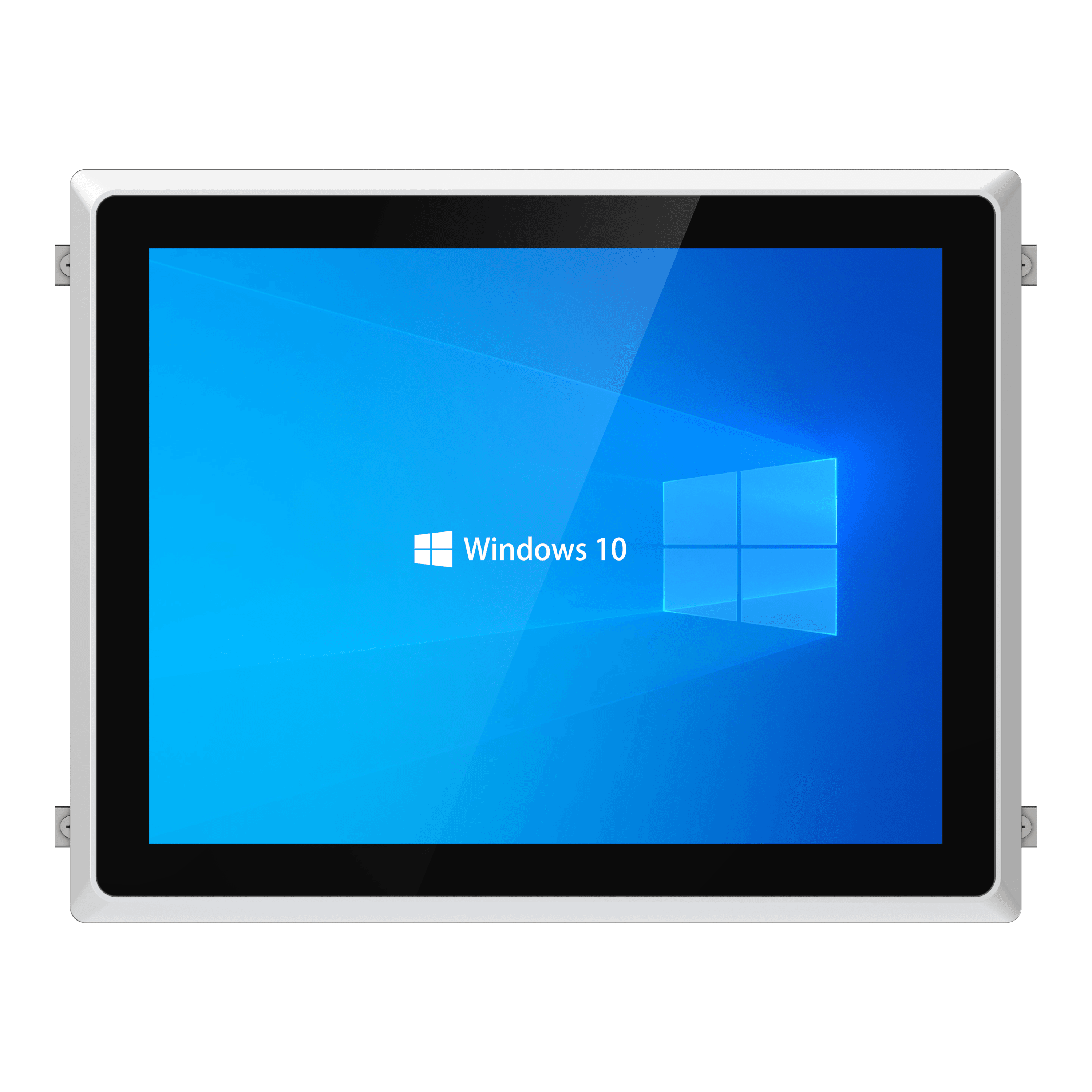

Features a clear 15-inch display (1024x768) and a durable 10-point capacitive touch screen (Resistive optional).
Compatible with a wide range of Intel® Core™ and Celeron® processors (6th to 13th Gen) to meet specific performance needs.

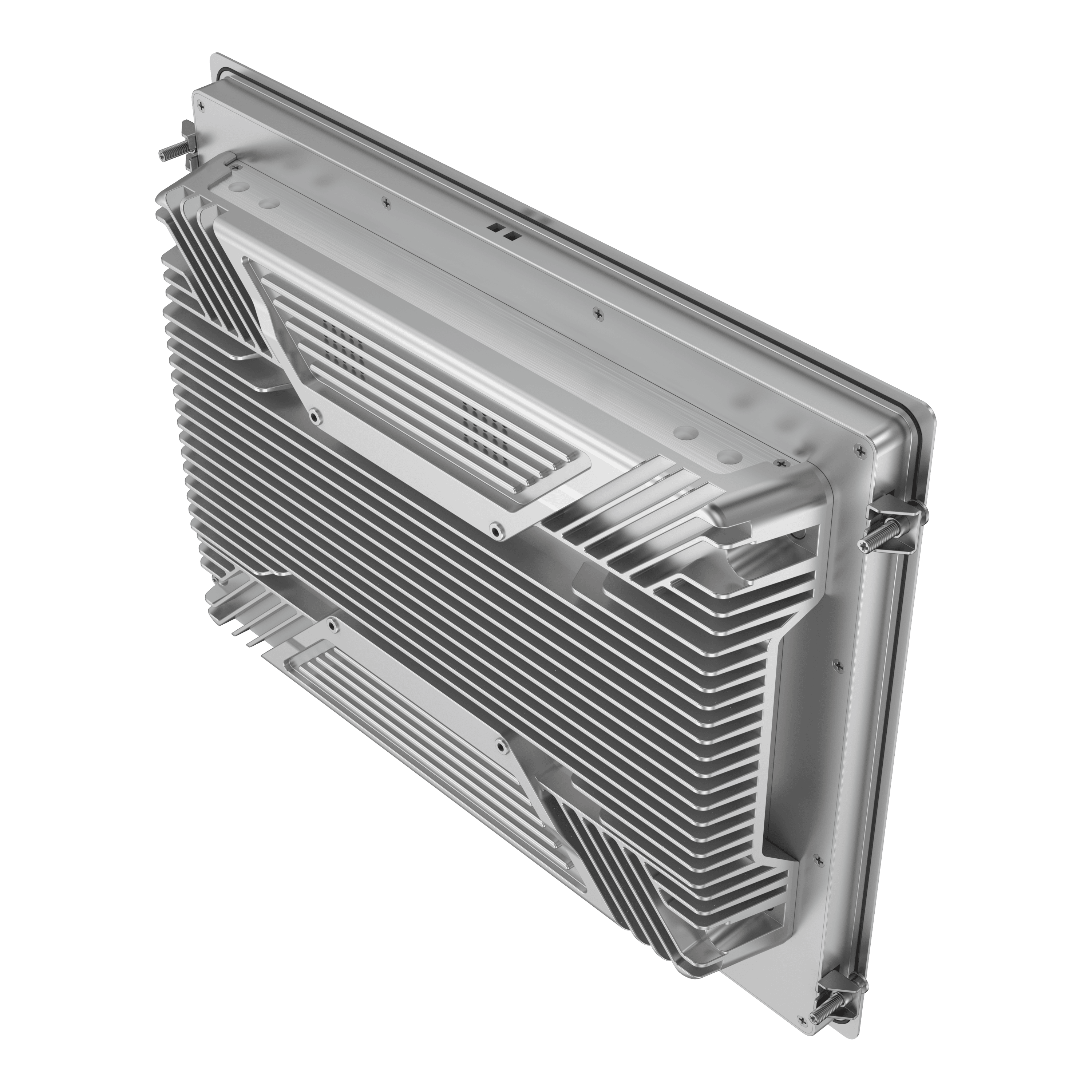

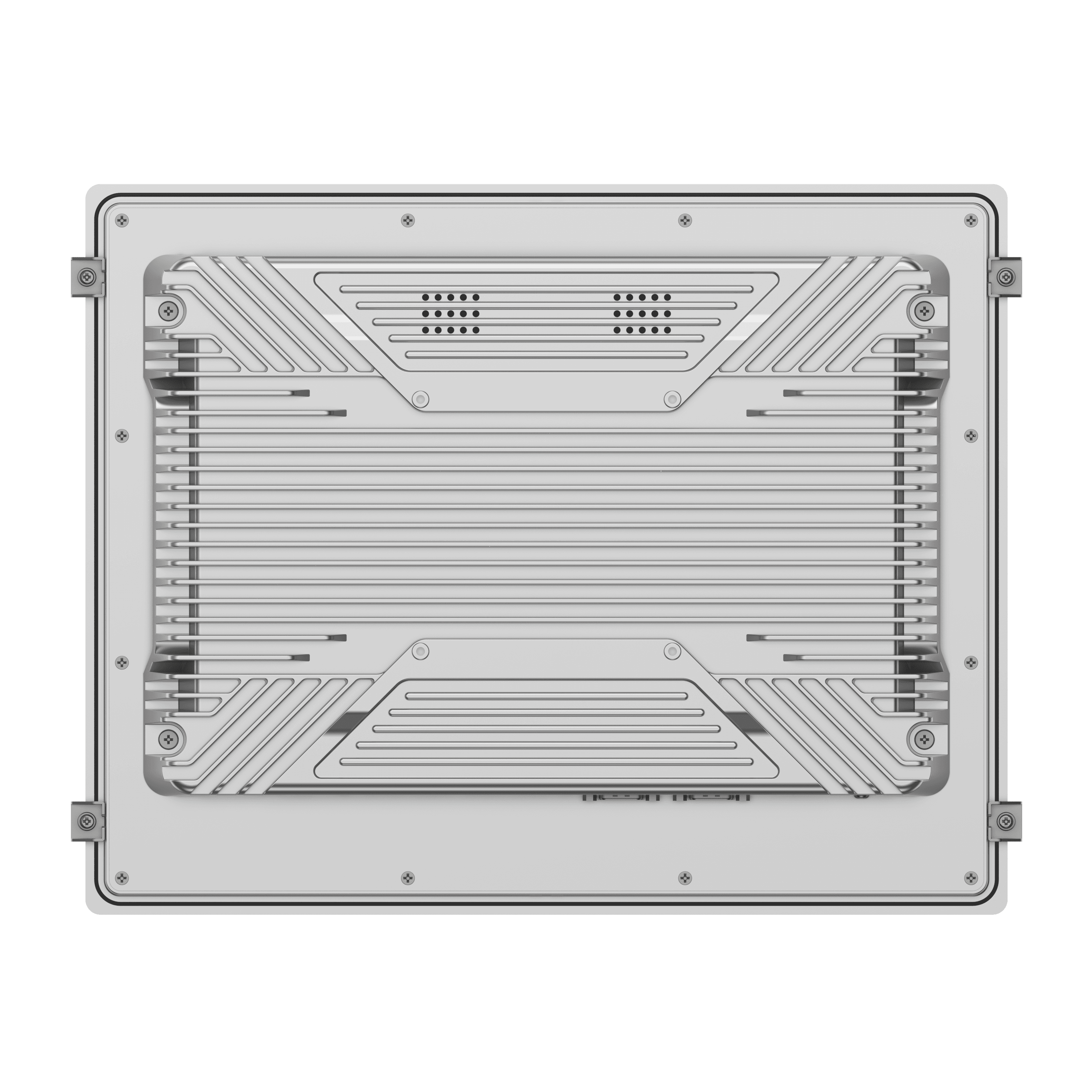

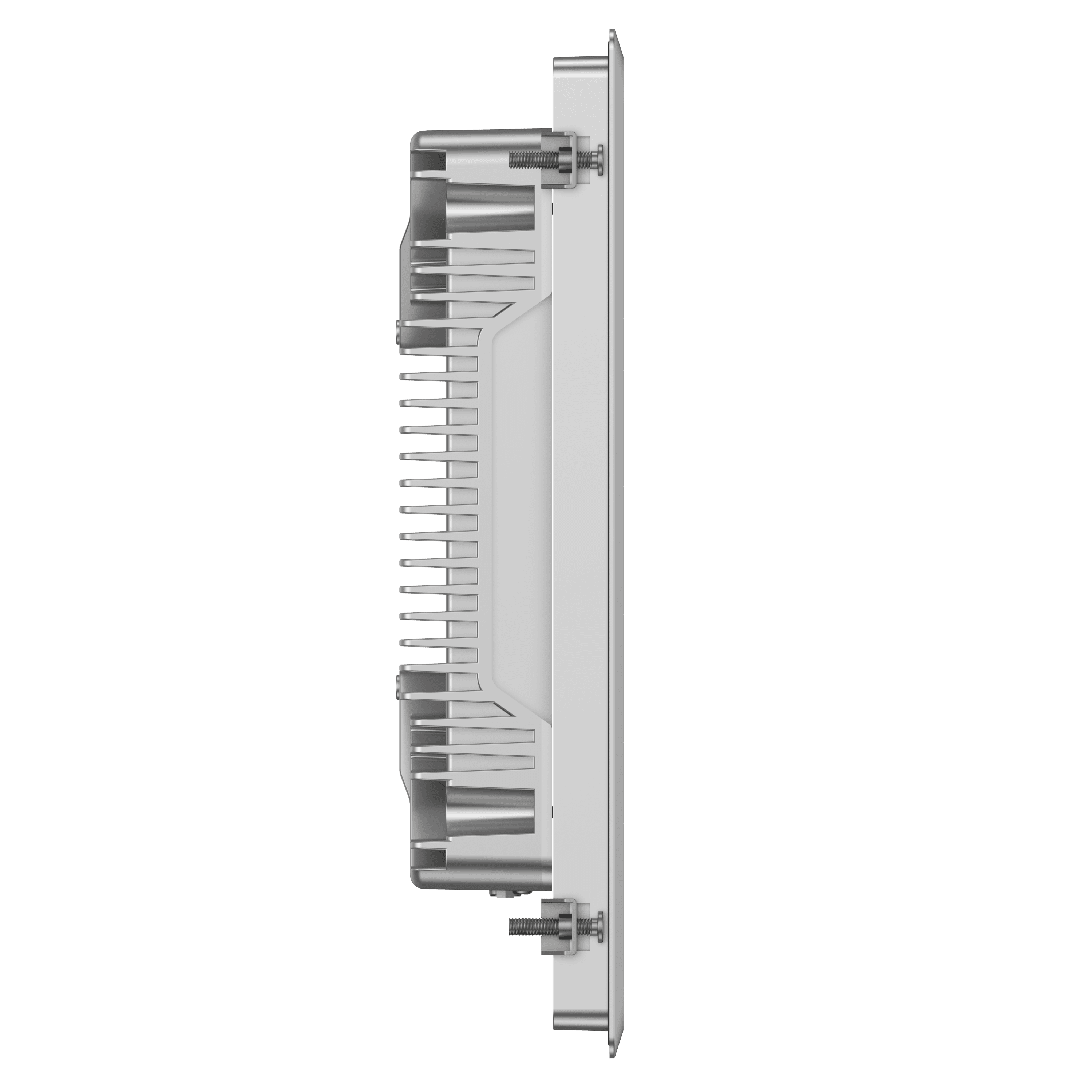

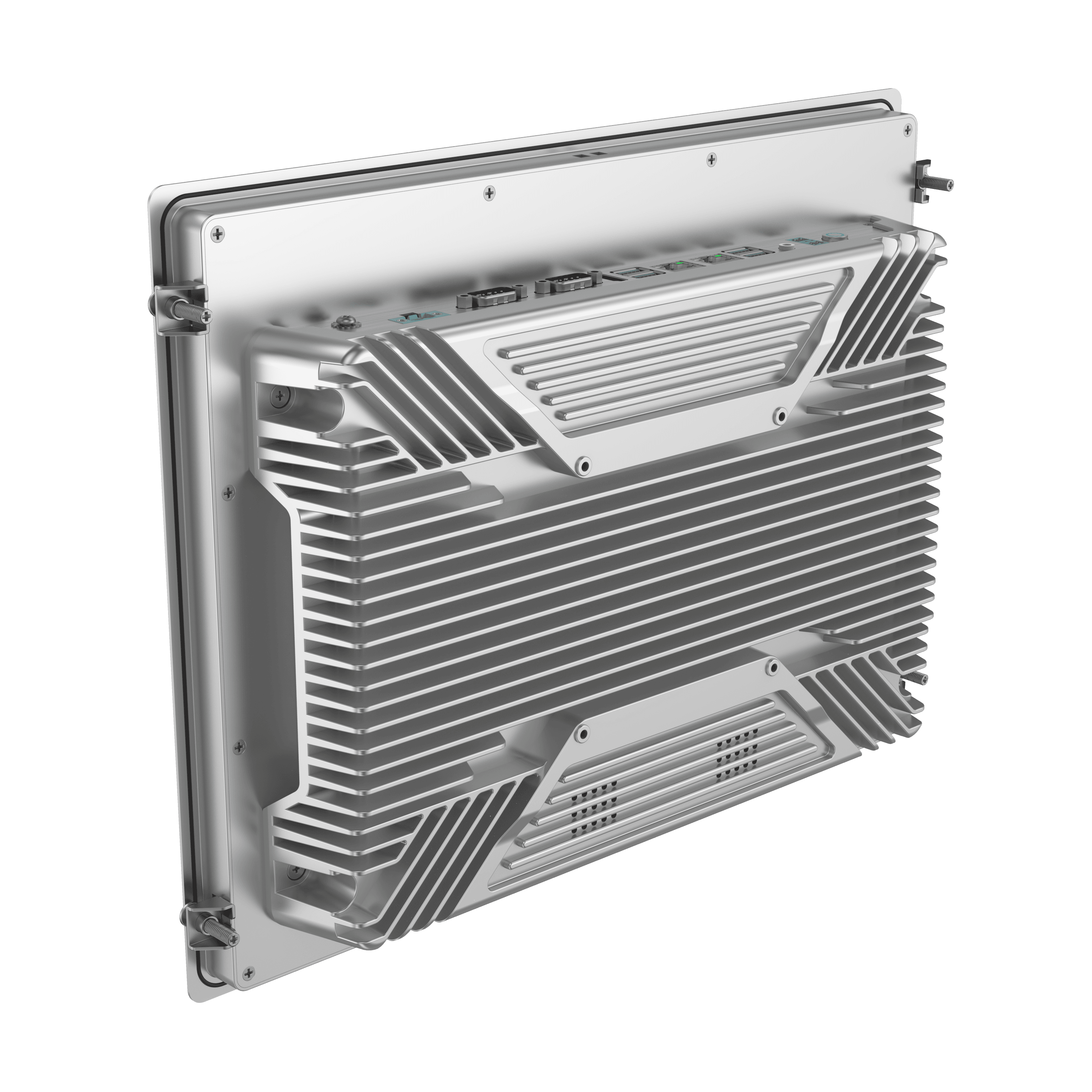

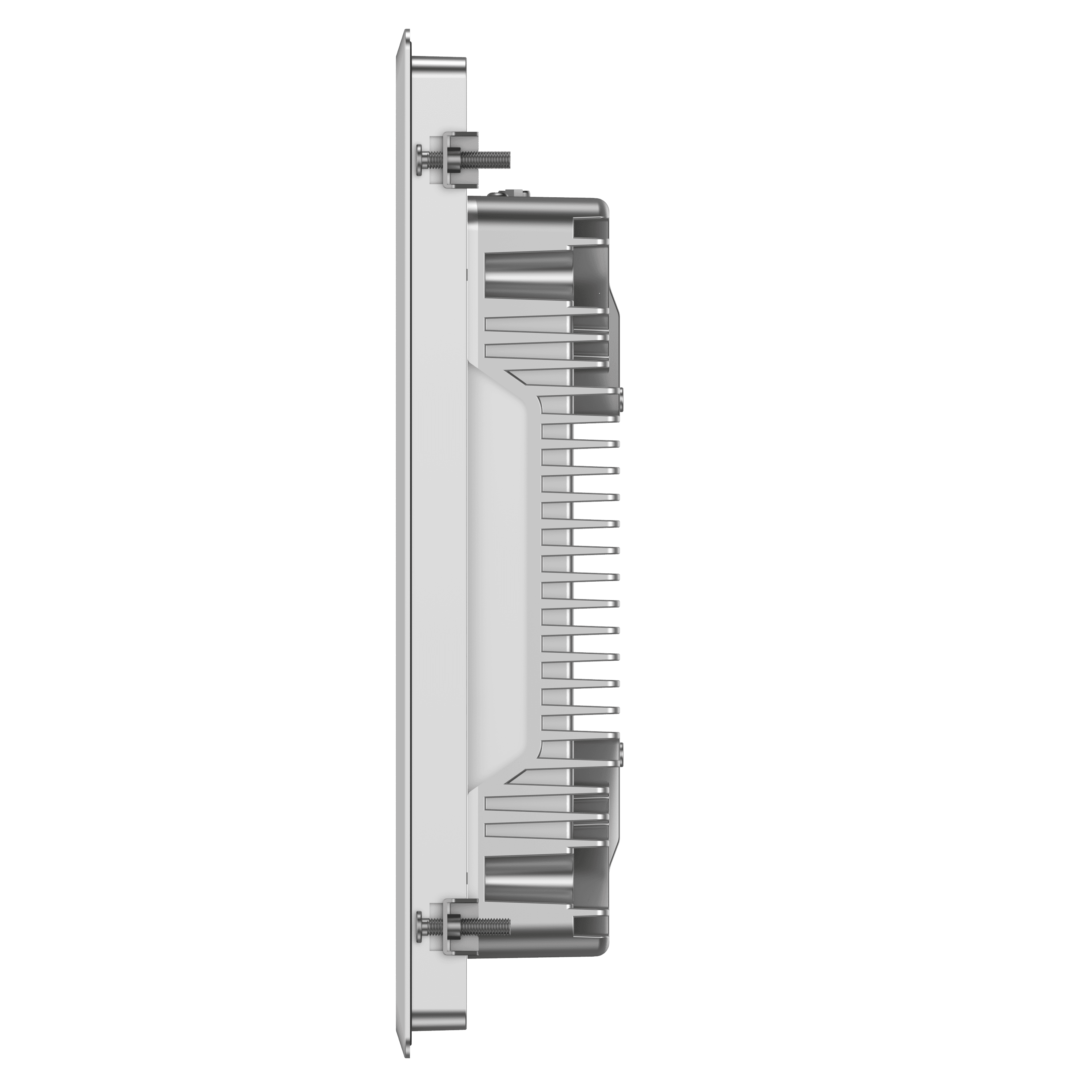

Fully enclosed die-cast aluminum alloy body (~64mm thick) provides excellent heat dissipation, dust protection, and vibration resistance.

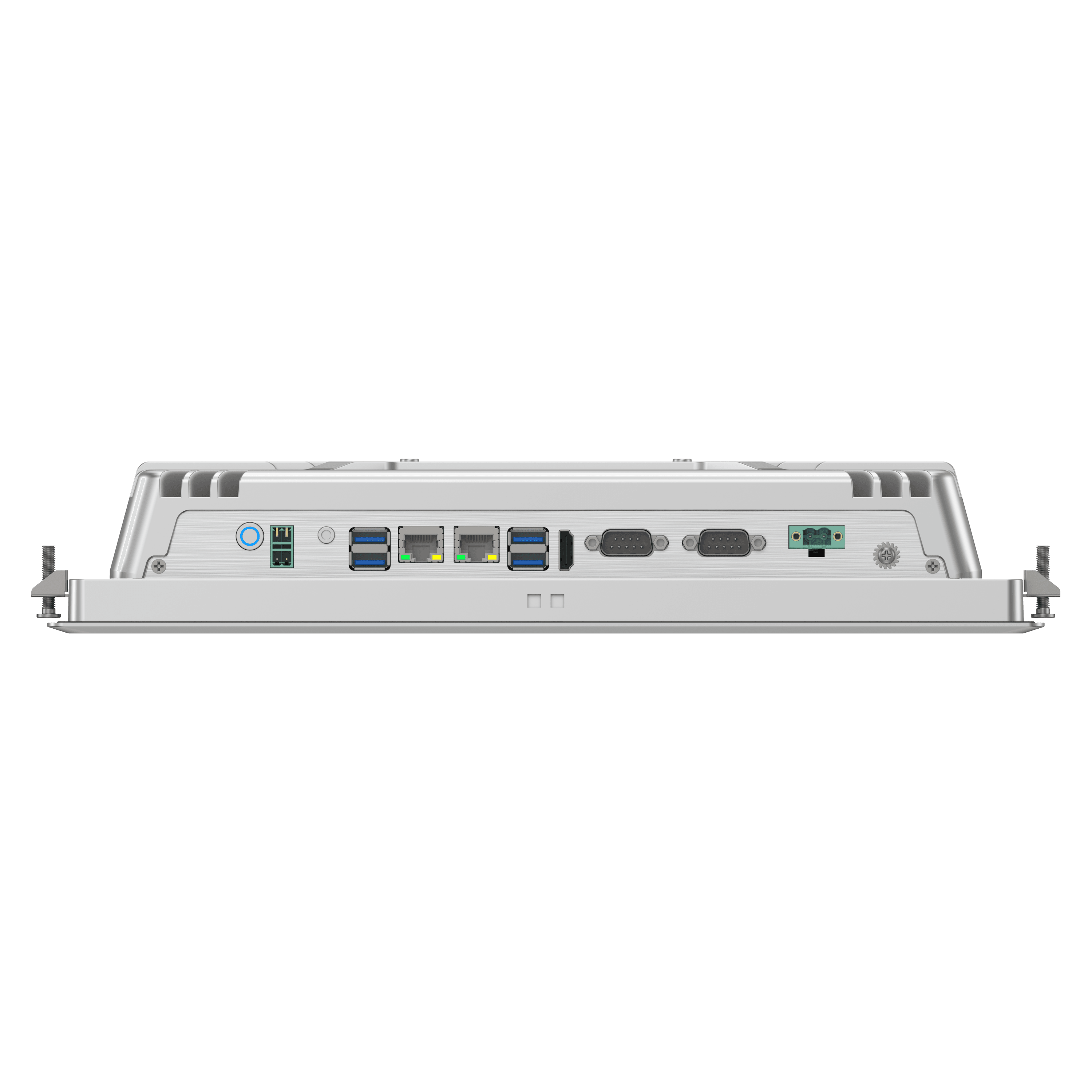

Equipped with 2x COM (Optional 6x), 2x Gigabit LAN, and 2x USB 3.0 ports for diverse industrial peripherals.
Supports DC 12V input with an option for 9-36V wide voltage, ensuring stability in industrial power environments.
Optimized solutions for high-reliability industrial automation and control systems.
Powerful computing performance to support AI-driven quality inspection and recognition.
Low-latency processing at the edge for IoT data aggregation and real-time analysis.
PDF | 0.01 MB
This model is suitable for factory automation, machine vision, edge data collection, and gateway control. Based on the current specification set, it can be deployed in continuous 24/7 workloads under -20°C ~ 60°C conditions with Windows 10, Windows 11, Linux software stacks.
Category: All-in-one IPC. CPU: Intel® Core™ / Celeron® (Customizable 6th-13th Gen). Memory: Customizable (4GB - 16GB Optional). Network: 2x Gigabit Ethernet. Operating environment: -20°C ~ 60°C. These parameters make it easier to evaluate compatibility during industrial project selection.
This product currently provides 1 downloadable resources (drivers, manuals, or related files). Use these files for faster evaluation and integration.
LPC-FR150-W 15" Industrial Panel PC is mainly used for All-in-one IPC projects requiring reliable industrial computing and stable long-term operation.
Typical environments include Windows 10, Windows 11, Linux. Final support depends on the project image, driver stack, and peripheral requirements.
Yes. Interface expansion, branding, and project-specific customization are available for industrial deployments.
