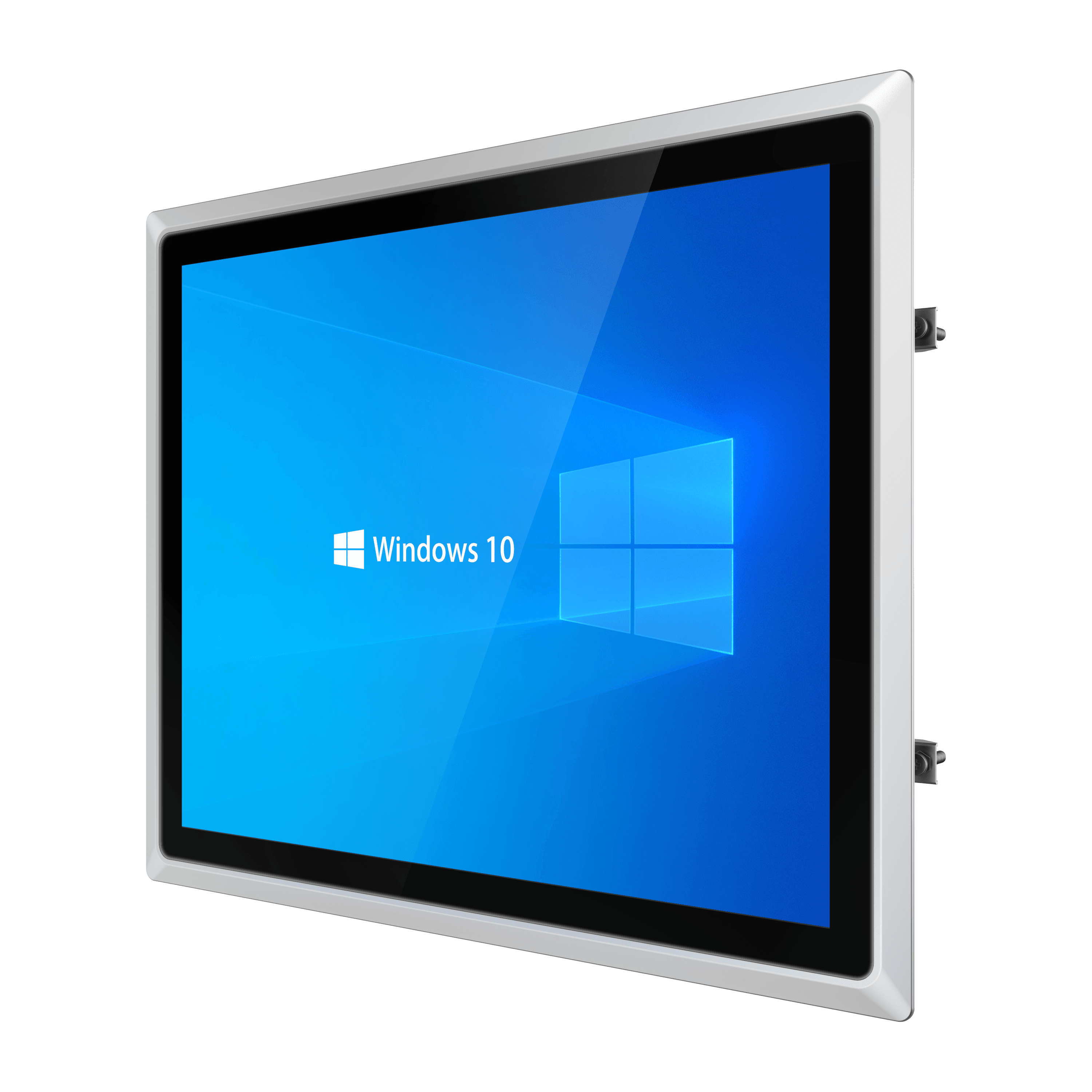

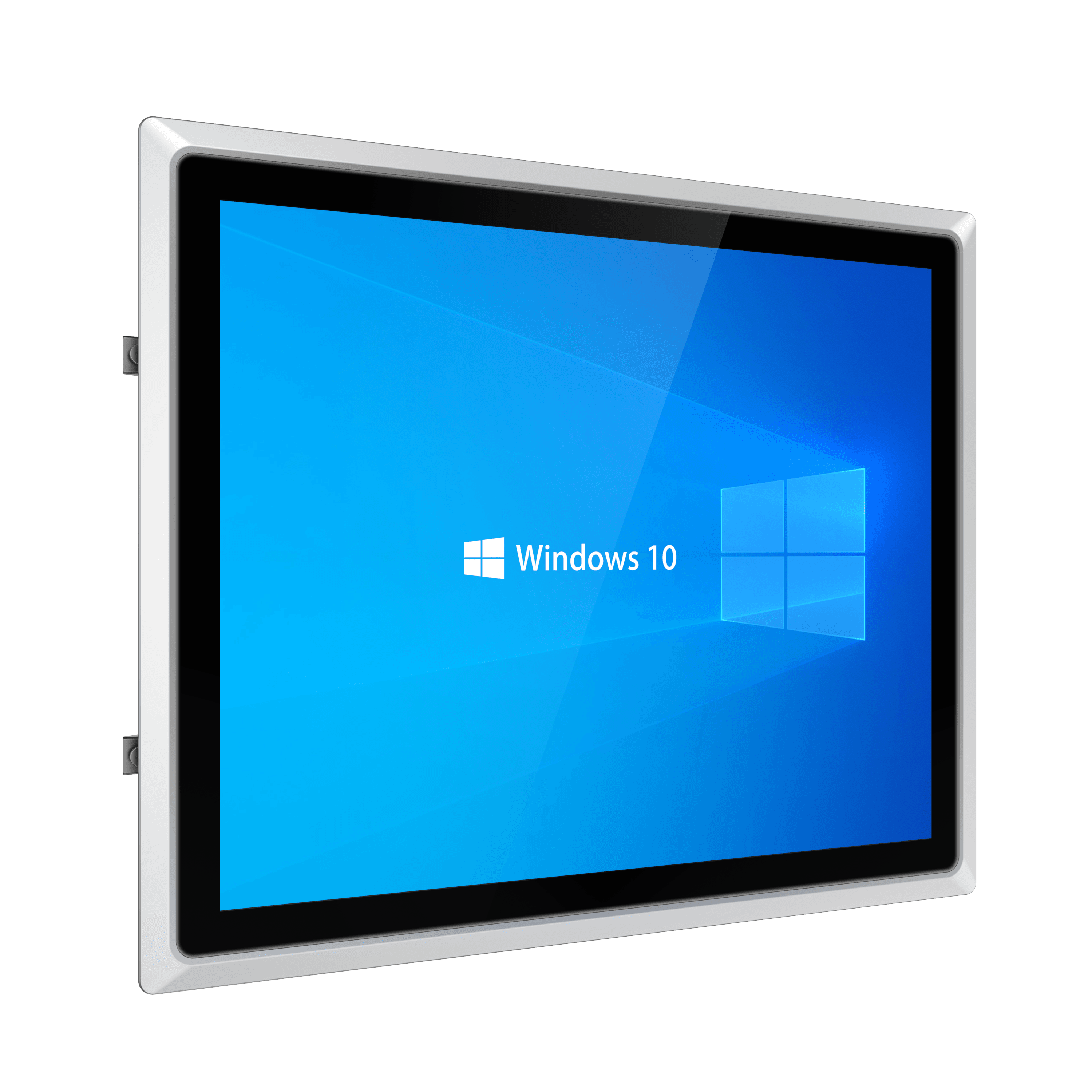

19" High-Visibility HMI. The LPC-FR190-W is a rugged 19-inch industrial panel PC offering a large 1280x1024 display area. Engineered for reliability, it supports customizable Intel® processors (6th-13th Gen) and features a fanless aluminum chassis. With a precise 10-point capacitive touch screen and wide voltage support (9-36V), it is the perfect solution for large-scale industrial control systems.
The LPC-FR190-W is a large-format 19-inch industrial panel PC with a 1280x1024 resolution display. Designed for comprehensive process monitoring, it offers a spacious 4:3 viewing area. Housed in a durable aluminum alloy chassis and powered by customizable Intel® processors (6th to 13th Gen), it delivers reliable performance for factory automation and control room applications.
| Parameter | Specification |
|---|---|
| Processor | Intel® Core™ / Celeron® (Customizable 6th-13th Gen) |
| Memory | Customizable (4GB - 16GB Optional) |
| Display | 19" TFT LCD (1280 x 1024 Resolution, 4:3 Aspect Ratio) |
| Touch Screen | Capacitive Touch (10-point) / Resistive Optional |
| Storage | 1x M.2 SSD, 1x 2.5" HDD/SSD (Customizable) |
| Network | 2x Gigabit Ethernet (RJ45) |
| I/O Interface | 2x USB 3.0, 2x COM (Optional 6x COM), 1x HDMI |
| Expansion | 1x MiniPCIe (WiFi/BT), GPIO Optional |
| Power Input | DC 12V / 9V-36V (5A) |
| Dimensions | Refer to Size Chart (Approx 66.5mm thickness) |
| OS Support | Windows 10/11, Linux |

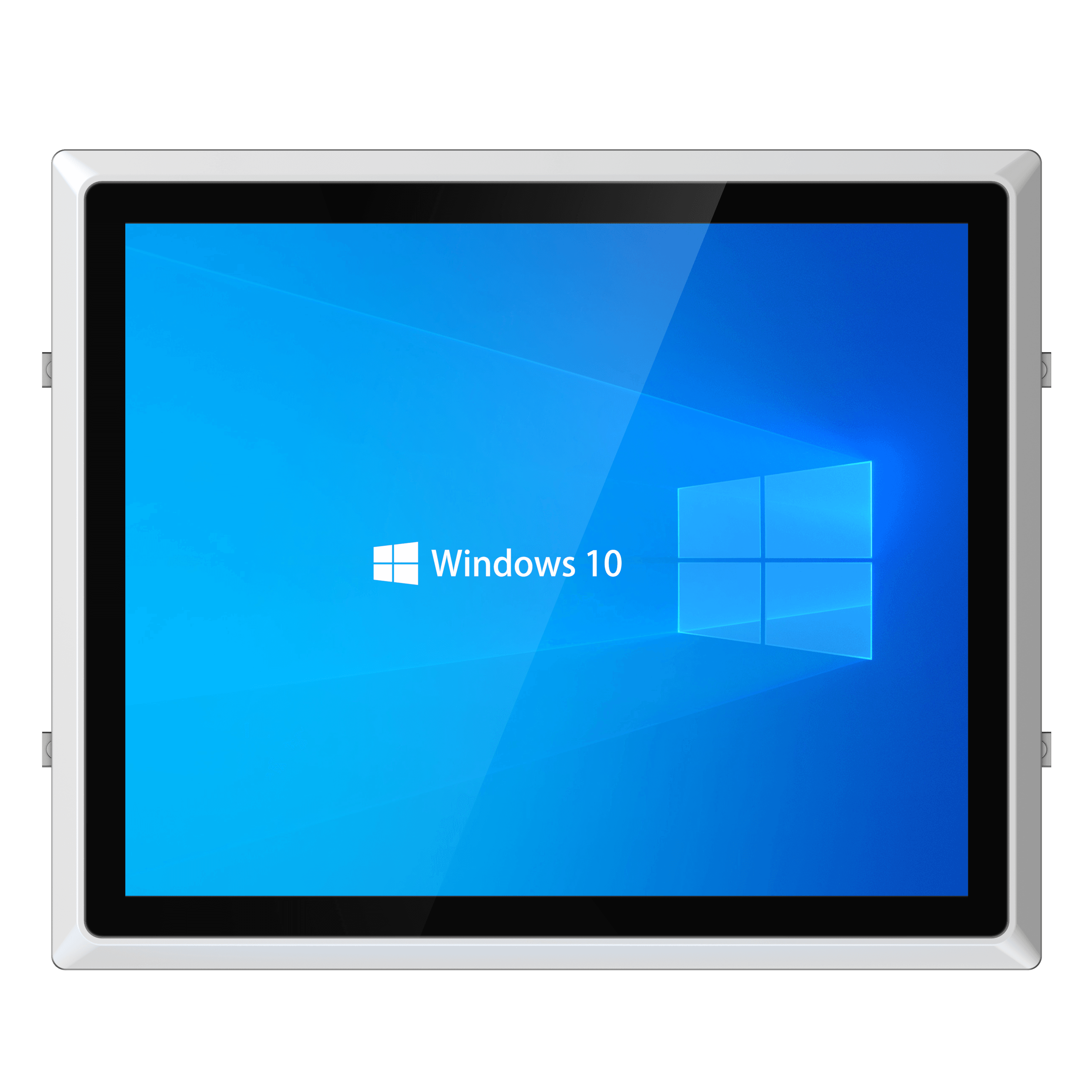

Equipped with a large 19-inch 1280x1024 LCD (4:3 ratio), providing ample screen real estate for complex monitoring.
Compatible with a wide range of Intel® Core™ and Celeron® processors (6th to 13th Gen) to meet specific performance needs.

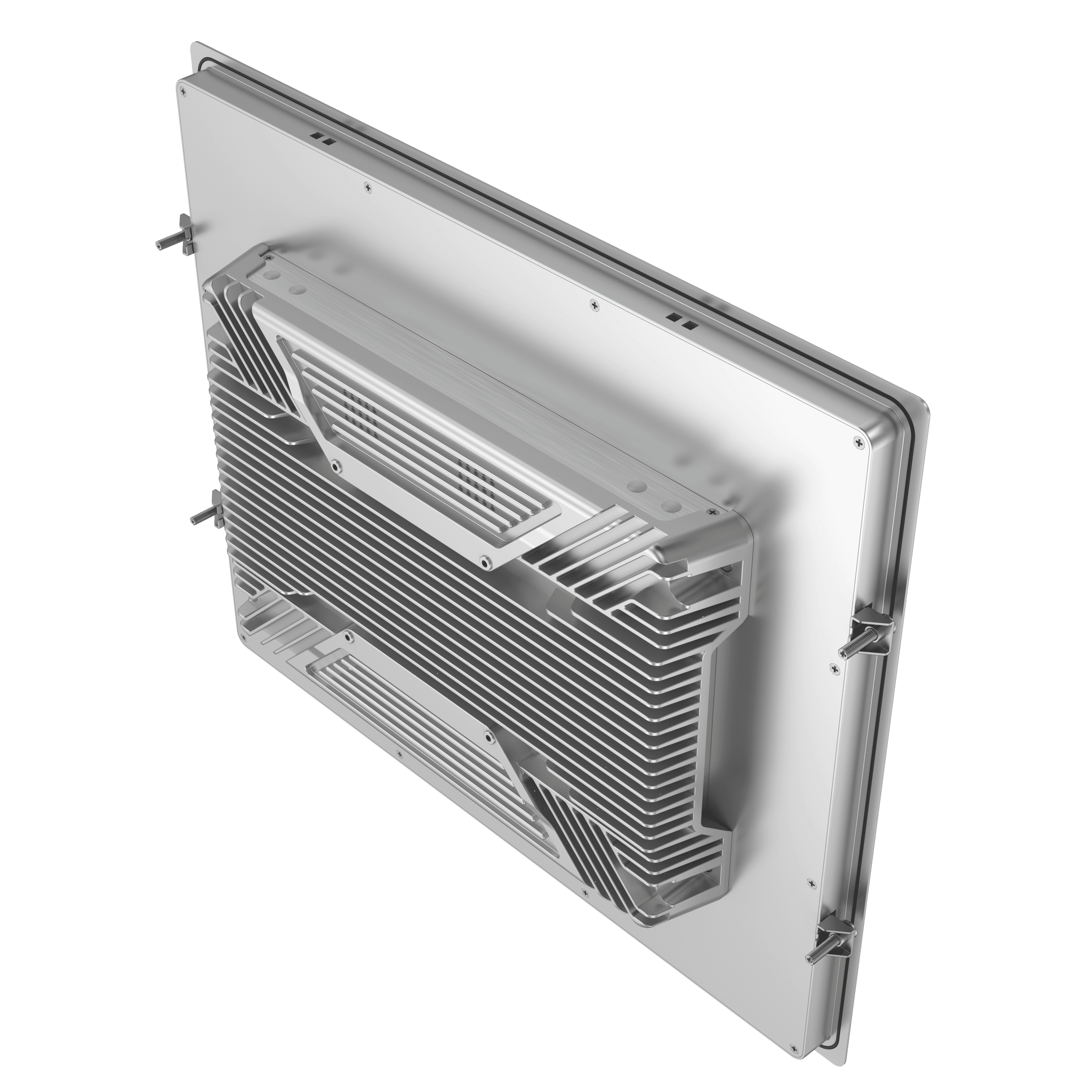

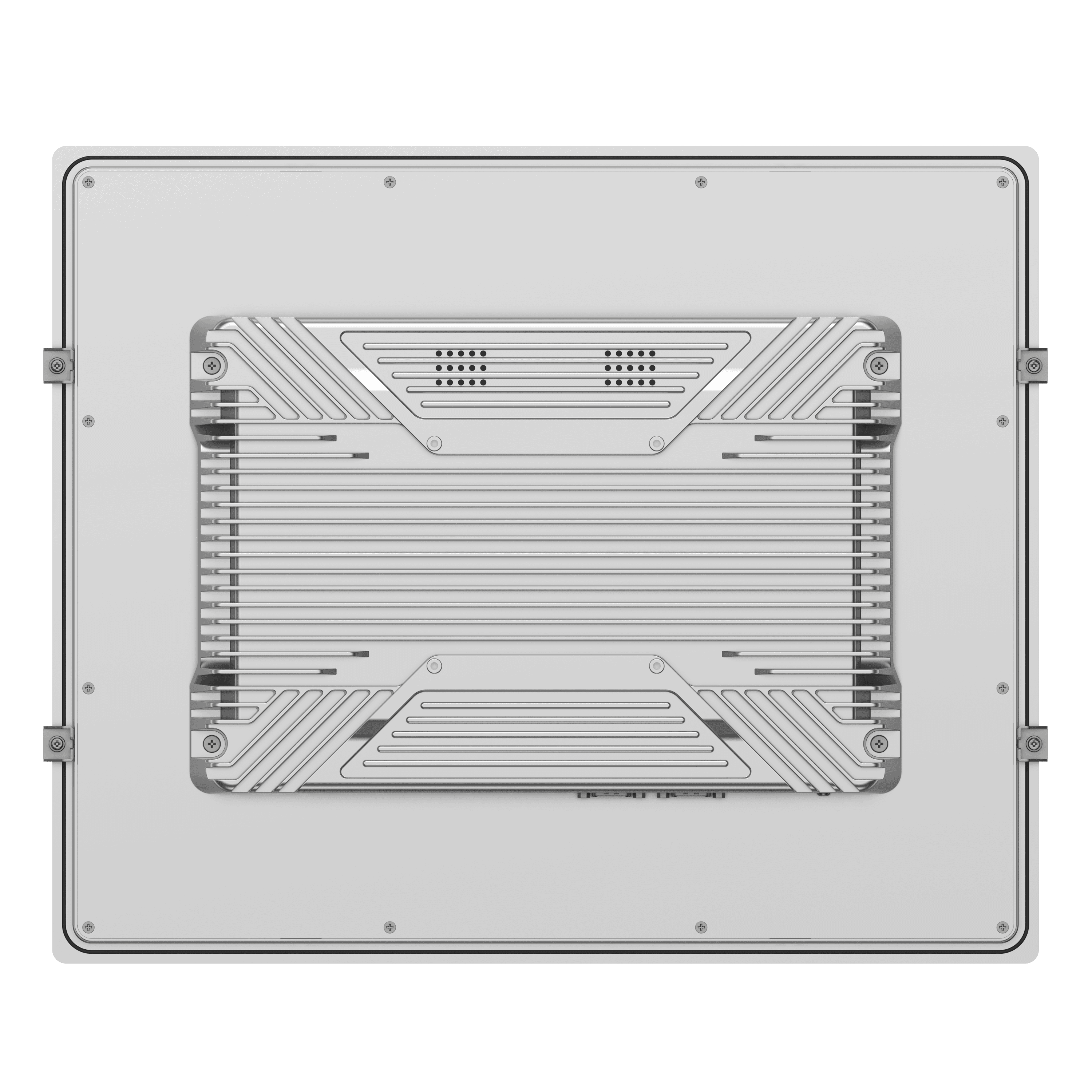

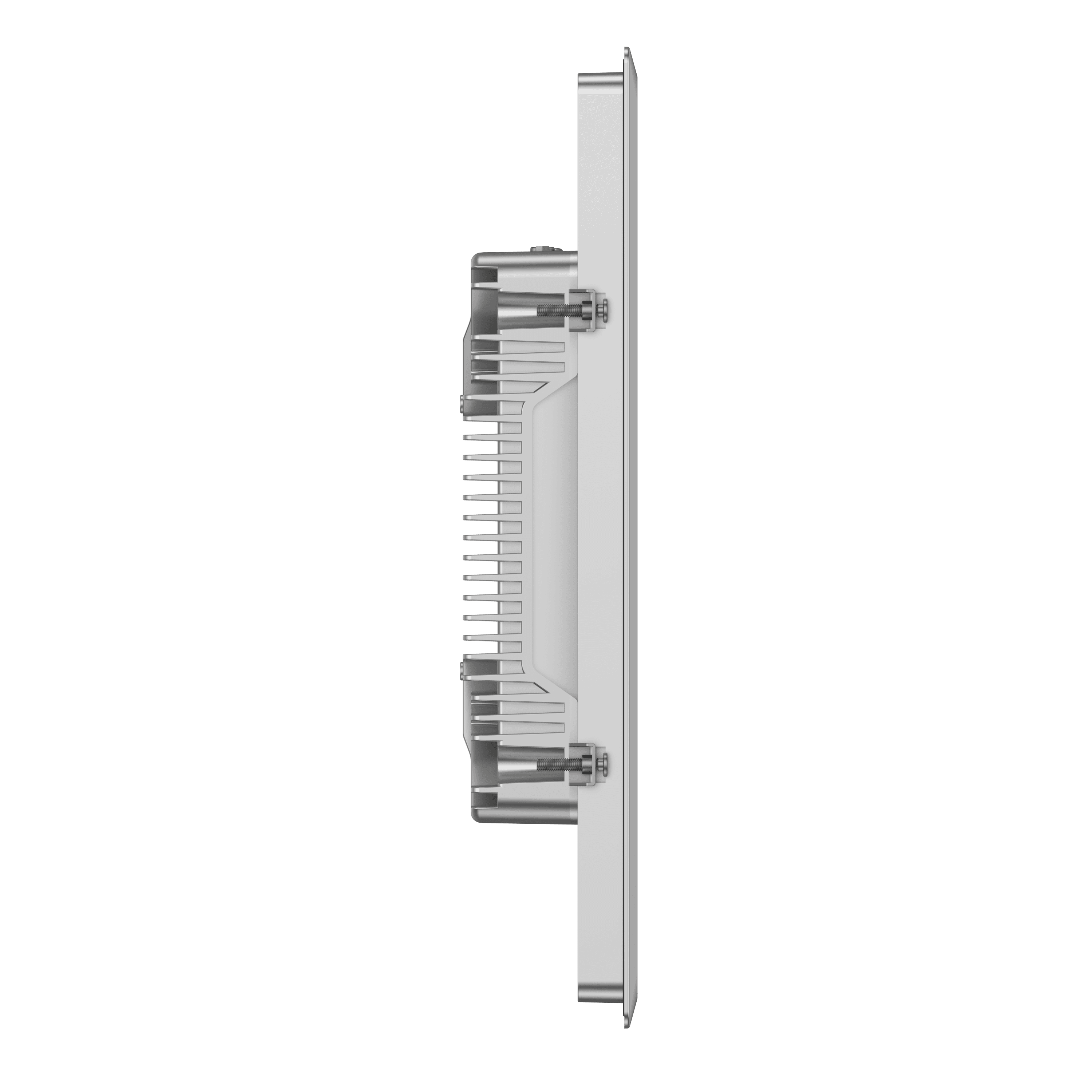

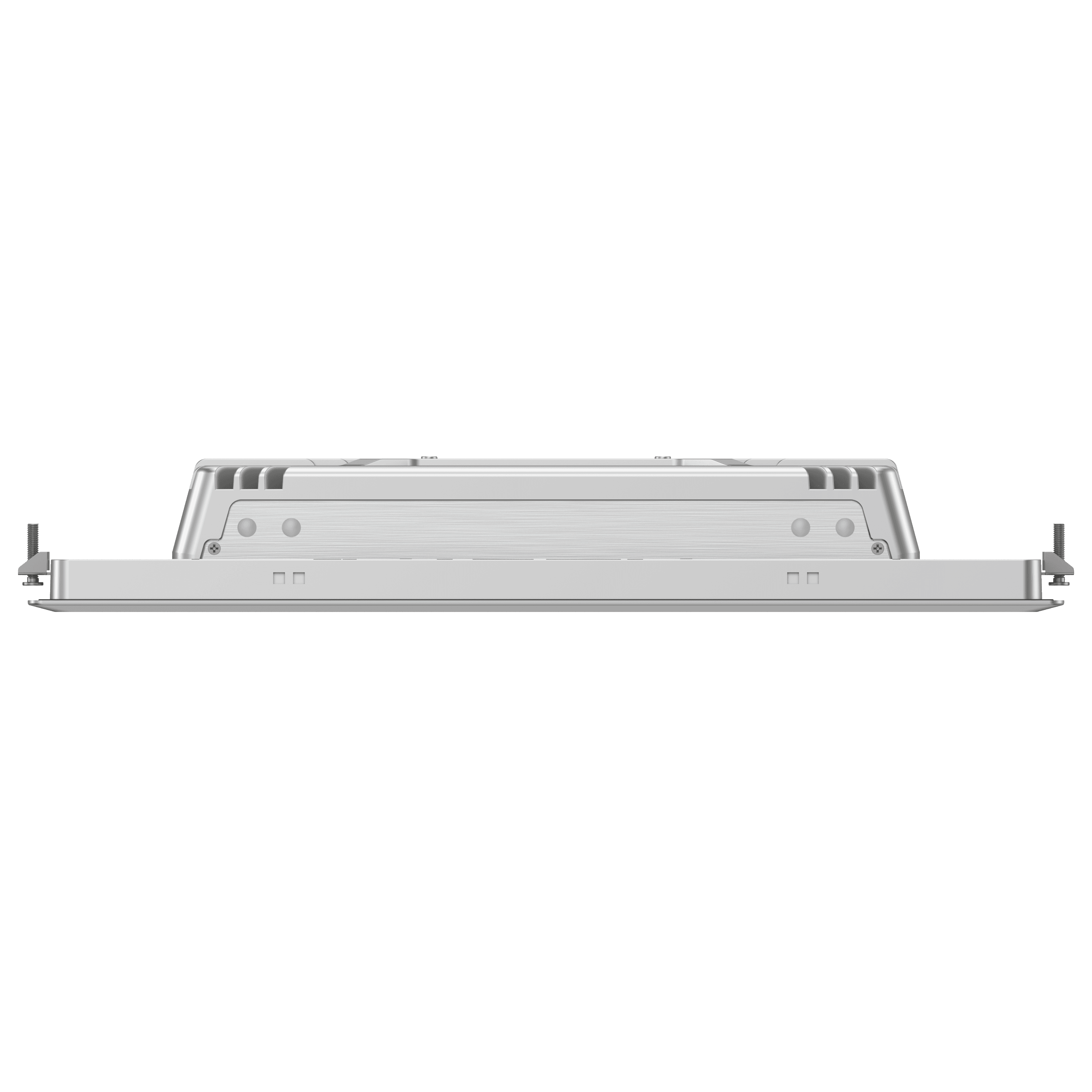

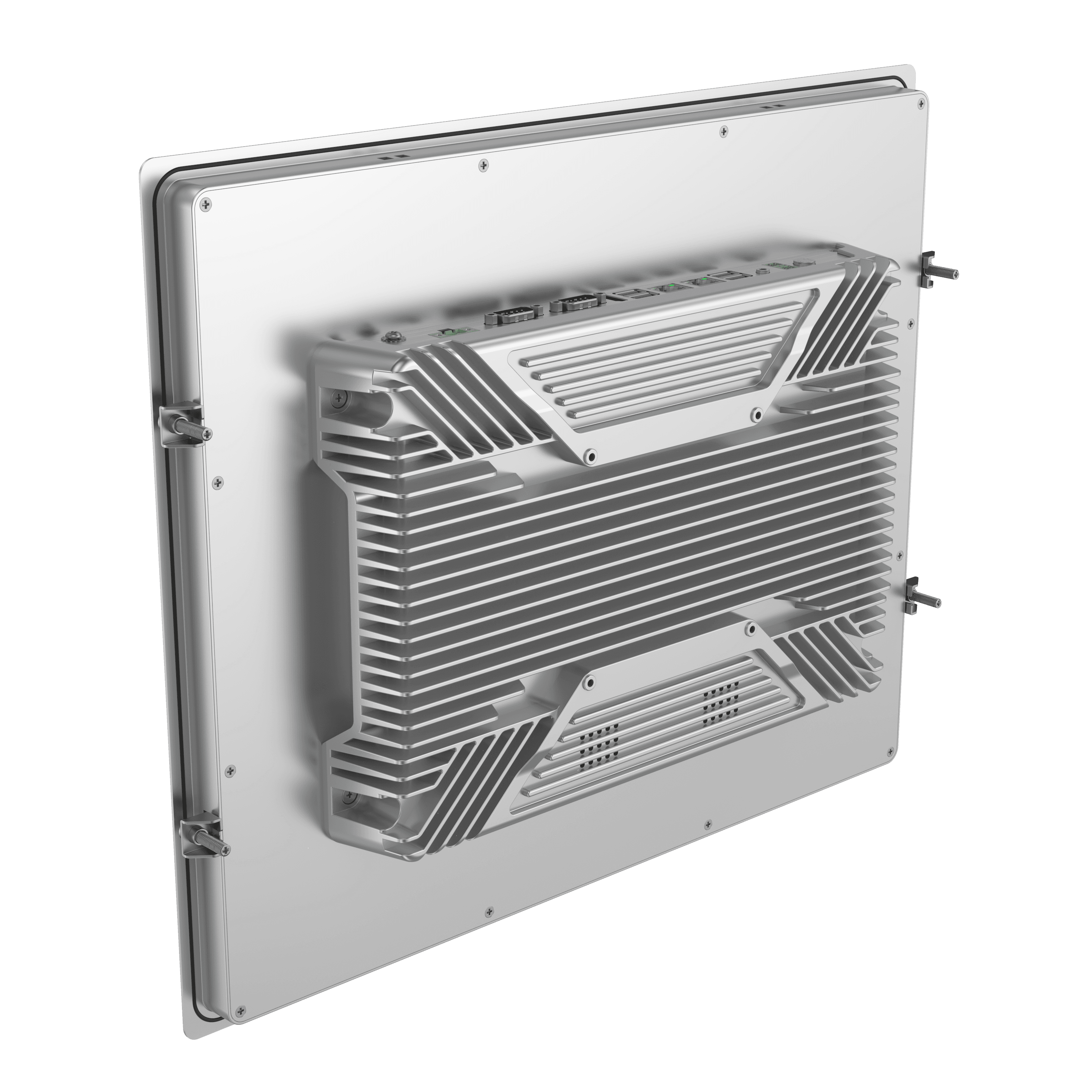

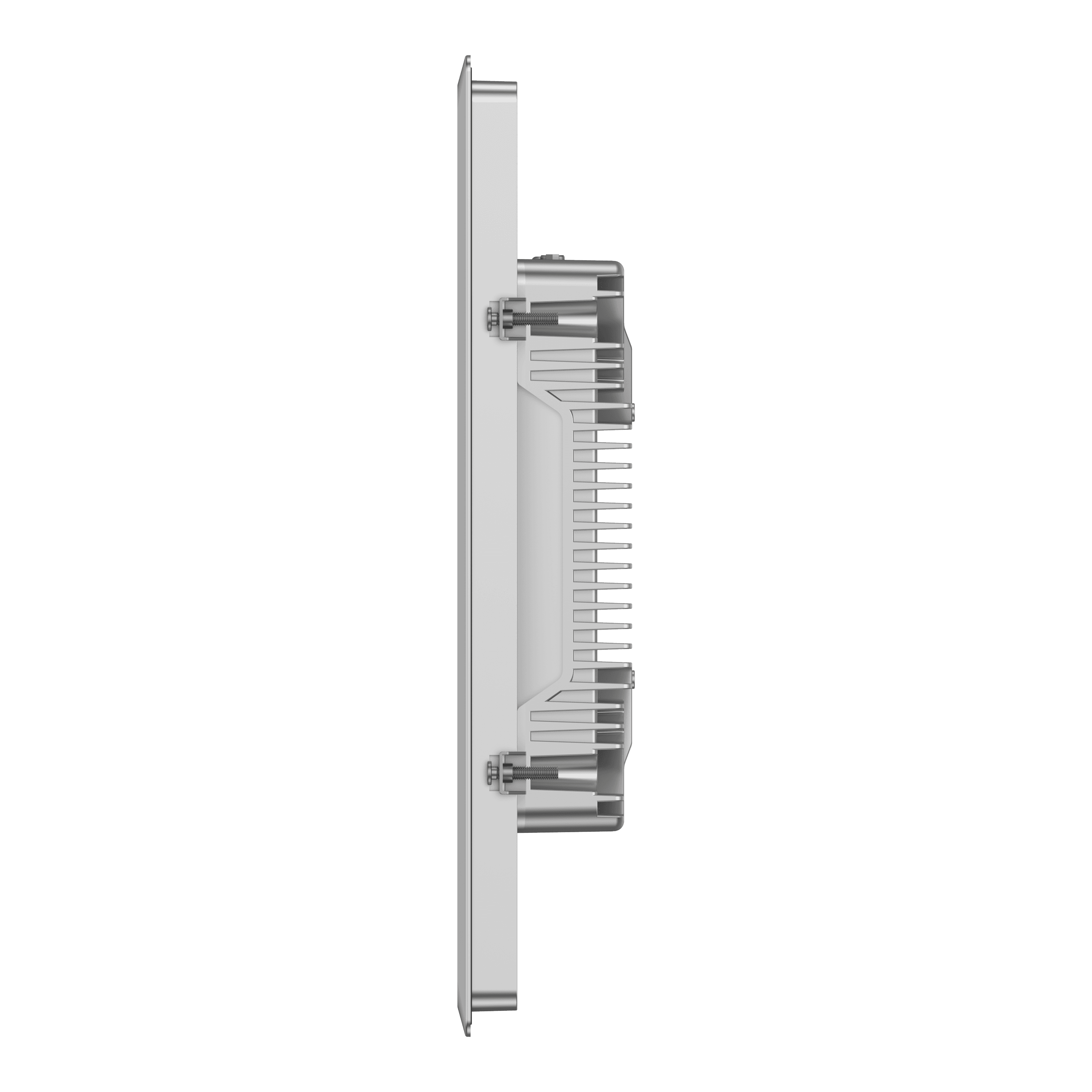

Fully enclosed die-cast aluminum alloy body (~66.5mm thick) provides excellent heat dissipation, dust protection, and vibration resistance.

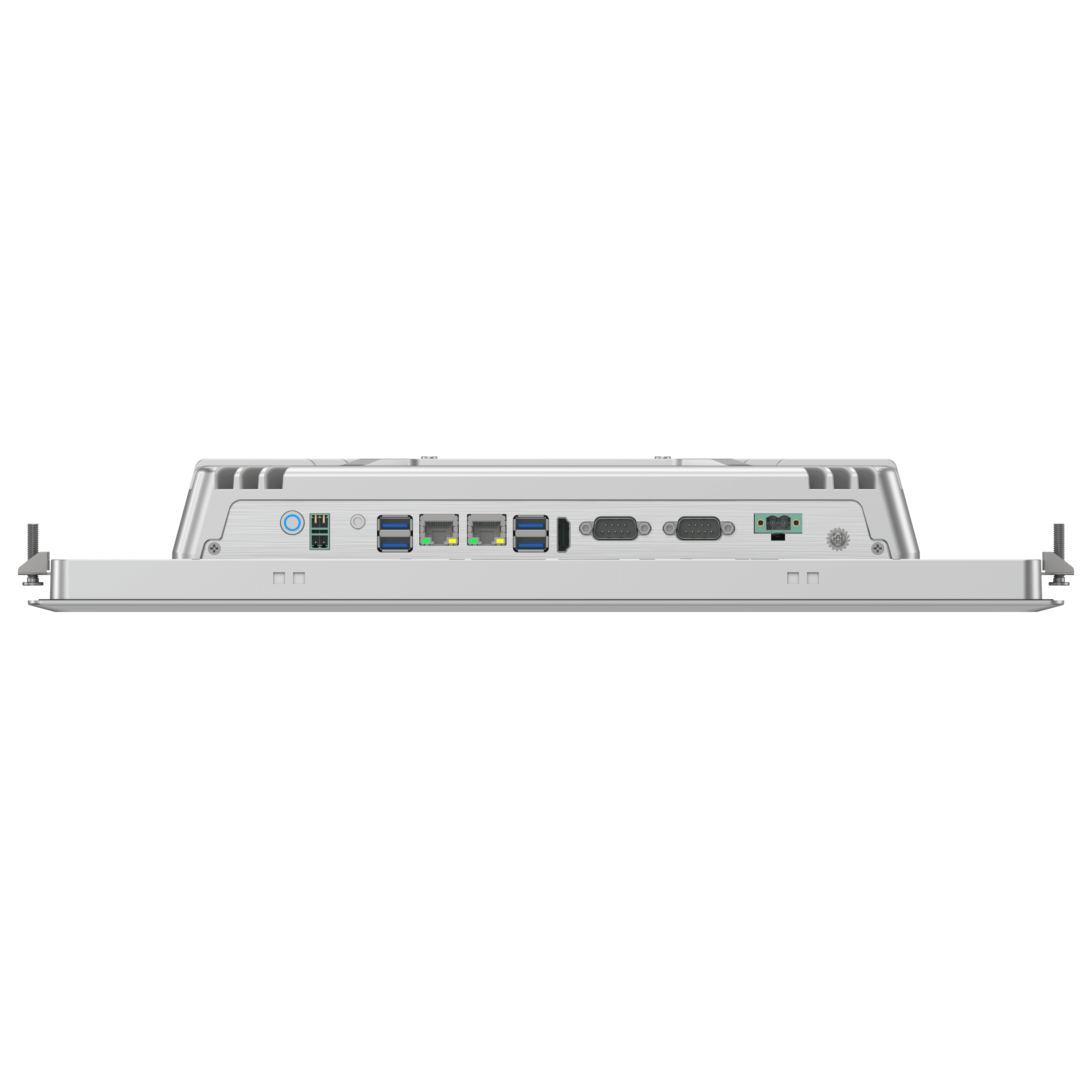

Equipped with 2x COM (Optional 6x), 2x Gigabit LAN, and 2x USB 3.0 ports for seamless device integration.
Supports DC 12V input with an option for 9-36V wide voltage, ensuring stability in fluctuating power conditions.
Optimized solutions for high-reliability industrial automation and control systems.
Powerful computing performance to support AI-driven quality inspection and recognition.
Low-latency processing at the edge for IoT data aggregation and real-time analysis.
PDF | 0.01 MB
This model is suitable for factory automation, machine vision, edge data collection, and gateway control. Based on the current specification set, it can be deployed in continuous 24/7 workloads under -20°C ~ 60°C conditions with Windows 10, Windows 11, Linux software stacks.
Category: All-in-one IPC. CPU: Intel® Core™ / Celeron® (Customizable 6th-13th Gen). Memory: Customizable (4GB - 16GB Optional). Network: 2x Gigabit Ethernet. Operating environment: -20°C ~ 60°C. These parameters make it easier to evaluate compatibility during industrial project selection.
This product currently provides 1 downloadable resources (drivers, manuals, or related files). Use these files for faster evaluation and integration.
LPC-FR190-W 19" Industrial Panel PC is mainly used for All-in-one IPC projects requiring reliable industrial computing and stable long-term operation.
Typical environments include Windows 10, Windows 11, Linux. Final support depends on the project image, driver stack, and peripheral requirements.
Yes. Interface expansion, branding, and project-specific customization are available for industrial deployments.
