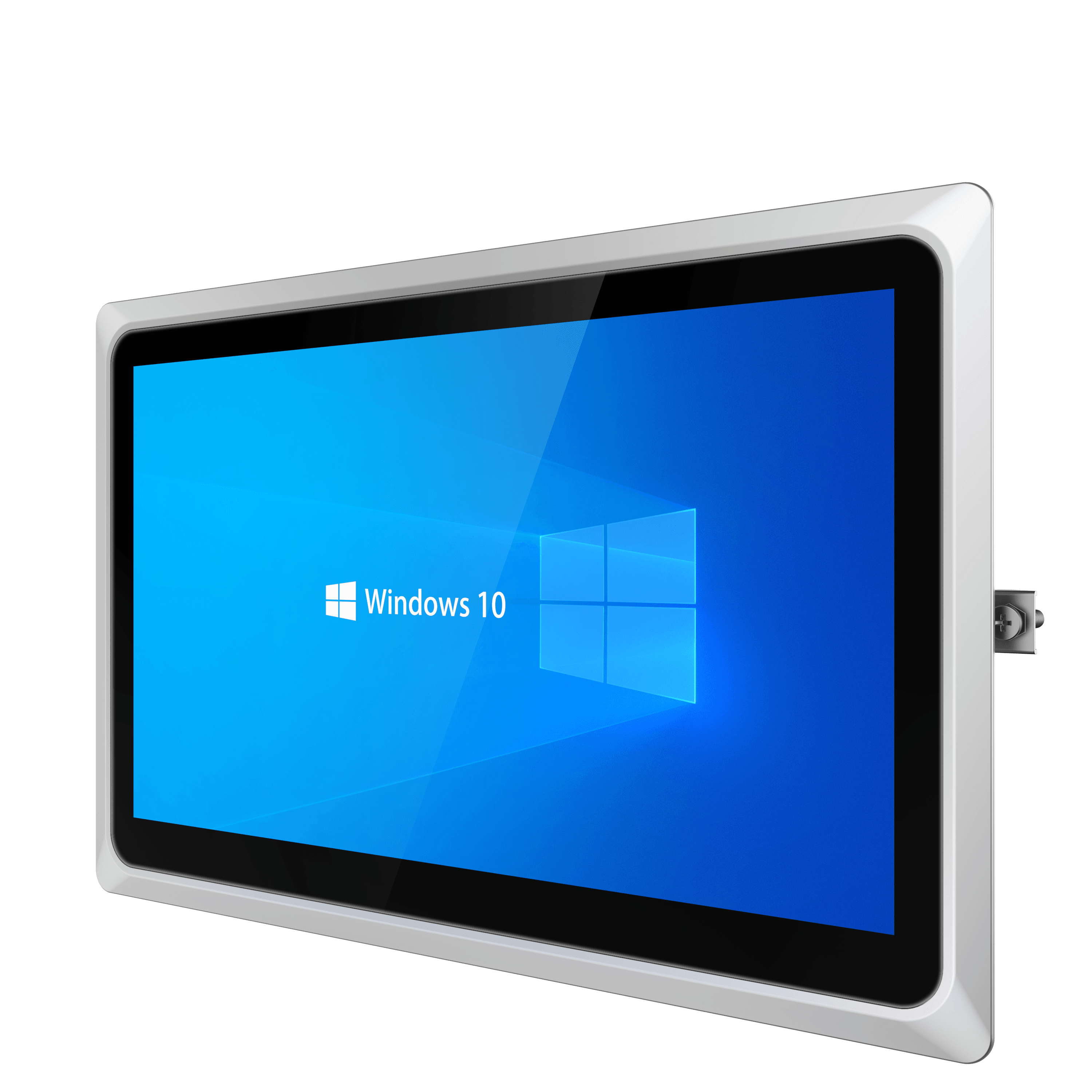

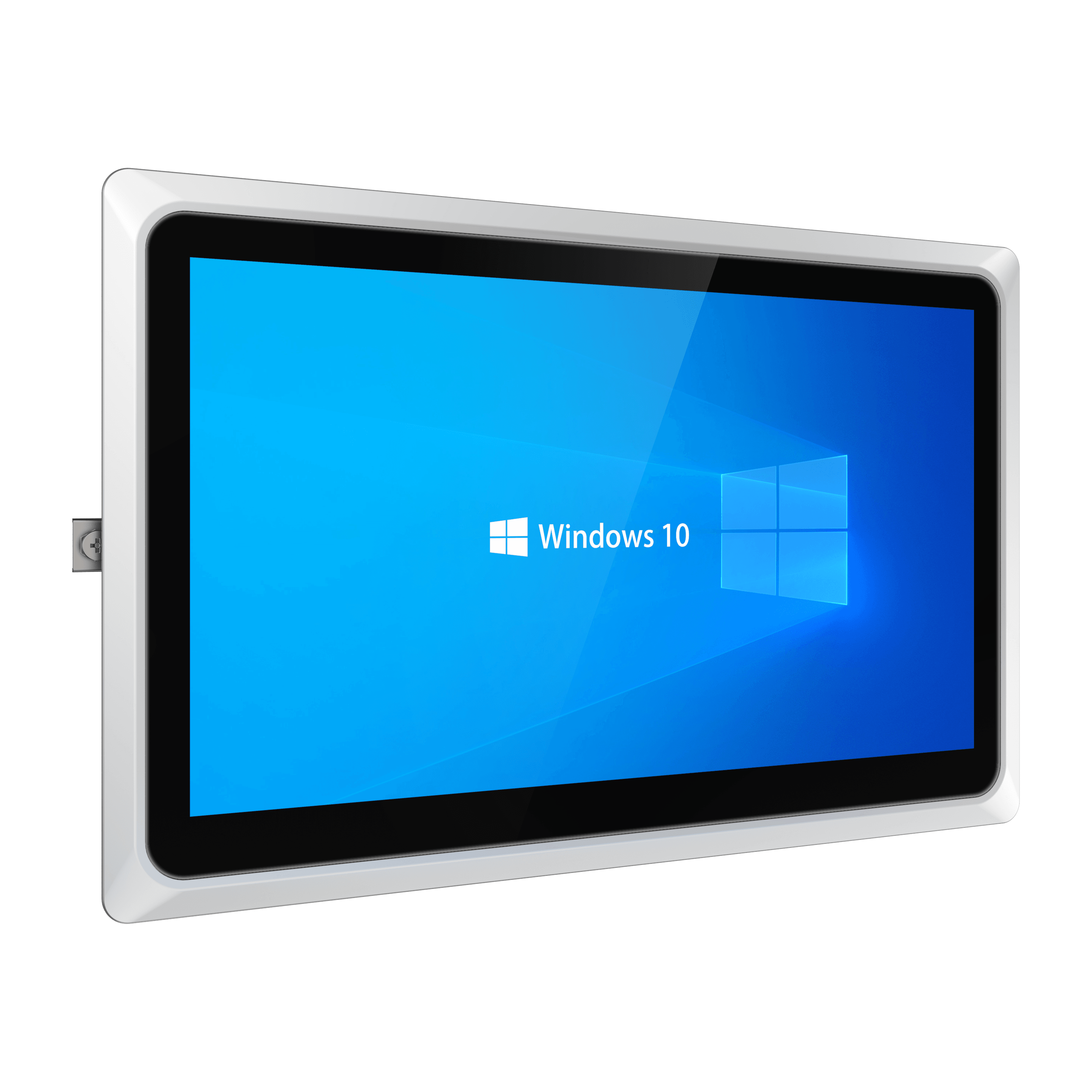

13.3" FHD Widescreen HMI. The LPC-KR133-W offers a crystal-clear 1920x1080 display in a rugged industrial tablet form factor. Powered by customizable Intel® processors (6th-13th Gen), it combines high-definition visuals with robust performance. Features include a 10-point capacitive touch screen, fanless aluminum cooling, and 9-36V wide voltage support, making it ideal for visual inspection and advanced control systems.
The LPC-KR133-W is a high-definition 13.3-inch industrial panel PC featuring a 1920x1080 FHD display. Designed for modern HMI applications requiring high visual clarity, it combines a rugged aluminum alloy chassis with customizable Intel® processing power (6th to 13th Gen). Its fanless design and IP65-rated front panel ensure reliable operation in demanding industrial environments.
| Parameter | Specification |
|---|---|
| Processor | Intel® Core™ / Celeron® (Customizable 6th-13th Gen) |
| Memory | Customizable (4GB - 16GB Optional) |
| Display | 13.3" TFT LCD (1920 x 1080 FHD Resolution) |
| Touch Screen | Capacitive Touch (10-point) / Resistive Optional |
| Storage | 1x M.2 SSD, 1x 2.5" HDD/SSD (Customizable) |
| Network | 2x Gigabit Ethernet (RJ45) |
| I/O Interface | 2x USB 3.0, 2x COM (Optional 6x COM), 1x HDMI |
| Expansion | 1x MiniPCIe (WiFi/BT), GPIO Optional |
| Power Input | DC 12V / 9V-36V (5A) |
| Dimensions | Refer to Size Chart (Approx 62mm thickness) |
| OS Support | Windows 10/11, Linux |

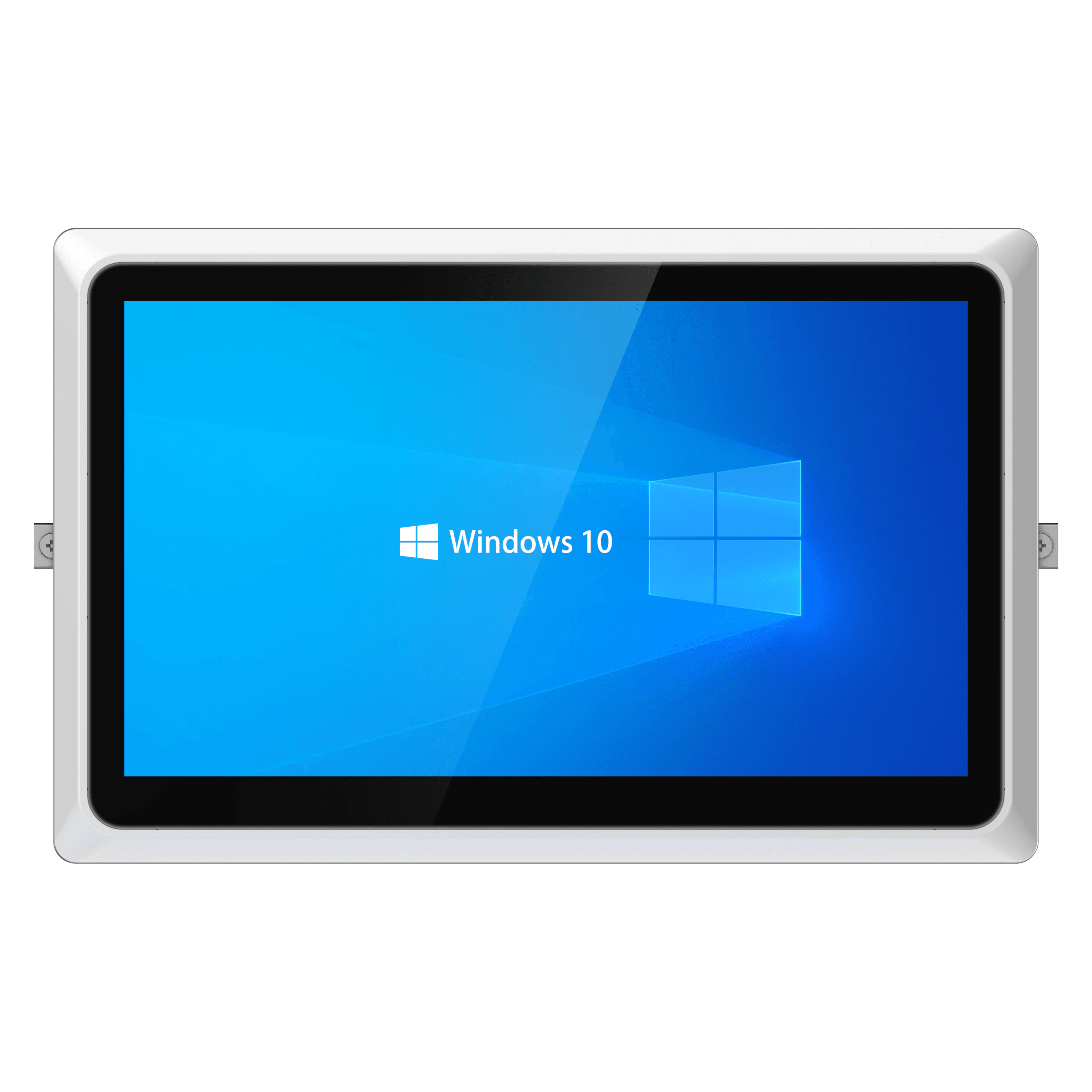

Features a 13.3-inch widescreen LCD with 1920x1080 Full HD resolution for superior image detail.
Compatible with a wide range of Intel® Core™ and Celeron® processors (6th to 13th Gen) to meet specific performance needs.

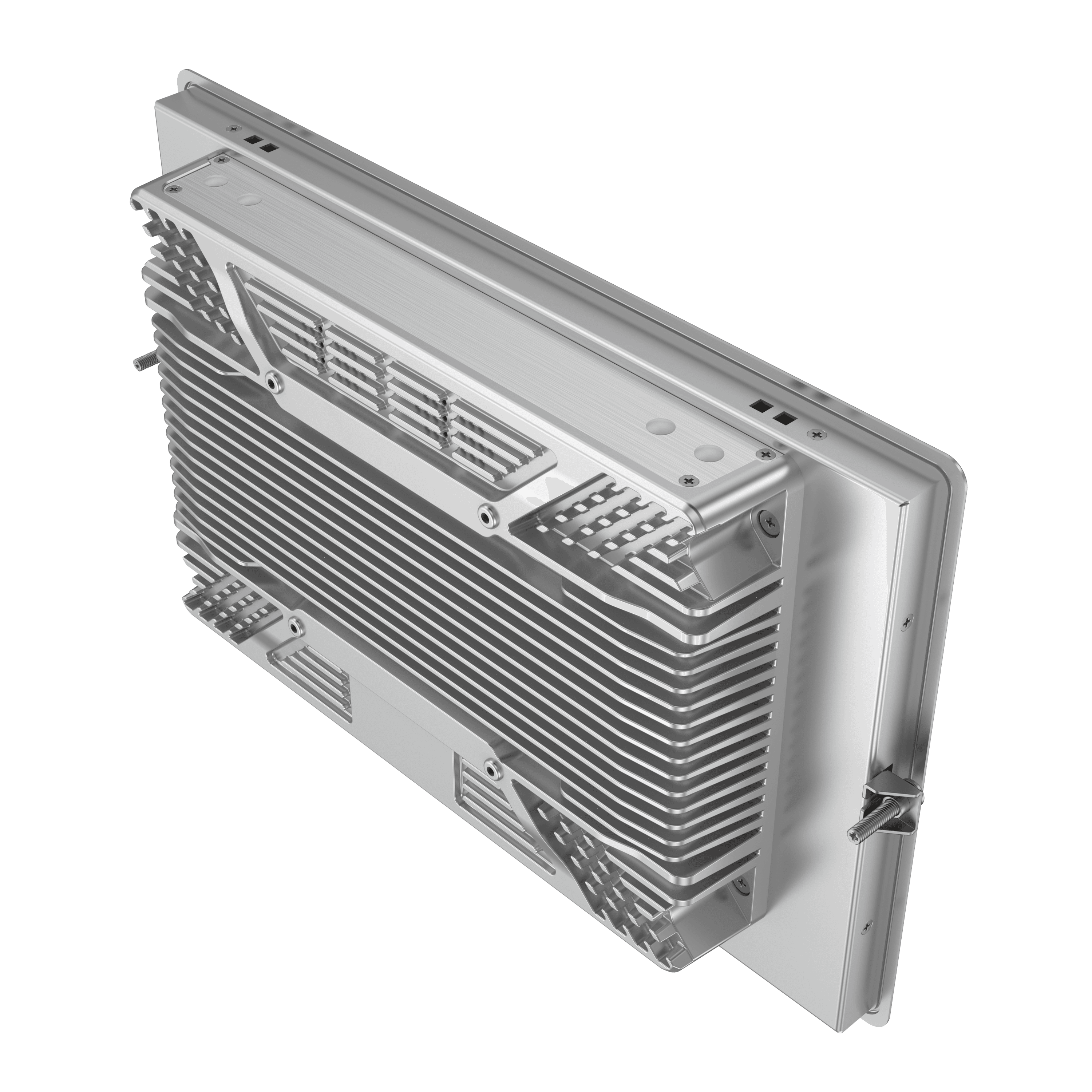

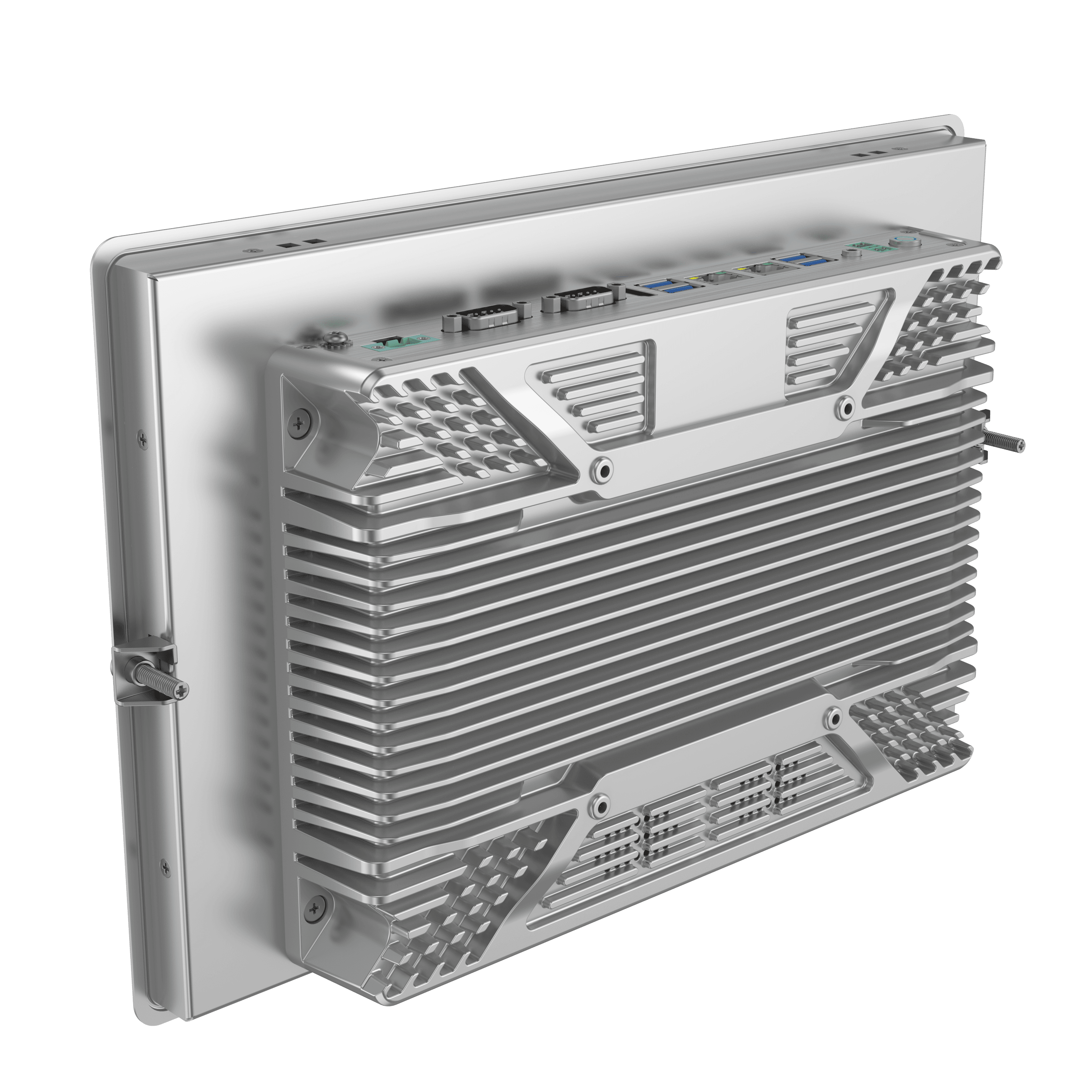

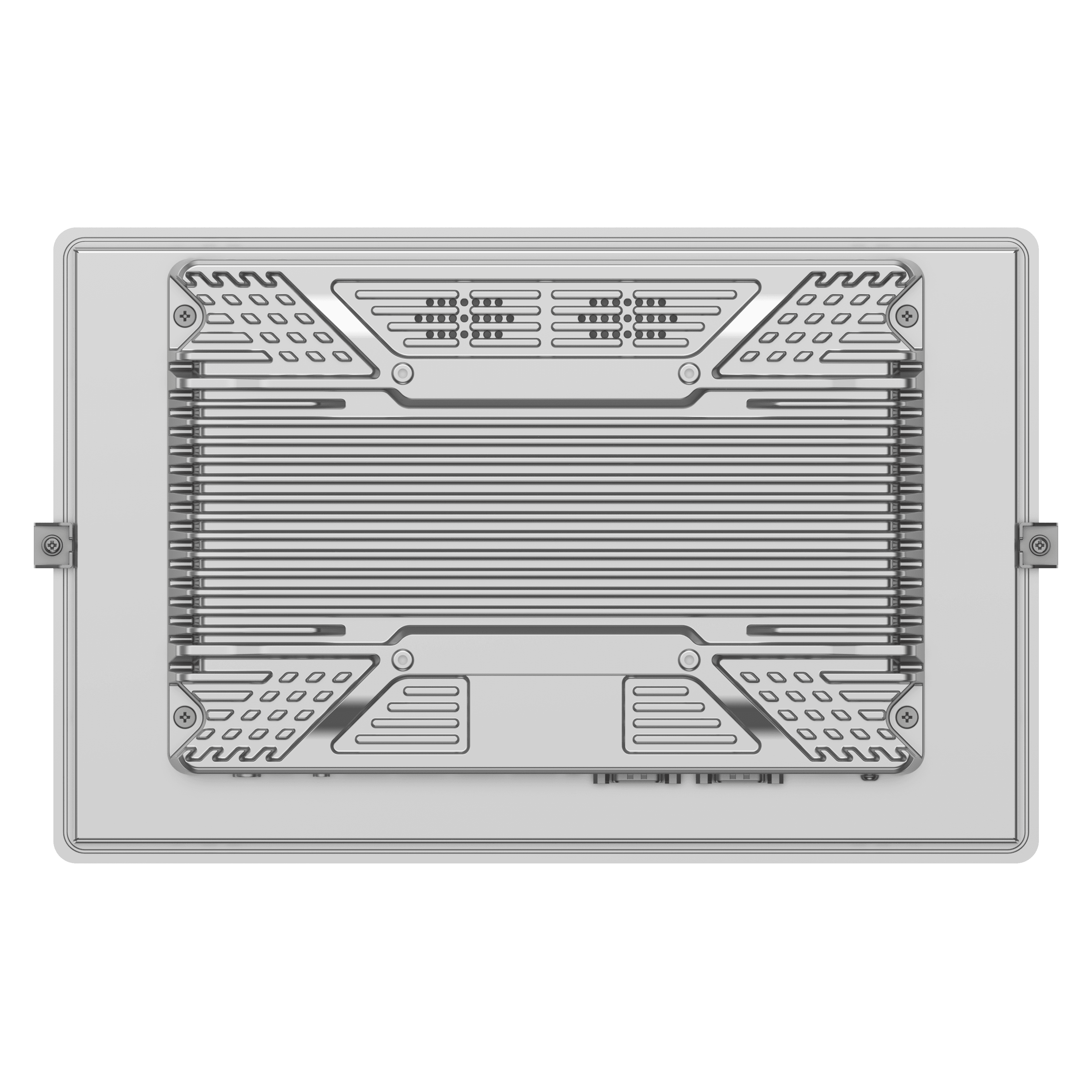

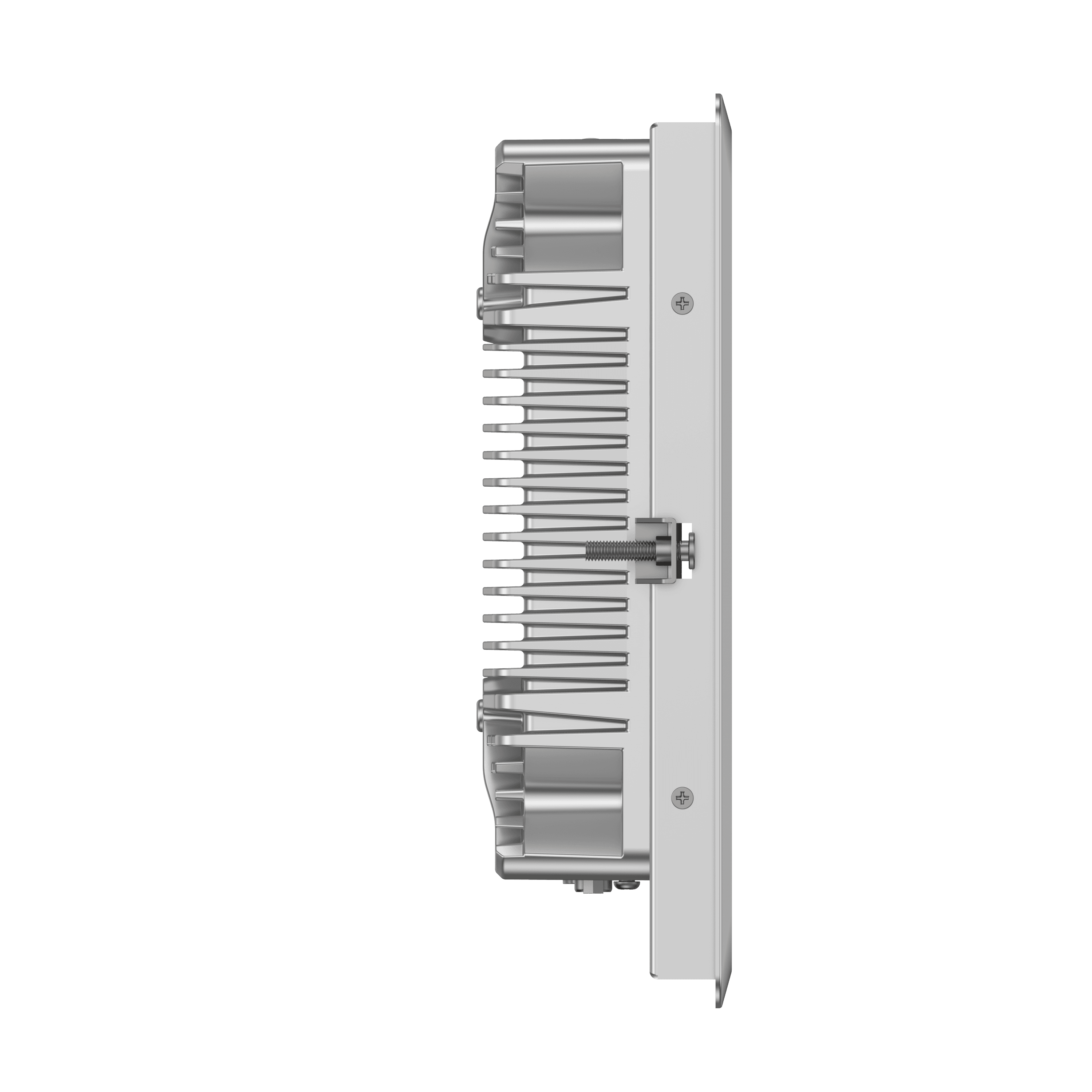

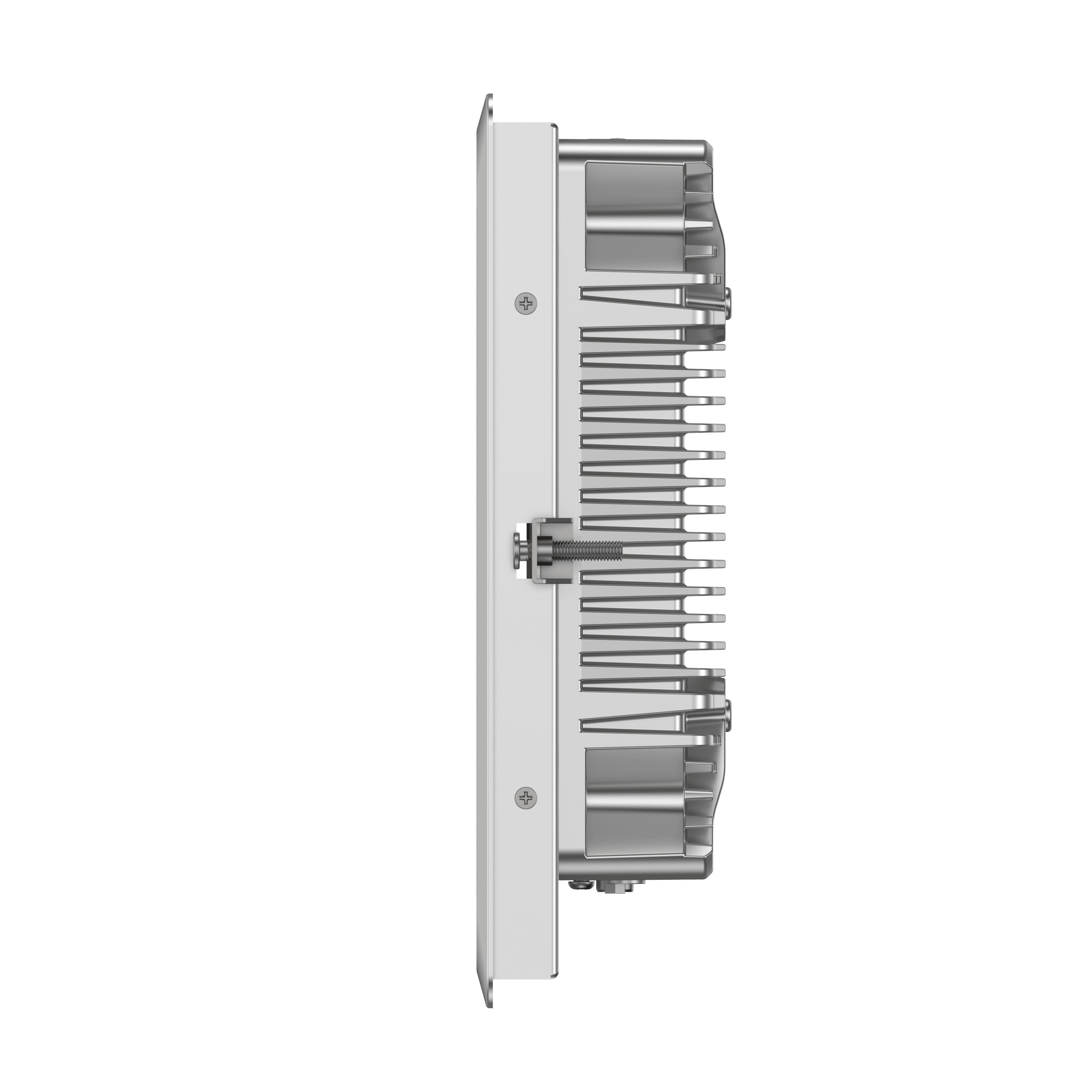

Fully enclosed die-cast aluminum alloy body (~62mm thick) provides excellent heat dissipation, dust protection, and vibration resistance.

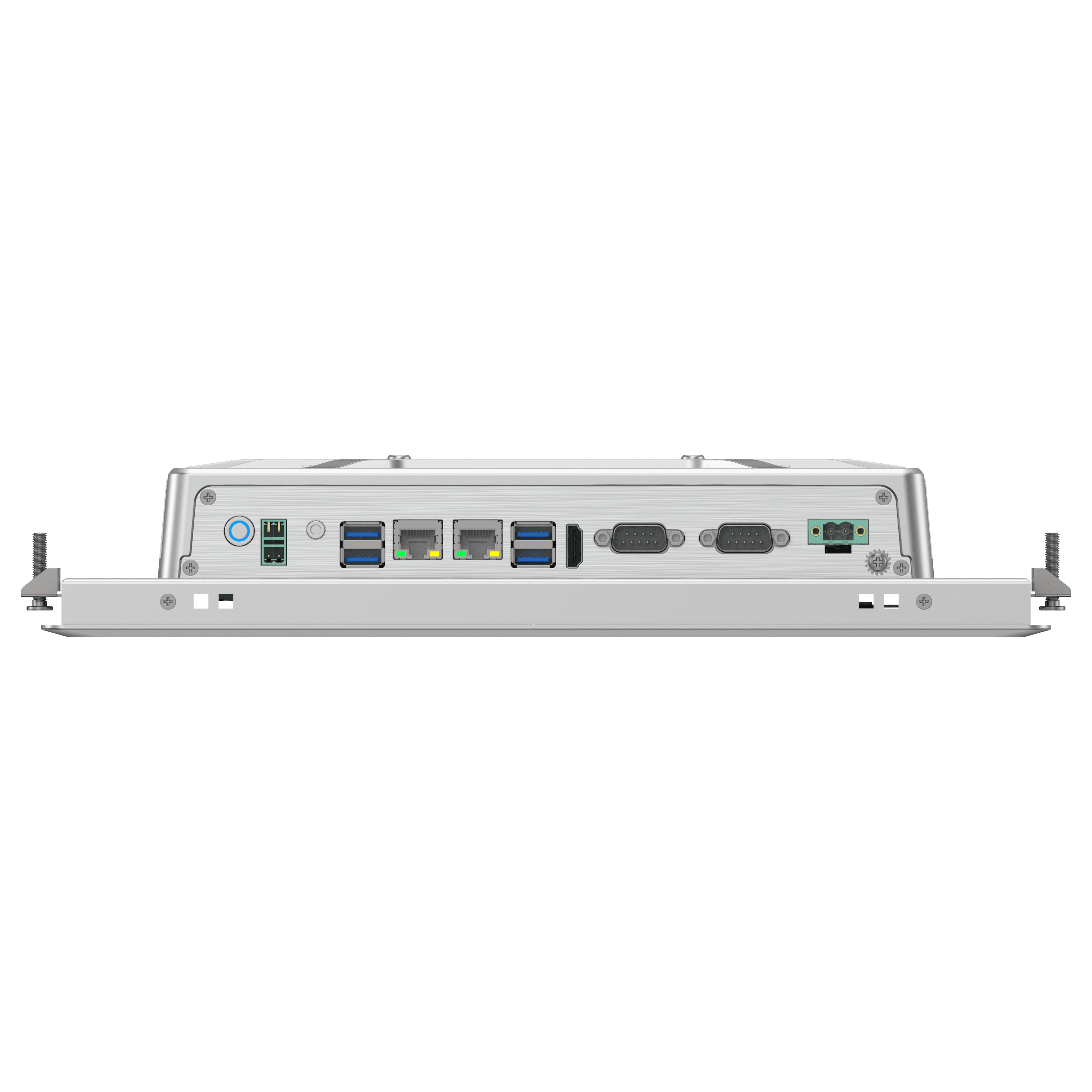

Equipped with 2x COM (Optional 6x), 2x Gigabit LAN, and 2x USB 3.0 ports for seamless device integration.
Supports DC 12V input with an option for 9-36V wide voltage, ensuring stability in fluctuating power conditions.
Optimized solutions for high-reliability industrial automation and control systems.
Powerful computing performance to support AI-driven quality inspection and recognition.
Low-latency processing at the edge for IoT data aggregation and real-time analysis.
PDF | 0.01 MB
This model is suitable for factory automation, machine vision, edge data collection, and gateway control. Based on the current specification set, it can be deployed in continuous 24/7 workloads under -20°C ~ 60°C conditions with Windows 10, Windows 11, Linux software stacks.
Category: All-in-one IPC. CPU: Intel® Core™ / Celeron® (Customizable 6th-13th Gen). Memory: Customizable (4GB - 16GB Optional). Network: 2x Gigabit Ethernet. Operating environment: -20°C ~ 60°C. These parameters make it easier to evaluate compatibility during industrial project selection.
This product currently provides 1 downloadable resources (drivers, manuals, or related files). Use these files for faster evaluation and integration.
LPC-KR133-W 13.3" FHD Industrial Panel PC is mainly used for All-in-one IPC projects requiring reliable industrial computing and stable long-term operation.
Typical environments include Windows 10, Windows 11, Linux. Final support depends on the project image, driver stack, and peripheral requirements.
Yes. Interface expansion, branding, and project-specific customization are available for industrial deployments.
